Factory Direct Conveyor Impact Beds for Superior Impact Absorption and Belt Protection

YUFENG Conveyor Impact Bed is a heavy-duty belt protection device designed for conveyor loading points where bulk materials fall from height. Unlike traditional impact rollers that leave gaps between rotating components, the impact bed provides continuous support under the conveyor belt through a combination of UHMW-PE slider bars, elastic buffer modules and reinforced steel structures.

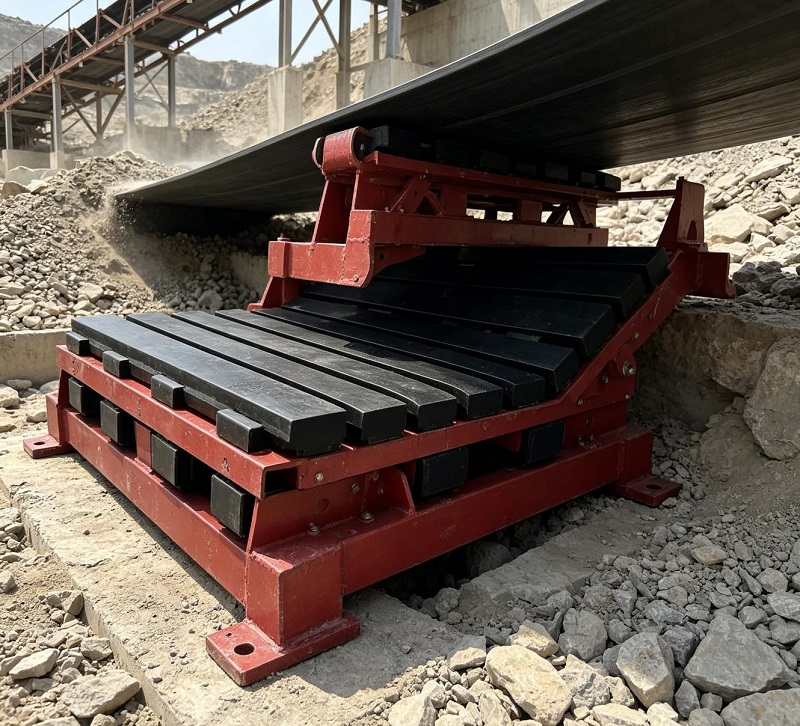

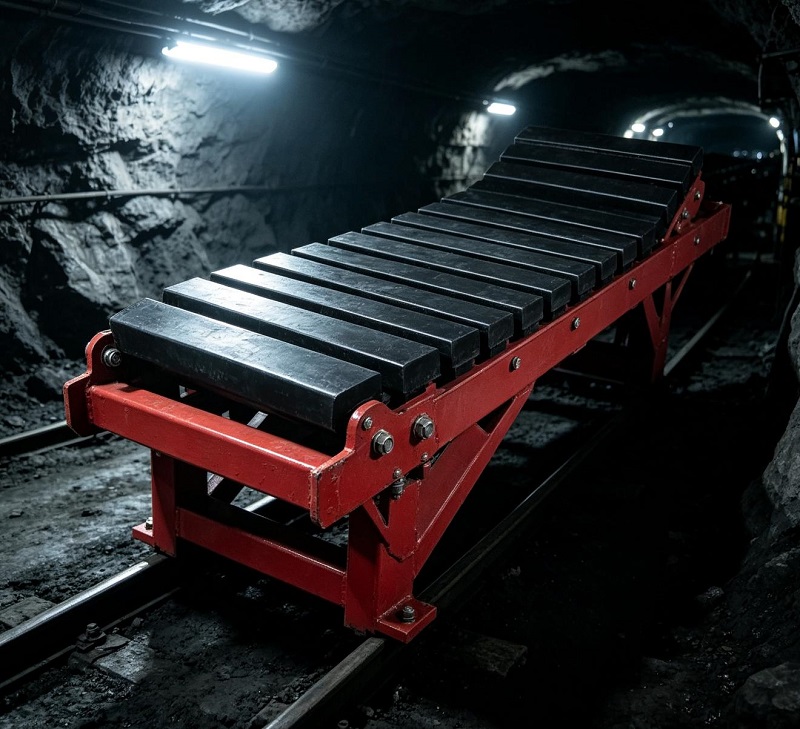

Installed mainly below the feeding zone of mining conveyors, quarry crushing lines, cement plants, ports and bulk material handling systems, this solution effectively absorbs impact energy from large-size materials, reduces belt puncture, longitudinal tearing and surface damage. YUFENG manufactures complete impact protection systems according to international requirements including CEMA conveyor standards, ISO9001:2015 quality management system, CE, MSHA and TUV related certifications.

The integrated structure allows the conveyor belt to pass smoothly over the supporting surface while maintaining low friction movement. By replacing multiple impact idlers with a stable sliding support platform, YUFENG Conveyor Impact Bed helps reduce maintenance frequency and improves the operating reliability of heavy-duty conveying equipment.

The working principle of an impact bed is based on energy absorption and surface protection. When large stones, coal blocks or mineral materials drop onto the conveyor belt, the upper UHMW-PE sliding bars provide continuous contact support, while the rubber buffer modules underneath absorb the vertical impact force.

This layered structure prevents the belt from being pressed into roller gaps, which is one of the main causes of longitudinal tearing in mining conveyor systems. The low-friction sliding surface also reduces resistance between the belt cover and support system, helping maintain stable belt movement under heavy loading conditions.

YUFENG provides various impact protection solutions according to material characteristics, drop height, conveyor capacity and environmental requirements. Different structures allow customers to select suitable solutions instead of using a single standard design for all applications.

YUFENG Conveyor Impact Bed covers a wide range of conveyor systems with belt widths from 500mm to 2400mm. The standard structure is compatible with DTII, TD75 and CEMA conveyor designs, allowing easy replacement of traditional impact roller stations without major modification of existing conveyor frameworks.

The impact bed length, support height, slider quantity and buffer stiffness can be customized according to material characteristics, feeding height and conveyor capacity. It is suitable for fabric conveyor belts, steel cord conveyor belts, sidewall conveyor belts and other heavy-duty conveying systems.

YUFENG understands that conveyor loading conditions vary greatly between industries. Therefore, every Conveyor Impact Bed can be customized according to actual operating parameters instead of using fixed standard specifications.

Many mining and bulk material handling companies compare different suppliers before purchasing conveyor protection equipment. YUFENG focuses on structural reliability, material performance and long-term operating stability.

For high-impact feeding areas, YUFENG recommends extending the protected support length according to material size and drop height to achieve better belt protection.

YUFENG provides integrated conveyor system supporting products for mining, quarry, cement, port and bulk material handling projects. Customers can purchase matching components together to simplify supply chain management and reduce coordination costs between different suppliers.

The supporting product range includes conveyor belts, conveyor idlers, impact rollers, return rollers, self-aligning rollers, belt cleaners, conveyor skirt rubber, wear-resistant rubber sheets and other conveyor accessories. All products can be matched according to conveyor width, material characteristics and operating conditions.

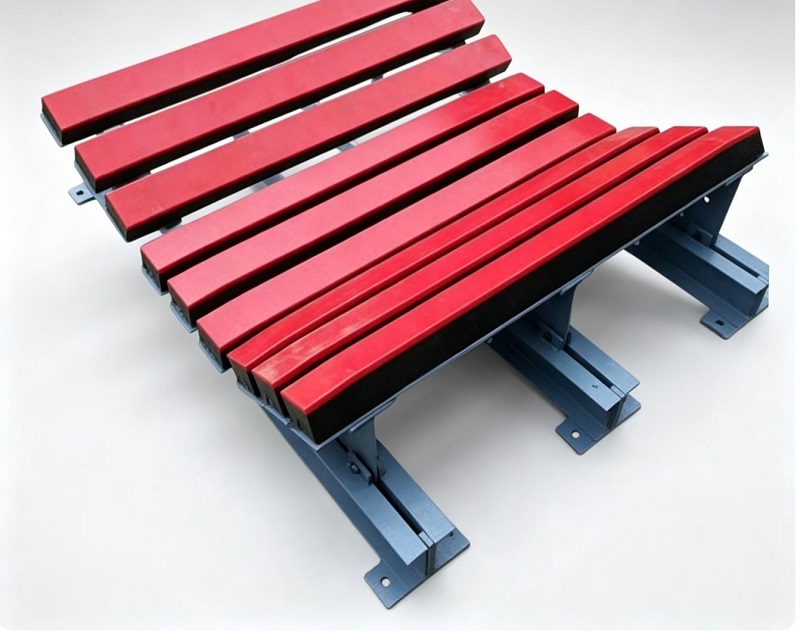

YUFENG strictly controls raw material selection during production. Only qualified materials with stable physical performance are used for manufacturing, ensuring every Conveyor Impact Bed maintains reliable operation under continuous impact conditions.

Before assembly, each batch of UHMW-PE bars, rubber modules and steel components undergoes inspection for wear resistance, compression performance, dimensional accuracy and surface quality.
