Customized Steel Cord Conveyor Belt for Heavy Duty Mining and Bulk Material Handling
YUFENG Steel Cord Conveyor Belt is designed for ultra-long distance and high-capacity bulk material conveying systems where traditional fabric conveyor belts cannot meet the requirements of tensile strength and dimensional stability. Also known as ST series steel wire rope core conveyor belt, it uses parallel arranged hot-dip galvanized steel cords as the longitudinal reinforcement layer, combined with high-adhesion core rubber and wear-resistant cover rubber through high-temperature vulcanization.
Compared with EP fabric conveyor belts, Steel Cord Conveyor Belt provides significantly lower elongation, higher tensile strength and stronger load-bearing capability, making it suitable for large-scale mining, ports, cement plants, power stations and other continuous conveying projects.
YUFENG manufactures full-series steel cord belts according to DIN22131, ISO15236 and GB/T9770 standards. With uniform steel cord arrangement, reliable steel-rubber adhesion technology and customized rubber compounds, YUFENG provides stable conveying solutions for demanding industrial applications.
Designed for Heavy-Duty Long Distance Conveying
The core advantage of Steel Cord Conveyor Belt is its ability to maintain stable operation under extremely high tension and long conveying distances. The internal galvanized steel cord structure provides excellent tensile resistance and reduces permanent elongation during continuous operation.
For mining and bulk transportation projects requiring several kilometers of conveying distance, steel cord belts help reduce frequent tension adjustment, improve conveying efficiency and support higher transportation capacity.

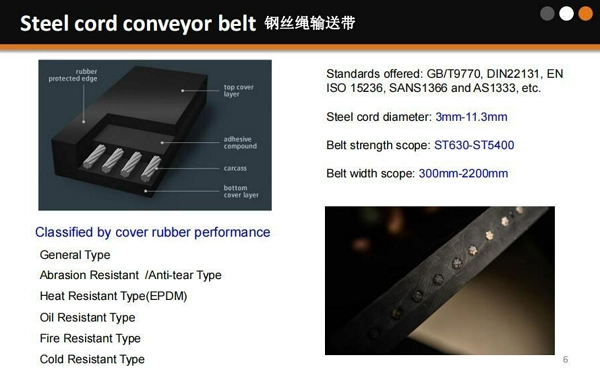

Steel Cord Belt Types
Standard Steel Cord Belt
Standard Steel Cord Belt uses longitudinal galvanized steel cords as the main tensile reinforcement. It provides ultra-low stretch performance, high tensile strength and reliable operation for general heavy-duty conveying applications such as mines, ports and bulk material transportation systems.
Anti-Tear Steel Cord Belt
Anti-Tear Steel Cord Belt adds a transverse steel wire mesh breaker layer between the steel cords and rubber cover. This structure helps prevent longitudinal tearing caused by sharp materials, falling rocks or high-impact feeding conditions, making it suitable for quarry crushing stations and high-risk loading areas.

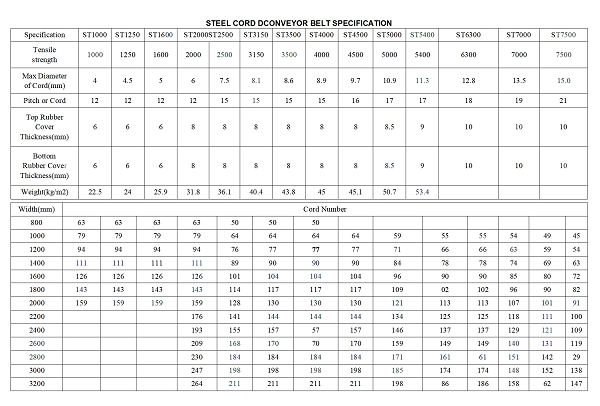

Technical Highlights
| Item | Specification |
|---|---|
| Steel Cord Grade | ST630 – ST6300 |
| Belt Width | 500mm – 2600mm |
| Steel Cord Material | Hot-dip galvanized high tensile steel wire rope |
| Permanent Elongation | ≤0.25% |
| Cover Rubber Thickness | Top 6–12mm / Bottom 4–8mm |
| Standard | DIN22131 / ISO15236 / GB/T9770 |
| Application | Mining, port, cement, power plant and heavy bulk conveying |
Customized Rubber Compounds for Different Working Conditions
Different industrial environments require different cover rubber performance. YUFENG provides customized steel cord conveyor belts according to material characteristics, temperature conditions and conveying environment.
Wear Resistant
Designed for normal bulk transportation of coal, ore, sand and limestone. The wear-resistant rubber cover provides reliable protection against continuous material abrasion under long-distance conveying conditions.
Flame Retardant Anti-Static
Manufactured for underground mining applications, this type meets MT/T668 coal mine safety requirements and provides flame retardant and anti-static performance for safer underground transportation.
High Temperature Resistant
Using heat-resistant EPDM rubber compound, this belt is suitable for conveying high-temperature materials such as cement clinker and steel plant slag with operating temperatures up to 180℃.
Oil and Corrosion Resistant
With NBR-based oil-resistant cover rubber, this belt provides better resistance against mineral oil, chemical liquids and corrosive environments in chemical plants and coastal terminals.
Low Temperature Resistant
The cold-resistant rubber formula maintains flexibility in low-temperature environments down to -40℃, making it suitable for outdoor conveying systems in cold regions.
Transverse Anti-Tear
The reinforced transverse steel mesh structure helps prevent crack expansion caused by sharp materials and heavy impact, improving belt reliability in crusher feeding applications.

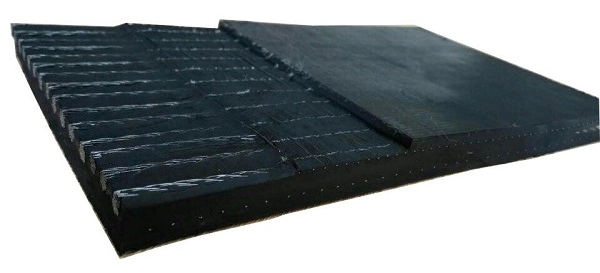

Material Structure and Manufacturing Quality
YUFENG Steel Cord Conveyor Belt uses selected industrial-grade raw materials to ensure stable performance during long-term operation.
| Component | Material |
|---|---|
| Longitudinal Reinforcement | 7×7 / 7×19 hot-dip galvanized high tensile steel cord |
| Core Bond Rubber | High-adhesion steel-rubber bonding compound |
| Cover Rubber | Virgin natural rubber / NBR / EPDM synthetic rubber |
| Anti-Tear Layer | High-strength transverse steel wire mesh |
Every batch of steel cord and rubber materials is tested for tensile strength, cord pull-out force and aging performance before entering production. Unqualified materials are rejected to maintain consistent belt quality.

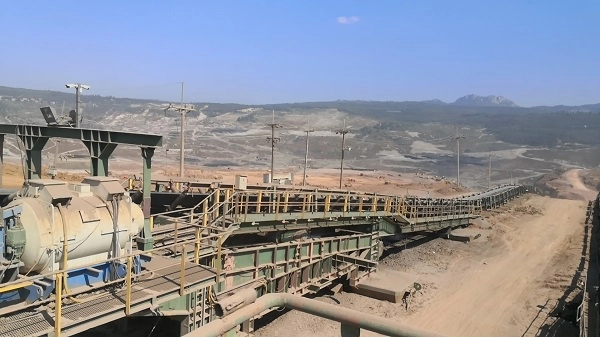

Applications
YUFENG Steel Cord Conveyor Belt is widely used in industries requiring continuous heavy material transportation.
- Open-pit mining transportation systems
- Port bulk material loading and unloading
- Cement plant raw material conveying
- Steel plant slag transportation
- Power plant coal handling systems
- Long-distance pipe and sidewall conveying systems
Technical Performance Data
| Performance Item | Standard Requirement | Test Standard |
|---|---|---|
| Permanent Elongation Under Rated Load | ≤0.25% | DIN 22131 |
| Steel Cord Pull-Out Force | ≥1250 N per cord | ISO 15236 |
| Joint Efficiency After Vulcanization | ≥90% of belt strength | DIN 22131 |
| Cover Rubber Abrasion Loss | ≤0.8 cm³/1.61km | ISO 4649 |
| Tensile Breaking Strength | Meet ST grade requirement | ISO 15236 |
Installation and Splicing Method
Because Steel Cord Conveyor Belt is designed for heavy-duty applications, hot vulcanization splicing is the recommended permanent connection method.
Hot Vulcanization Splicing
During installation, the belt ends are stripped to expose steel cords, cleaned carefully and connected with high-adhesion bonding rubber under controlled temperature and pressure. After vulcanization, the joint strength can reach more than 90% of the original belt tensile strength.
Temporary Repair Method
Cold repair methods are only suitable for small surface damage and cannot replace permanent vulcanized joints for long-distance heavy-load operation.
Certificates and Standards
YUFENG Steel Cord Conveyor Belt is manufactured according to international standards including DIN22131, ISO15236 and GB/T9770. Available certification documents include ISO9001 quality management certificate, CE export certificate, SGS material inspection report, coal mine safety certificate and factory performance test reports.

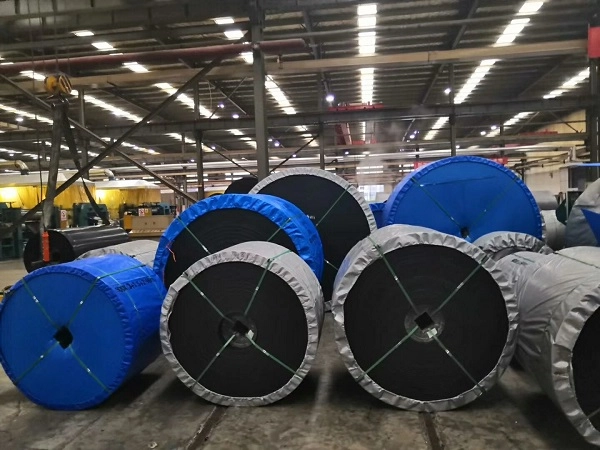

Packaging Specification
YUFENG provides professional export packaging according to belt size and strength grade.
- ST630–ST2000 belts: Steel core winding, waterproof film and woven bag protection.
- ST2500–ST6300 heavy belts: Reinforced wooden pallet, steel strapping and waterproof covering.
- Custom cut sections: Foam protection to prevent deformation during transportation.
How to Select the Right Steel Cord Belt
To recommend a suitable belt model, please provide the following information:
- Required ST tensile grade
- Belt width
- Top and bottom cover thickness
- Anti-tear requirement
- Material type and working temperature
- Conveying distance
- Hourly transportation capacity
- Total order quantity and delivery port
YUFENG technical team can calculate the suitable steel cord grade and rubber structure according to your working conditions and provide factory quotation within 1 working hour.
