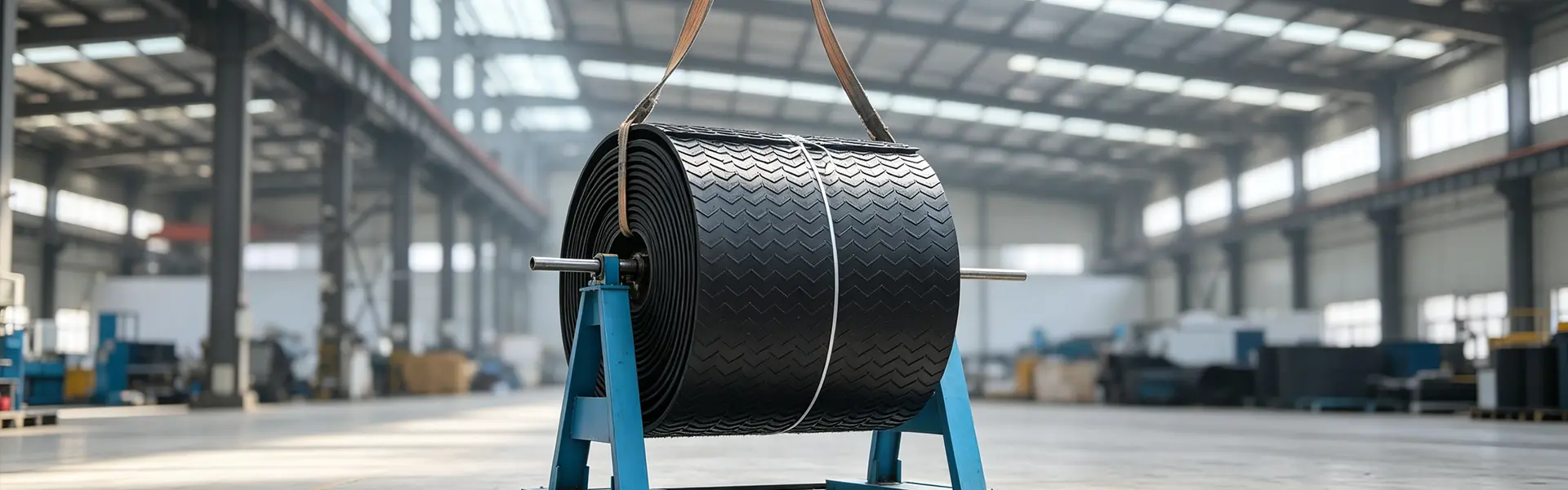

Customized Patterned Conveyor Belt for Efficient Bulk Material Handling
YUFENG Patterned Conveyor Belt, also known as chevron or herringbone conveyor belt, is a rubber conveyor belt designed with molded patterns on the working surface to improve grip during inclined material conveying. It consists of an EP or NN fabric carcass, rubber cover and integrated raised pattern layer, which are bonded through high-temperature vulcanization.
Compared with smooth conveyor belts, the patterned surface increases friction between the belt and conveyed material, helping reduce material sliding and rollback on inclined conveying lines. Different pattern structures, heights and carcass configurations can be selected according to conveying angle, material size, belt width and working environment.
YUFENG produces patterned belts with virgin rubber and high-strength EP/NN fabric carcasses. The product range covers general wear-resistant, flame-retardant, high-temperature, oil-resistant and low-temperature models for quarry, mining, cement, aggregate, logistics and other bulk material conveying applications.
What Are the Main Types?

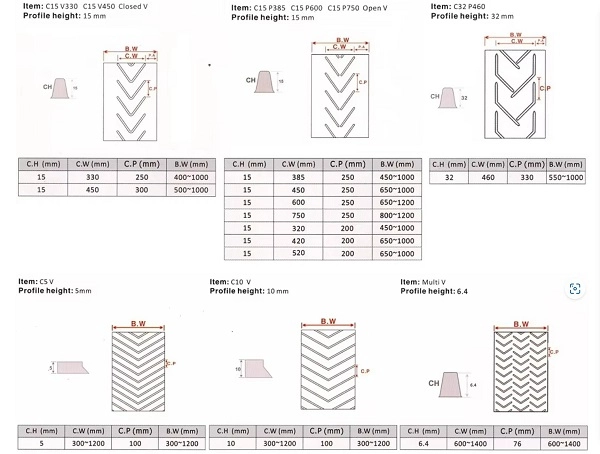

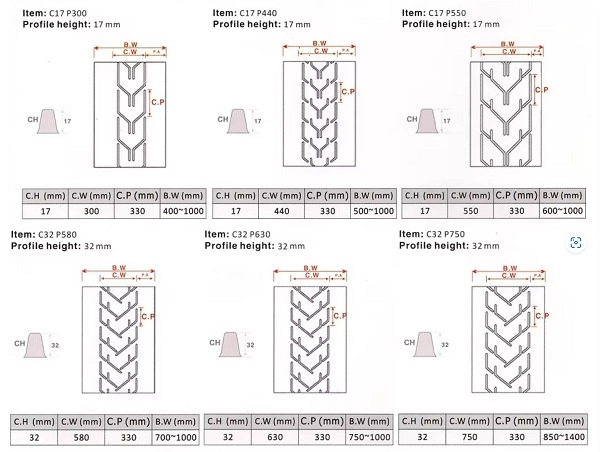

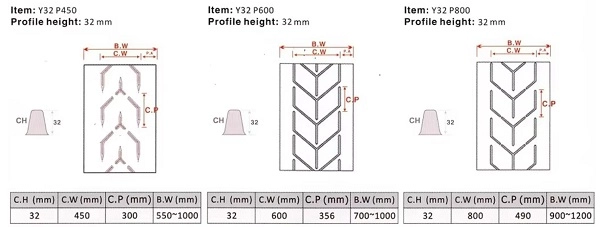

Patterned conveyor belts are mainly classified according to the molded surface structure. Different patterns provide different levels of grip, cleaning performance and suitability for conveying angles.
Closed Chevron Belt
The closed chevron pattern provides a continuous raised surface with strong material-gripping performance. It is suitable for conveying lump ore, stone, aggregate and other bulk materials on steep inclined sections, with conveying angles of up to approximately 40° depending on material characteristics and conveyor design.

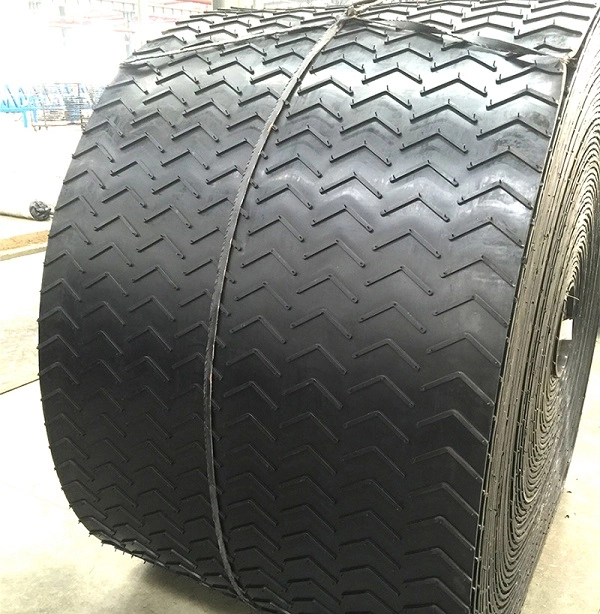

Open V Belt
The open V-shaped pattern provides moderate anti-slip performance while leaving more space between raised sections for material discharge and cleaning. It is suitable for grain, sand and small granular materials on conveying lines with approximately 15°–30° inclination.
Dotted Rough Belt
The dotted surface consists of small raised rubber points that provide gentle friction without creating excessive material retention. It is mainly used for cartons, bags, packaged goods and grain handling on low-angle conveying lines below approximately 15°.
Diamond Cross Belt
The diamond cross pattern provides balanced surface friction and lateral material stability. Its relatively open structure also facilitates surface cleaning, making it suitable for logistics sorting, light industrial products and finished goods conveying.
How Does Pattern Selection Affect Conveyor Performance?
The main selection factors are conveying angle, material characteristics, pattern height and required surface friction. A higher or more continuous pattern generally provides stronger grip, while an open or low-profile pattern can offer easier cleaning and lower material retention.
| Pattern Type | Core Characteristic | Applicable Working Condition |
|---|---|---|
| Closed Chevron | High grip and strong material retention | Lump ore, stone and aggregate steep conveying |
| Open V Pattern | Moderate anti-slip performance and easier discharge | Grain, sand and granular materials |
| Dotted Rough Pattern | Light friction and relatively easy cleaning | Cartons, bags and packaged goods |
| Diamond Cross Pattern | Balanced friction and lateral stability | Logistics and light industrial products |
What Sizes and Specifications Does YUFENG Provide?

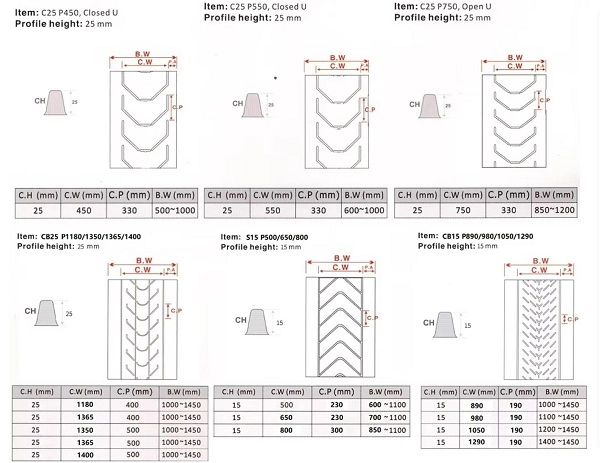

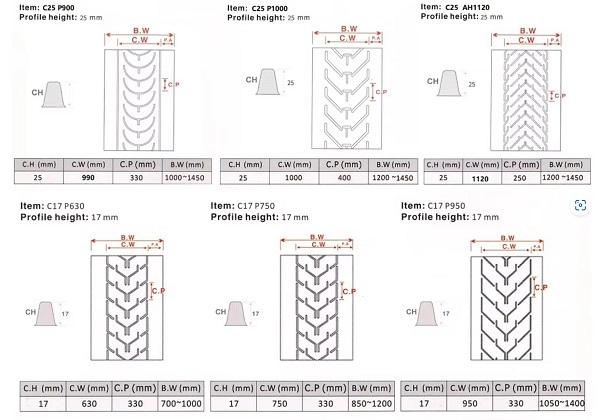

YUFENG supplies patterned conveyor belts with different carcass strengths, widths and pattern heights to match different conveyor structures. Standard options include EP100–EP1000 and NN100–NN800 fabric carcasses, belt widths from 300 mm to 2400 mm, and pattern heights of 6 mm, 16 mm, 25 mm and 32 mm.
| Specification | Available Range |
|---|---|
| Fabric Carcass | EP100–EP1000 / NN100–NN800 |
| Belt Width | 300–2400 mm |
| Pattern Height | 6 / 16 / 25 / 32 mm |
| Surface Pattern | Chevron / V / Dot / Diamond / Custom |
| Functional Rubber | Wear / Flame Retardant / High Temperature / Oil / Cold Resistant |
Which Patterned Belt Is Suitable for Different Applications?
General Wear-Resistant Chevron Patterned Belt
This is the standard configuration for normal-temperature bulk material conveying. The wear-resistant rubber cover is suitable for coal, sand, limestone, aggregate and similar materials, with a typical working temperature range of -20°C to +60°C.
Flame Retardant Anti-Static Patterned Belt
This type uses flame-retardant and conductive rubber compounds for underground conveying applications where fire and static electricity are safety concerns. Models for coal mine applications can be manufactured according to applicable MT/T668 requirements.
High Temperature Resistant Patterned Belt
High-temperature patterned belts use heat-resistant rubber compounds for conveying hot materials such as cement clinker and steel slag. YUFENG configurations can be specified for material temperatures below approximately 180°C according to the actual conveying conditions.
Oil Resistant Patterned Belt
Oil-resistant models use NBR-based cover rubber to reduce swelling and cracking caused by mineral oil, lubricants and other oil-containing materials. They are suitable for chemical plants, oil-related material handling and industrial production environments.
Low Temperature Resistant Patterned Belt
Low-temperature formulations maintain rubber flexibility in cold outdoor environments. They can be specified for applications requiring operation down to approximately -40°C, including open-pit mining and winter bulk material transportation.
Dotted Rough Pattern Logistics Belt
The low-profile dotted surface provides controlled friction for cartons, grain bags and packaged products. It is suitable for warehouse sorting and logistics conveying where excessive surface pattern height is unnecessary.
What Customization Options Are Available?
Pattern Shape
YUFENG can provide closed chevron, open V, dotted, diamond cross and other molded surface configurations according to the conveyor application.
Pattern Height
Pattern height can be selected according to conveying angle, material size and required grip. Standard options include 6 mm, 16 mm, 25 mm and 32 mm, with customized dimensions available for specific equipment.
Fabric Carcass
EP polyester fabric provides low elongation and stable dimensional performance, while NN nylon fabric offers greater flexibility and impact resistance. The appropriate carcass can be selected according to conveyor length, loading conditions and pulley diameter.
Functional Rubber Compound
The cover rubber can be modified for flame retardancy, oil resistance, high-temperature resistance, low-temperature flexibility and other operating requirements.
Bottom Surface Configuration
The bottom surface can be supplied with a smooth fabric-backed structure or rubber-backed structure according to the conveyor frame, idler arrangement and installation requirements.
How Is YUFENG Patterned Belt Manufactured?
Fabric Carcass Preparation
High-tenacity EP polyester-nylon canvas or NN nylon fabric is selected according to the required tensile grade. Fabric layers are controlled for uniform warp and weft density to maintain consistent belt tension.
Rubber Compound Preparation
Virgin natural rubber, NBR or other functional rubber compounds are selected according to the working environment. The compound is formulated to provide the required wear, adhesion, temperature or chemical resistance.
Pattern Molding and Vulcanization
The patterned working surface and belt body are integrated through high-temperature vulcanization. This structure avoids the separate adhesive bonding used by some low-quality patterned belts and reduces the risk of pattern peeling during repeated bending.
Factory Quality Inspection
Fabric and rubber materials are sampled for tensile, elongation and adhesion performance before production. Finished belts are inspected for carcass performance, cover rubber properties and pattern bonding before shipment.
What Raw Materials Does YUFENG Use?
Tensile Carcass
YUFENG uses high-tenacity EP polyester-nylon canvas or NN nylon fabric with controlled warp and weft density to provide stable tensile performance.
Pattern Cover Rubber
Virgin natural rubber, NBR and functional synthetic rubber can be selected according to wear, oil, temperature and safety requirements.
Bonding Skim Rubber
High-adhesion skim rubber is used between fabric layers and rubber compounds to improve interlayer bonding and reduce the risk of delamination under continuous loading.
Raw Material Inspection
Each batch of fabric and rubber materials undergoes factory laboratory sampling for tensile strength, elongation and adhesion before entering the vulcanization process. Materials that fail internal requirements are not released for production.
What Standards Does YUFENG Patterned Belt Follow?
YUFENG patterned conveyor belts are manufactured with reference to applicable international and domestic conveyor belt standards, including ISO 14890, DIN 22102 and GB/T 7984. Flame-retardant models for underground coal mining can be manufactured according to applicable MT/T668 requirements. Export orders can be supported with CE and SGS inspection documentation where required.
What Quality Documents Can Be Provided?
ISO9001 Quality Management Certificate
Quality management system documentation can be provided for qualified products and applicable orders.
CE Export Documentation
CE-related export documentation can be supplied for applicable product configurations and destination-market requirements.
SGS Test Documentation
SGS inspection or raw material performance reports can be provided according to customer requirements and testing scope.
Factory Performance Test Report
Factory test documentation can cover tensile strength, elongation and other applicable performance indicators for the supplied belt specification.

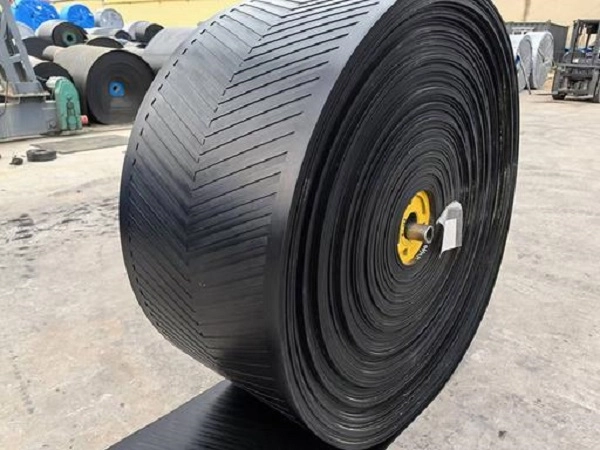

What Are the Core Technical Indicators?
| Performance Item | Standard Requirement | Test Standard |
|---|---|---|
| Elongation at Break of Fabric Carcass | ≥300% | ISO 6259 |
| Interlayer Peel Strength | ≥12 N/mm | ISO 2411 |
| Permanent Elongation Under Rated Load | ≤2.5% | DIN 22102 |
| Cover Rubber Abrasion Loss | ≤0.8 cm³/1.61 km | ISO 4649 |
| Pattern Bonding Performance | No peeling after 10,000 bending cycles | Factory Bending Test |
How to Cut, Splice and Install Patterned Belt?
Hot Vulcanization Splicing
For permanent conveyor joints, the belt ends are cut into stepped layers according to the fabric ply structure. The joint surfaces are cleaned, matching skim rubber is installed between layers, and a vulcanizing press is used for controlled heating and pressure. After cooling and inspection, the joint can be placed into normal operation.
Cold Glue Repair
Cold bonding can be used for temporary repair or selected short-term applications. The damaged area should be cleaned and roughened before applying suitable conveyor belt adhesive. The repaired section must be fully cured before restarting the conveyor.
Conveyor Line Layout
Upper carrying sections should use suitable trough idlers, while impact idlers should be installed around high-drop feeding points. Self-aligning idlers can be arranged at suitable intervals on long conveying lines to help control belt tracking.
What Supporting Products Can YUFENG Supply?
Conveyor Belt Series
YUFENG can supply Fabric Conveyor Belt, Steel Cord Conveyor Belt, Sidewall Conveyor Belt and Rough Top Conveyor Belt for different conveying configurations.
Conveyor Roller Series
Supporting products include trough idlers, impact idlers, self-aligning idlers and HDPE anti-corrosion rollers.
Rubber Accessories
Wear-resistant rubber sheets, conveyor skirting, repair adhesives and patch kits can be supplied for conveyor maintenance and repair.
HDPE Pipeline Series
HDPE water pipe and HDPE dredge pipe can be supplied for auxiliary fluid transportation applications in mining and related projects.
Custom Processing
YUFENG can adjust belt width, fabric ply, pattern height and functional rubber formulation according to customer drawings and operating conditions.
How Is Patterned Conveyor Belt Packed and Stored?
Narrow Width Rolls
For 300–800 mm belt widths, the belt is wound on a solid paper core and protected with waterproof plastic film and an outer woven bag.
Wide Width Rolls
For 1000–2400 mm wide belts, steel strapping is used for reinforcement, with tarpaulin protection and wooden pallet loading for container transportation.
Short Cut Sections
Custom-cut belt sections can be separately packed to reduce pattern surface damage and scratching during handling and transportation.
Storage Conditions
Patterned conveyor belts should be stored horizontally with a stacking height of no more than 1.5 m. Long-term direct sunlight, chemical solvents and other conditions that may accelerate rubber aging should be avoided.
How to Request a Patterned Belt Quotation?
For wholesale or customized Patterned Conveyor Belt requirements, provide the following technical information so YUFENG can select the appropriate carcass and pattern configuration:
- Carcass type: EP or NN
- Belt width
- Pattern shape and height
- Maximum conveying angle
- Material type and lump size
- Working temperature and conveying medium
- Conveying distance
- Total order quantity
- Target delivery port
Based on these parameters, YUFENG can evaluate the required fabric grade, belt construction, cover rubber and pattern configuration for the application.
YUFENG Global Contact Information
jayce@yuphengbelt.com
WhatsApp / WeChat / Mobile
+86 15318787602
Factory Address
Xiagou Villege, ETDZ, Qingdao, Shandong, China
- View as
Studded Conveyor Belt
Designed for precise and gentle material handling, YUFENG Studded Conveyor Belt uses raised round, oval or capsule-shaped studs to provide controlled point-contact grip. Field-tested in woodworking, food processing and logistics, it improves product stability on inclined conveyors while reducing surface damage. PVC, PU, rubber and PE options are available with customized stud shapes, heights and densities.
Diamond Pattern Conveyor Belt
For conveying applications that demand reliable grip in changing directions and inclines, YUFENG Diamond Pattern Conveyor Belt provides stable omni-directional anti-slip performance. Its raised diamond surface improves material traction while helping shed moisture and debris, reducing slippage compared with flat belts. Custom diamond sizes, depths, densities and belt specifications are available for mining, agriculture, food processing, logistics and construction.

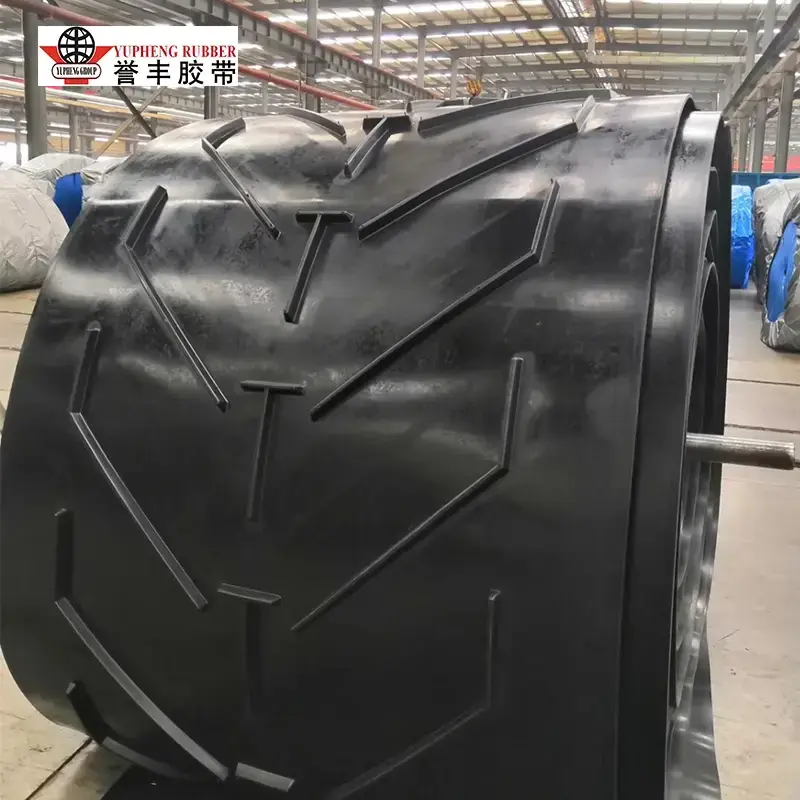

Chevron Conveyor Belt
Designed for efficient inclined bulk material conveying, YUFENG Chevron Conveyor Belt uses integrally vulcanized V-shaped cleats to improve grip and prevent material rollback on slopes up to 40°. Its durable, abrasion-resistant construction supports demanding applications in mining, ports, agriculture and building materials, with C15, C25 and other cleat patterns available for customized conveying requirements.

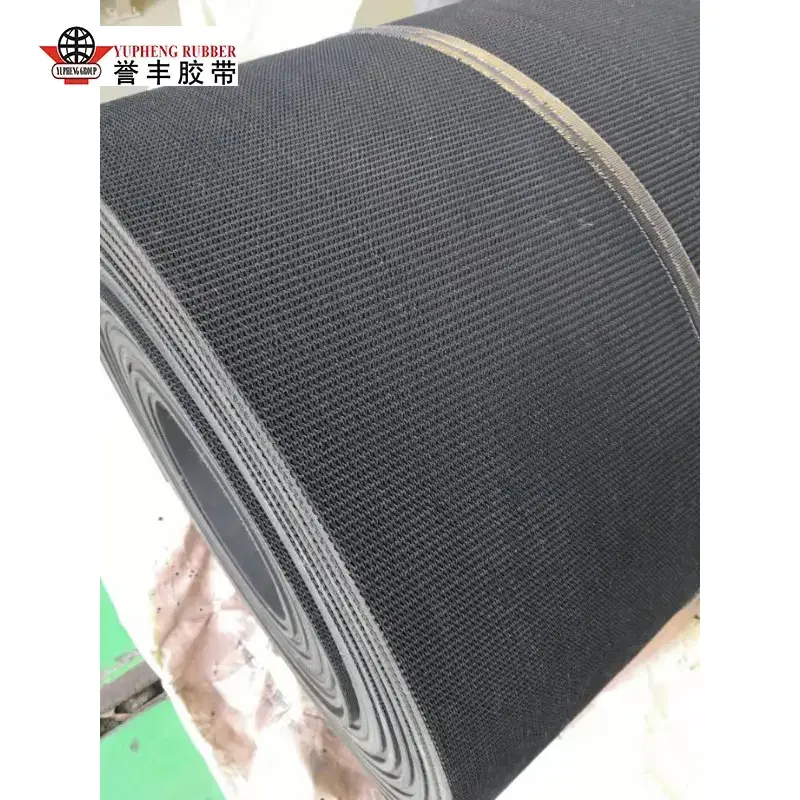

Rough Top Conveyor Belt
