Drive Pulley

YUFENG provides standard-size Drive Pulley and full custom processing services, with complete factory test reports, ISO, CEMA and GB industrial standard certification. Every finished Pulley passes static balance, ultrasonic welding flaw detection and lagging adhesion strength testing before delivery, lowering equipment downtime and daily maintenance expenditure for industrial buyers.

We offer free technical parameter consultation, sample testing and customized drawing design support; contact our sales team to get the latest factory quotation and matching conveyor system solution.

Product Definition & Power Transmission Function

Core Power Transmission Component

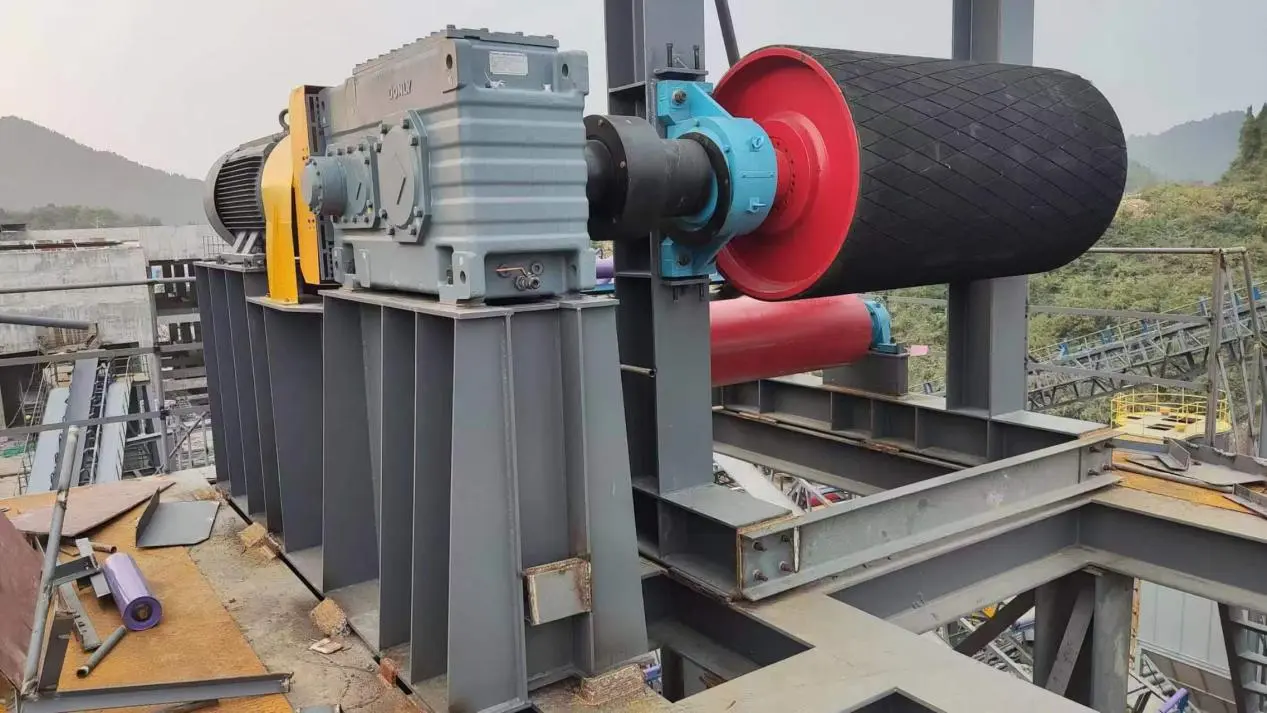

YUFENG Drive Pulley is installed at the head section of belt conveyor systems and functions as the primary power transmission component. It transfers mechanical power from the motor and reducer to the conveyor belt, generating the traction required for continuous material transportation. Compared with ordinary support idlers, the product directly handles the belt tension and torque generated by the conveying system, making structural strength, surface traction and fatigue resistance critical performance factors.

Heavy-Duty Design for Continuous Conveying

YUFENG develops and manufactures heavy-duty drive pulleys for long-hour bulk material handling applications. The pulley structure combines integrated welding with stress-relief annealing to improve dimensional stability and reduce the risk of shell deformation during extended operation. This design is suitable for demanding conveyor systems transporting bulk materials under high-load conditions.

Stable Traction Under Difficult Conditions

The product can be configured for both fabric and steel cord conveyor belts. Its surface lagging options provide reliable friction between the pulley and belt, helping maintain stable power transmission under dusty, humid and muddy operating conditions while reducing belt slip and unnecessary traction loss.

Raw Material & Manufacturing Craft

Reinforced Pulley Shell

The pulley shell is manufactured from Q235 seamless carbon steel pipe with wall thicknesses from 6 mm to 16 mm according to the required load rating. Circumferential seams are processed using submerged arc automatic welding, followed by furnace stress-relief annealing to reduce residual welding stress and improve long-term structural stability.

Forged Transmission Shaft

The transmission shaft uses forged 45 medium carbon steel and undergoes rough turning, quenching and tempering, ultrasonic flaw detection, precision grinding and finish machining. This multi-stage process provides the shaft with the strength and dimensional accuracy required to withstand continuous torque, bending loads and full-load conveyor operation.

Customized Lagging Options

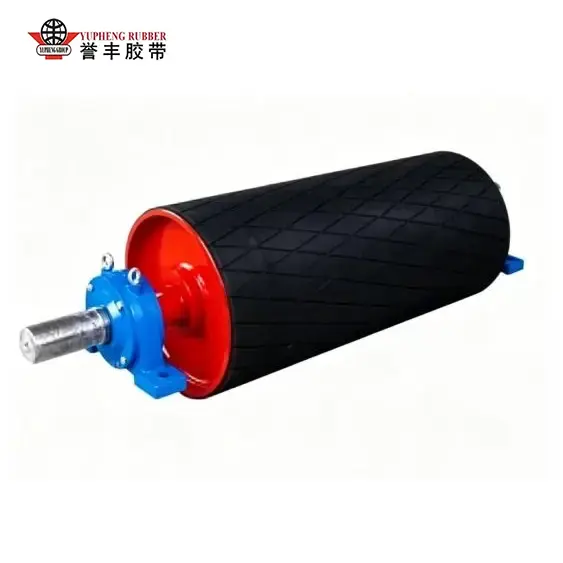

YUFENG offers hot-vulcanized integral rubber lagging and cold-bonded replaceable rubber lagging. Natural-synthetic blended rubber with Shore A 65–75 hardness is available in smooth, herringbone and diamond surface patterns. For extremely wet mining environments, ceramic lagging can also be customized to provide higher traction and improved resistance to slippage.

Heavy-Duty Bearing & Sealing System

Heavy-duty double-sealed spherical roller bearings are combined with a multi-channel labyrinth sealing structure to help protect the bearing chamber from coal dust, mineral powder and rainwater. This configuration supports reliable rotation and helps extend the lubrication and maintenance interval of the drive pulley.

Five-Stage Factory Inspection

Every YUFENG Drive Pulley undergoes key inspection procedures before shipment, including ultrasonic welding inspection, transmission shaft flaw detection, static balance calibration, rubber lagging peel-strength testing and full-load rotational aging testing. These controls help verify structural integrity, surface bonding quality and operational stability for demanding conveyor applications.

Field Test Data & Performance Comparison

Long-Term Heavy-Duty Operation Verification

YUFENG conducted 8-month continuous field tracking tests in open-pit coal mines and coastal port conveying projects, comparing YUFENG Drive Pulley with conventional market pulleys under the same heavy-load operating conditions. The test results verified significant improvements in traction stability, structural durability and maintenance performance.

Reliable Anti-Slip Performance

Under damp mineral powder conditions, YUFENG diamond rubber lagging product maintains a friction coefficient above 0.45, while ordinary smooth steel pulleys may drop below 0.2 and experience frequent belt slipping. The enhanced traction performance helps reduce conveying interruptions and improves overall production efficiency.

High Structural Stability Under Continuous Load

After 30,000 hours of full-load operation, the shaft deflection of YUFENG Drive Pulley remains controlled within 0.12 mm. Compared with thin-shell pulleys that are more prone to bending deformation, the reinforced shell and shaft structure effectively reduce belt tracking problems and uneven belt edge wear.

Extended Lagging Durability

The hot-vulcanized rubber lagging structure maintains excellent bonding strength and surface integrity after long-term mine operation, resisting peeling and cracking caused by repeated friction and heavy loading. This reduces replacement frequency and lowers maintenance costs compared with ordinary lagging solutions.

Reduced Maintenance Requirements

With heavy-duty sealing protection and optimized bearing configuration, YUFENG Drive Pulley requires only periodic lubrication and routine inspection under normal working conditions. The improved contamination protection design helps reduce bearing failures caused by dust, moisture and mineral particles.

Solving Common Conveyor Drive Problems

The optimized shell thickness, reinforced shaft design and multi-layer sealing system directly address major operating issues including belt slipping, pulley deformation, lagging damage and bearing contamination failures, providing more stable power transmission for heavy bulk conveying systems.

Real Industrial Project Application Cases

Southeast Asian Open-Pit Coal Mine Conveying Project

A medium-long distance fixed conveyor system transporting approximately 12,000 tons of raw coal per day adopted YUFENG herringbone lagging Drive Pulley. The operating environment involved high humidity, heavy coal dust and frequent large material impact.

Verified Long-Term Mining Performance

After 26 months of continuous operation, the pulley shell remained free from deformation, rubber lagging showed no abnormal peeling, and the bearing chambers maintained good cleanliness without dust penetration. According to customer operation records, belt slipping incidents were reduced from 8–12 times per month to less than once every two months, significantly reducing maintenance labor and spare parts costs.

European Coastal Port Bulk Handling System

A European port terminal installed YUFENG diamond bidirectional lagging Drive Pulley on reversible conveyor systems transporting iron ore and gravel. To adapt to frequent rain and salt fog exposure, the customized ceramic composite lagging configuration provided stable traction during continuous bidirectional conveying.

Continuous Port Operation Performance

Operational records showed that the pulley supported approximately 20 hours of daily running with stable traction performance throughout different seasons, helping maintain efficient loading and unloading operations without belt slipping interruptions.

Wide Industrial Application Range

Beyond mining and port applications, YUFENG product is widely used in metallurgy plants, cement raw material conveying systems, thermal power coal supply lines and aggregate transportation projects. It is suitable for handling coal, iron ore, limestone, gravel and mineral powder materials under heavy-duty conveying conditions.

Project Verification Support

YUFENG can provide available installation photographs, project parameter records and application references to help customers evaluate product compatibility before bulk procurement and conveyor system upgrades.

Complete Technical Specification Table

Why Choose YUFENG？

Engineered for Conveyor Power Transmission

Unlike ordinary conveyor components that only support belt movement, YUFENG product is developed as the key traction unit responsible for transferring motor torque to the conveyor belt. Every design detail focuses on stable power output, sufficient load resistance and reliable belt engagement during long-distance heavy material transportation.

Optimized Matching for Complete Conveyor Systems

YUFENG does not simply supply standalone pulley products. Our engineering team evaluates belt width, tensile strength, conveyor speed, material characteristics and operating conditions to recommend suitable pulley diameter, lagging structure and shaft configuration. This system-oriented approach helps prevent problems such as insufficient traction, excessive belt tension and premature component wear.

Stable Performance Under Continuous Heavy Operation

Drive Pulley often works under the highest stress position of a conveyor system, especially in mining, ports and bulk material handling applications. YUFENG designs pulley structures with reinforced load distribution and optimized rotating balance to maintain smooth operation during continuous high-torque transmission.

Multiple Surface Solutions for Different Working Conditions

Different conveying environments require different traction solutions. YUFENG provides various lagging options including herringbone rubber lagging, diamond pattern lagging and ceramic composite lagging, allowing customers to select suitable friction performance according to dry, wet, dusty or high-abrasion operating conditions.

Reliable Support for Project-Based Procurement

For conveyor manufacturers, EPC contractors and industrial end users, YUFENG provides technical drawings, specification confirmation and production coordination before order completion. This reduces installation mismatch risks and helps customers achieve smoother project implementation.

Frequently Asked Questions

Q1: Why is Drive Pulley considered the most critical rotating component in a conveyor system?

A1: Because the Drive Pulley directly transfers motor power to the conveyor belt and determines whether the belt can achieve stable movement under load. If traction is insufficient or the pulley structure cannot withstand operating tension, problems such as belt slipping, unstable conveying speed and production interruption may occur.

Q2: How should customers select the suitable lagging type for Drive Pulley?

A2: Selection mainly depends on working environment and conveying requirements. Smooth rubber lagging is suitable for general dry conveying conditions; herringbone and diamond patterns improve traction for heavy-load applications; ceramic lagging is recommended for extremely wet or high-slip environments requiring higher friction performance.

Q3: What information is required for Drive Pulley customization?

A3: Customers normally need to provide conveyor belt width, belt tensile strength, pulley diameter requirements, motor power, conveying speed, material type and operating environment. Based on these parameters, YUFENG can recommend suitable structural specifications and provide customized manufacturing solutions.
