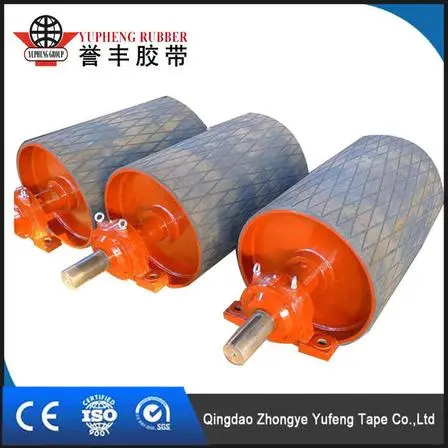

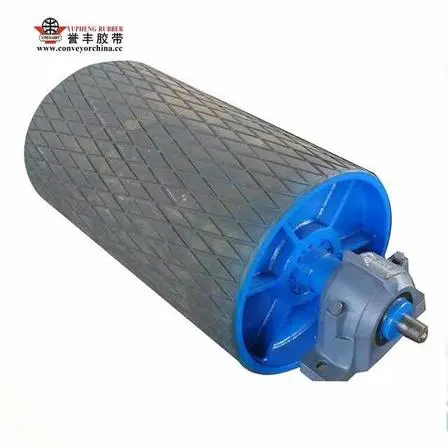

Rubber Lagged Drive Pulley

With multiple lagging options including plain rubber, diamond groove, herringbone groove and FRAS rubber, YUFENG Rubber Lagged Drive Pulley delivers enhanced friction, drainage and wear resistance for demanding conveyor applications. Tested for rubber adhesion, dynamic balance, abrasion and tensile performance, it ensures stable operation from -30°C to 100°C while reducing downtime and maintenance costs in heavy-duty conveying systems.

Features

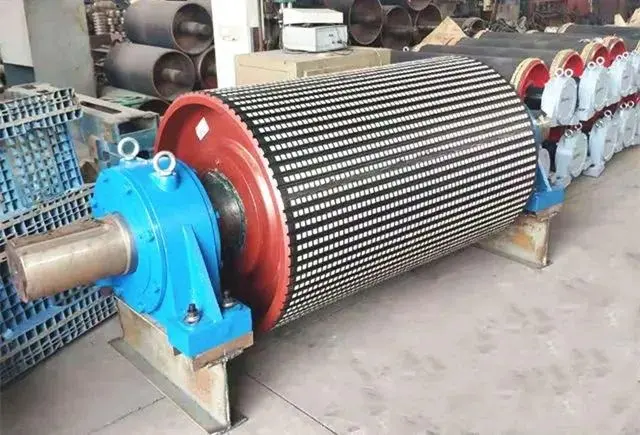

High-Friction Drive Pulley for Heavy-Duty Conveyor Systems

YUFENG Rubber Lagged Drive Pulley, also known as a head drive drum, is designed for medium- and long-distance belt conveyor systems handling large-volume bulk materials. Unlike bare steel drive pulleys that provide limited friction under wet or dusty conditions, this pulley combines a rigid steel drum with a thick wear-resistant rubber lagging layer formed through integrated hot vulcanization.

The steel drum provides the structural strength required to withstand drive torque and radial loads, while the rubber lagging creates a high-friction contact surface between the pulley and conveyor belt. This combination improves traction, reduces belt slip and protects the belt from direct metal-to-rubber contact during continuous operation.

Designed for High-Tension Steel Cord Conveyor Belts

The reinforced pulley structure is suitable for conveyor systems equipped with general steel cord conveyor belts and fabric belts. Available configurations cover conveyor belt widths from 500mm to 2000mm, with pulley dimensions and load capacity adjustable according to conveyor tension, belt speed and material throughput.

Hot-Vulcanized Lagging for Long-Term Stability

Unlike conventional cold-bonded lagging, the rubber layer is permanently bonded to the steel drum through controlled high-temperature vulcanization. This reduces the risk of delamination, bubbling and rubber separation during prolonged heavy-load operation, making the pulley suitable for coal mines, ports, cement plants and mineral processing facilities.

Raw Material & Production Craft

Reinforced Steel Drum Construction

The drum shell and end discs are manufactured from Q235B or Q345B steel according to load requirements. Steel surfaces are shot blasted to Sa 2.5 before rubber application, removing rust and oxide layers while creating a suitable bonding surface for the lagging compound. The drive shaft uses 45# quenched and tempered steel to provide sufficient torsional and bending resistance during continuous power transmission.

Engineered Rubber Lagging Compounds

The standard lagging compound combines natural rubber with wear-resistant synthetic rubber, with hardness controlled at 60±5 Shore A. The material provides a balance of traction, abrasion resistance and elasticity. For specialized applications, YUFENG can supply FRAS fire-resistant and anti-static rubber, oil-resistant NBR or high-temperature EPDM formulations according to the conveyor environment.

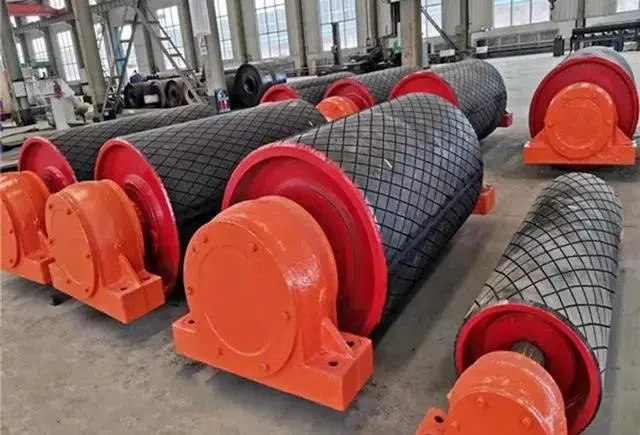

Reinforced Lagging Surface Structure

A steel wire reinforcement layer can be incorporated into the lagging structure to improve resistance to tearing and repeated mechanical impact. Diamond and herringbone surface patterns are available to increase traction and facilitate water or fine-material drainage between the pulley and conveyor belt.

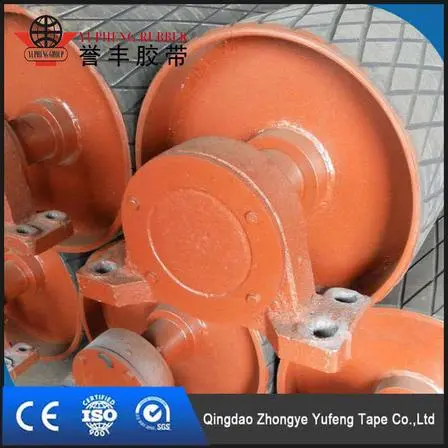

Heavy-Duty Bearing and Sealing Assembly

The pulley can be equipped with spherical roller bearings from internationally recognized or qualified domestic suppliers according to customer requirements. Multi-stage labyrinth sealing helps prevent coal dust, mineral powder, mud and water from entering the bearing housing, supporting stable rotation during long-term industrial operation.

Integrated Hot Vulcanization Manufacturing Process

Precision Steel Drum Preparation

The production process begins with steel drum forming, end-disc welding and precision machining of the shaft journals. After welding, the pulley body undergoes preliminary balancing and dimensional inspection to establish a stable foundation for subsequent rubber lagging.

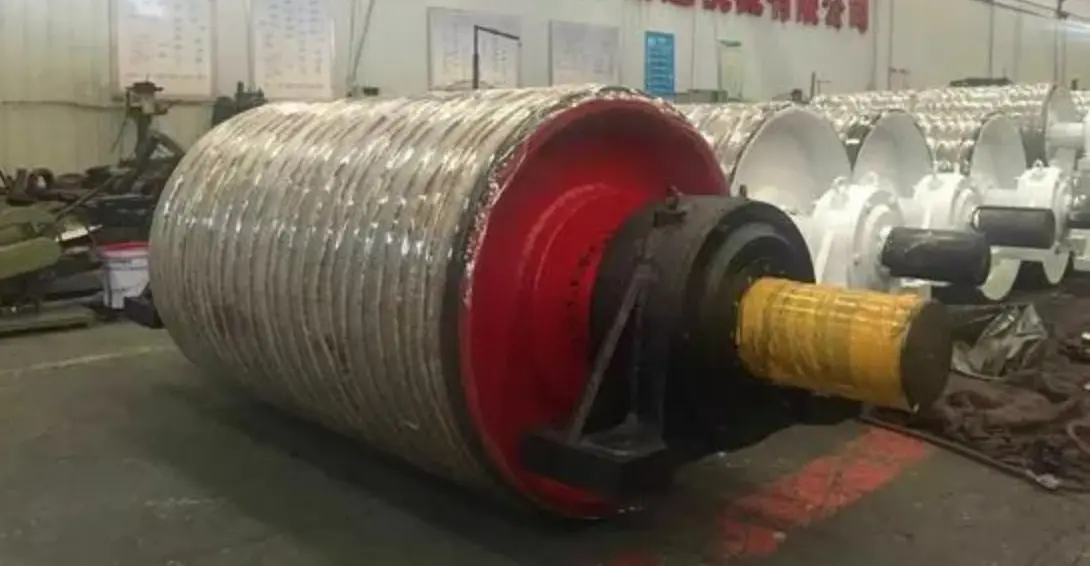

Surface Preparation and Rubber Application

The drum surface is shot blasted and treated with a dedicated bonding system before the rubber compound is applied. The formulated rubber sheet is evenly positioned around the drum, with optional steel wire reinforcement incorporated into the lagging structure according to the required operating grade.

Controlled High-Temperature Vulcanization

The prepared pulley enters an autoclave for controlled hot vulcanization at approximately 140–160°C for 2–4 hours. Pressure, temperature and curing time are controlled throughout the process to create a strong integrated connection between the rubber lagging and steel drum. Standard bonding performance can reach ≥7N/mm according to ASTM D429 testing requirements.

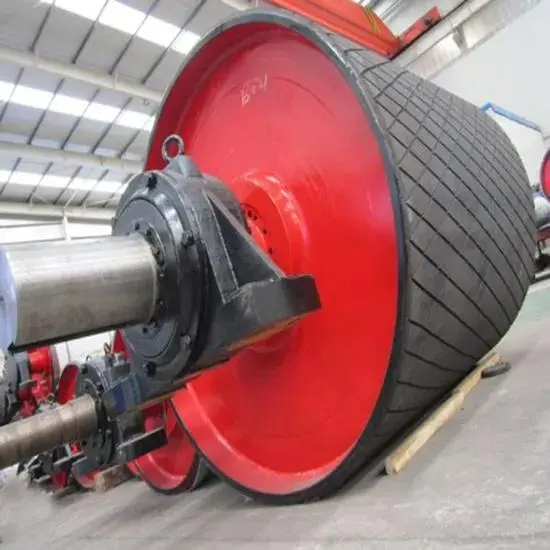

Surface Pattern and Finishing

After vulcanization, the rubber surface is precision finished according to the specified traction requirement. Diamond or herringbone grooves can be machined into the lagging to improve belt grip and drainage, while surface finishing removes excess material and irregularities.

Dynamic Balancing and Final Assembly

The completed pulley undergoes precision dynamic balancing to ISO 1940 G6.3 level before shaft and bearing installation. The assembly process includes shaft press fitting, bearing-seat installation and fastener torque verification to ensure consistent mechanical performance.

Final Performance Verification

Before shipment, each production batch undergoes inspection covering rubber tensile performance, lagging adhesion, abrasion resistance, low-temperature flexibility, dimensional accuracy and dynamic balance. Inspection records are retained for production traceability and customer quality verification.

Cold-Bonded Lagging for Special Orders

Cold-bonded lagging is also available for small-diameter pulleys, replacement projects and orders requiring shorter production cycles. For continuous heavy-duty conveyor systems, however, YUFENG recommends integrated hot-vulcanized lagging for stronger bonding and longer operating stability.

Field Test Data & Industry Pain Point Comparison

Eight-Month Continuous Industrial Tracking Test

YUFENG conducted eight consecutive months of field tracking tests on Rubber Lagged Drive Pulley applications in Southeast Asian coal mines and European coastal bulk handling terminals. The testing compared hot-vulcanized rubber lagged pulleys, conventional cold-bonded lagged pulleys and bare steel pulleys under the same heavy-load, humid and dusty operating conditions.

The evaluation focused on actual industrial performance, including traction stability, belt protection, lagging durability, corrosion resistance and maintenance frequency. The recorded operating data demonstrates the advantages of integrated hot-vulcanized rubber lagging for continuous bulk material conveying systems.

Limitations of Traditional Bare Steel Drive Pulleys

Bare steel pulleys are still used in some conventional conveying applications, but their rigid metal surface creates several operational challenges in demanding environments:

• Low friction performance causes belt slipping during conveyor startup and heavy-load operation, requiring repeated tension adjustment and increasing belt surface wear.
• Direct steel-to-rubber contact generates concentrated friction, accelerating conveyor belt cover abrasion and reducing overall belt service life.
• The exposed steel surface is vulnerable to corrosion in wet mines, ports and outdoor conveying systems, increasing replacement frequency.
• The lack of an elastic buffer layer transfers vibration and impact directly to the conveyor structure, increasing operating noise and mechanical stress.

Higher Traction Performance Under Wet and Heavy Loads

YUFENG Rubber Lagged Drive Pulley uses high-friction rubber lagging with diamond or herringbone groove patterns. The elastic rubber surface increases the contact force between pulley and conveyor belt, while surface grooves help remove water and fine material contamination.

Field tracking data shows that the friction coefficient of diamond-pattern rubber lagging is significantly higher than bare steel surfaces, providing more stable traction during conveyor startup, acceleration and continuous full-load operation, especially in rainy ports and humid mining environments.

Improved Belt Protection and Reduced Wear

The rubber lagging layer acts as a protective transition surface between the pulley and conveyor belt. Compared with direct steel contact, the elastic rubber surface reduces concentrated friction stress and minimizes unnecessary belt cover damage.

According to field application records, conveyor systems equipped with YUFENG hot-vulcanized rubber lagged pulleys achieved longer belt service cycles, while pulley shell abrasion and corrosion damage were significantly reduced under high-dust and high-moisture conditions.

Integrated Vulcanization for Long-Term Reliability

Unlike cold-bonded lagging methods that rely mainly on adhesive bonding, YUFENG hot-vulcanized rubber lagging forms an integrated connection between rubber and steel drum through controlled temperature and pressure curing.

During eight months of continuous operation in humid coal mine conditions, no obvious rubber peeling, bubbling or lagging separation occurred. The pulley maintained stable rotation performance without abnormal shaft vibration caused by uneven surface wear.

Lower Maintenance Cost Through Durable Design

The combination of high-friction rubber lagging, precision dynamic balancing and reinforced pulley structure helps reduce unexpected shutdowns caused by belt slipping, surface wear and vibration problems.

When local rubber surface wear occurs, the lagging can usually be repaired instead of replacing the entire pulley assembly, reducing spare part consumption and improving long-term return on investment for bulk material handling enterprises.

Performance Index	Bare Steel Drive Pulley	Cold-Bonded Lagged Pulley	YUFENG Hot-Vulcanized Rubber Lagged Drive Pulley
Traction Performance	Low friction, higher slip risk under wet conditions	Improved friction but adhesive aging may occur	High stable traction with integrated rubber bonding
Lagging Durability	No protective rubber layer	Risk of peeling after long operation	No easy delamination under heavy-duty working conditions
Belt Protection	Direct metal contact increases abrasion	Basic protection effect	Elastic rubber layer reduces friction damage
Environmental Adaptability	Limited in wet and corrosive environments	Moderate resistance	Suitable for mines, ports and cement plants
Maintenance Requirement	Frequent adjustment and replacement	Regular lagging inspection required	Long service cycle with reduced downtime

Real Global Project Application Cases

YUFENG products have stable matching application experience in dozens of overseas heavy industry conveying projects, accumulating verifiable long-term operation data, and can supply on-site operation photos and project reference documents for client evaluation.

Case 1: Southeast Asian Open-Pit Coal Mine Conveying Project

A medium-long distance fixed conveying line equipped with ST1600 steel cord conveyor belt adopted our 1000mm width diamond groove rubber lagged drive pulley as the head power drum. The working environment features year-round high humidity, coal dust accumulation and frequent full-load startup impact. After 3 consecutive years of 24-hour continuous operation, the pulley rubber lagging maintains complete structure without cracking, delamination or steel wire exposure; belt slippage faults were eliminated entirely, and the client reduced conveyor belt replacement frequency from every 8 months to over 18 months, greatly cutting production shutdown losses.

Case 2: European Coastal Port Bulk Cargo Handling Terminal

The port’s ore and gravel unloading conveying system selects YUFENG herringbone groove rubber lagged drive pulleys with FRAS anti-static rubber formula to adapt to rainy sea salt fog corrosive environment. The drainage groove design prevents seawater film from forming between pulley and belt; anti-static rubber avoids static spark risks when transporting dry mineral powder. Client feedback shows stable troughability of matched conveyor belts, low daily failure rate, and only routine surface cleaning maintenance required without large-scale disassembly repair within 2 years.

Other Widely Applicable Scenarios

Our pulleys are also standard supporting components for domestic and overseas cement plant clinker conveying lines, metallurgical mineral powder transportation systems, chemical bulk material stockyard conveyors and aggregate quarry fixed conveying equipment, compatible with all series General Steel Cord Conveyor Belts and fabric conveyor belts.

Complete Product Specification Parameter Table

Table 1 Core Technical Parameter List

Parameter Item	Detailed Technical Specifications
Full Product Name	Rubber Lagged Drive Pulley (Head Drive Drum)
Brand	YUFENG
Matching Conveyor Belt Width	500 / 650 / 800 / 1000 / 1200 / 1400 / 1600 / 1800 / 2000mm (customized special width acceptable)
Standard Drum Outer Diameter Range	320 / 400 / 500 / 630 / 800 / 1000 / 1150 / 1350 / 1600 / 1800mm
Rubber Lagging Surface Type	Plain Rubber, Diamond Groove, Herringbone Groove, FRAS Fire-Resistant Anti-Static, Oil-Resistant NBR, High-Temp EPDM
Standard Lagging Thickness	8mm / 10mm / 12mm / 15mm / 20mm (heavy impact site optional 25mm thickened lagging)
Rubber Physical Performance (Standard NR-SBR Formula)	Hardness: 60±5 Shore A; Tensile Strength ≥14MPa; Elongation at Break ≥450%; Adhesion Strength ≥7N/mm; Abrasion Loss ≤120mm³
Working Temperature Range	Standard type: -30℃ ~ 100℃; High-temp resistant: up to 120℃; Low-temp special: -40℃
Main Raw Material	Drum Shell: Q235B/Q345B Steel; Shaft: 45# Quenched & Tempered Alloy Steel; Lagging: Natural Rubber + Synthetic Rubber Blend; Bearing: Spherical Roller Self-Aligning Bearing
Dynamic Balance Standard	ISO 1940 G6.3 (G2.5 high precision grade customizable for low-vibration projects)
Matching Conveyor Belt Type	ST630~ST5000 Steel Cord Conveyor Belt, Multi-Layer Fabric Conveyor Belt, PVC/PVG Solid Woven Belt
Applicable Bulk Materials	Coal, iron ore, limestone, gravel, mineral powder, cement clinker, chemical bulk aggregates
Covered Industries	Open-pit & underground mining, port terminal, metallurgy, cement plant, chemical stockyard, aggregate quarry, power plant
Compliance Production Standard	GB/T Conveyor Pulley Standard, ISO 10297, CEMA, DIN international industry norms
Factory Full Inspection Items	Steel Weld Penetration Test, Rubber Adhesion Test, Dynamic Balance Calibration, Rubber Tensile & Abrasion Test, Low-Temperature Bending Test, Bearing Sealing Performance Test
Available Certifications	Factory Test Report, ISO 9001 Quality System Certification, CE Certificate, SGS Material Test Document, Customized Inspection File per client demand
Sample Service	Small-size prototype samples free of charge; client undertakes international freight cost

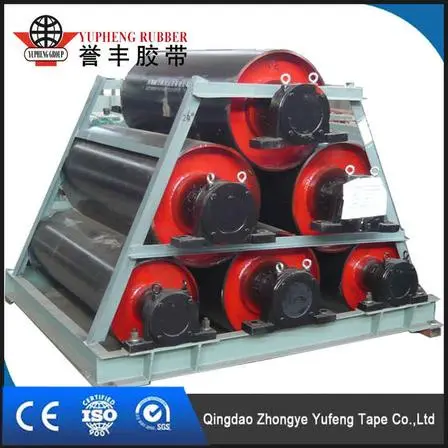

Outer Packing Standard	Shaft end wrapped with anti-rust oil paper; whole pulley covered by waterproof PP woven fabric; wooden pallet fixing for sea transportation
MOQ Rule	Negotiable; support 1-piece trial order and large-batch bulk export orders
Production Lead Time	Standard in-stock specifications: 15–20 working days; fully customized size/special rubber formula orders: 20–35 working days
Warranty Term	12-month warranty under standard working conditions and regular maintenance (or 20,000 running hours, whichever reaches first)
Acceptable Payment Terms	T/T Telegraphic Transfer, Irrevocable L/C at Sight
Loading Port	Qingdao Port, China
Place of Origin	Qingdao City, Shandong Province, China

Table 2 Matching Diameter Reference for Different Belt Width Heavy-Duty Drive Pulleys

Conveyor Belt Width (mm)	Standard Optional Drum Outer Diameter (mm)
500	320, 400, 500
650	320, 400, 500, 630
800	500, 630, 800
1000	630, 800, 1000, 1150
1200	800, 1000, 1150
1400	1000, 1150, 1350
1600	1150, 1350, 1600
1800	1150, 1350, 1600, 1800
2000	1350, 1600, 1800

Why Choose YUFENG？

Different from trading companies that only provide intermediate sales, YUFENG is a professional conveyor pulley manufacturer with complete production, rubber vulcanization and testing facilities. With years of industry experience, we provide factory-direct supply, customized design, technical support and stable bulk production services for global conveyor system projects.

Our product is developed to solve common problems of traditional drive pulleys, including belt slipping, rapid wear, frequent maintenance and short service life. Through high-strength steel drum structure, integral hot vulcanized rubber lagging and strict quality inspection, we deliver reliable power transmission solutions for mines, ports, cement plants and other heavy industries.

Frequently Asked Questions

Q1: What are the advantages of YUFENG Rubber Lagged Drive Pulley compared with bare steel pulleys?

YUFENG product features an integrated rubber lagging layer that significantly improves friction between the pulley and conveyor belt. Compared with bare steel pulleys, it reduces belt slipping, lowers belt surface wear and provides better performance in wet, dusty and heavy-load environments.

Q2: What customization options are available for Rubber Lagged Drive Pulley?

We support customized pulley diameter, face width, shaft size, lagging thickness and surface patterns, including diamond groove, herringbone groove and smooth rubber lagging. Special rubber compounds such as oil-resistant, high-temperature and flame-resistant materials are also available for different working conditions.

Q3: How does YUFENG ensure product quality and service life?

Each pulley undergoes strict inspection processes including welding inspection, dynamic balancing, rubber adhesion testing and running performance testing before delivery. The hot vulcanized rubber lagging structure provides strong bonding strength, helping extend service life and reduce maintenance frequency during long-term operation.

Contact Us

If you need high-friction, wear-resistant and long-service-life Rubber Lagged Drive Pulley matched for your mine, port, cement or metallurgy conveyor project, please contact sales team immediately to apply for free prototype samples and obtain the latest factory direct wholesale quotation! Our technical engineers will customize exclusive pulley parameter scheme according to your on-site conveyor load, conveying distance and environmental conditions to maximize your conveyor system operation efficiency.
