Multi-Ply Conveyor Belt

This Multi-Ply Conveyor Belt solves common industrial defects such as single-layer belt local bulging, uneven tension, running deviation and short overall fatigue life. With layered rubber isolation and integrated vulcanization technology, it features low vibration, mute operation, strong load uniformity and excellent wear resistance.

It is widely applicable for medium-volume continuous conveying in aggregate processing, chemical bulk materials, grain storage, cement auxiliary transportation and general mining industries. YUFENG provides standard multi-ply belts and customized layered structural belts with verifiable factory test data and stable operation cases, delivering high-reliability and low-failure conveying solutions for global general industrial production lines.

Product Detailed Introduction

1. Professional Layered Structural Conveyor Belt Positioning

YUFENG Multi-Ply Conveyor Belt is a structurally optimized layered fabric conveyor belt, precisely positioned for industrial scenarios requiring long-term stable operation, low vibration and zero deviation.

Unlike traditional single-layer NN and EP conveyor belts that adopt integral single-layer weaving structure with concentrated stress distribution, multi-ply belts break through the structural limitation of single skeleton force bearing.

Through multi-layer stacked independent fabric design, the overall load is decomposed layer by layer, effectively avoiding local stress concentration and unilateral tension deviation of single-layer belts.

2. Multi-Layer Force Bearing and Stability Advantages

Most conventional fabric belts rely on single-layer fiber strength to bear all loads, which is prone to partial fiber fatigue and local rubber deformation after long-term operation, resulting in belt body warping, deviation and accelerated aging.

Our multi-ply layered structure realizes gradient force bearing, with each fabric layer independently bearing and cooperating with each other.

The overall structural stability, anti-deformation ability and operation balance are comprehensively upgraded. It neither pursues excessive rigidity like heavy-duty EP belts nor emphasizes extreme flexibility like NN belts, but focuses on long-term stability, balanced operation and low fatigue loss, becoming the most reliable structural type for general industrial continuous conveying lines.

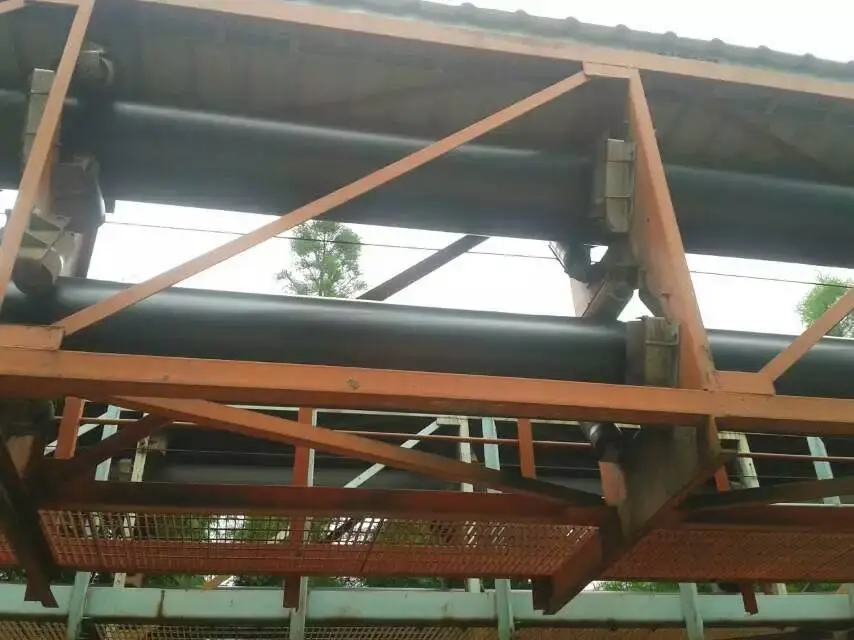

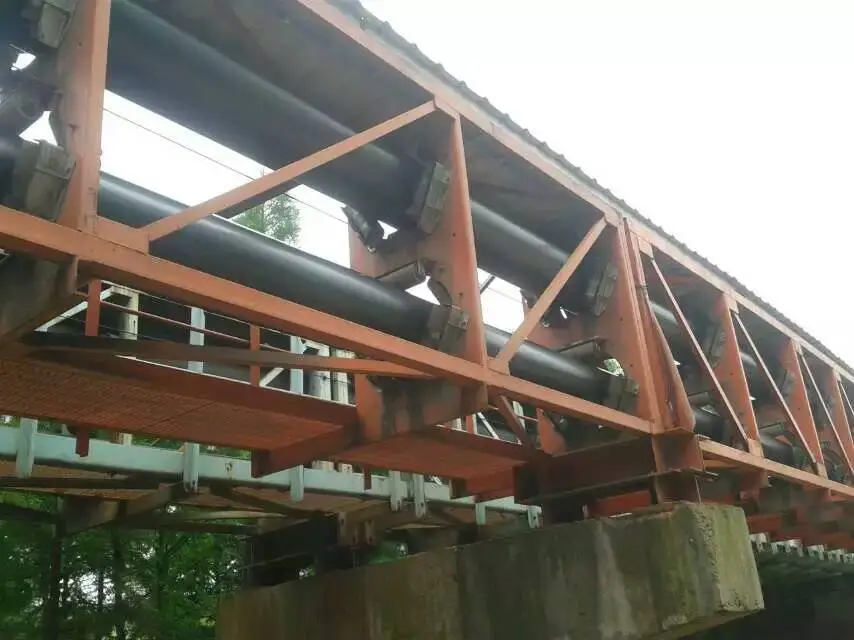

On-Site Application Logic & Industry Coverage

1. Equipment Compatibility & Stable Running Performance

YUFENG Conveyor Belt is suitable for standard flat conveyor lines, trough conveying equipment, and fixed long-distance conveying systems. Its layered composite structure provides a balanced combination of rigidity and flexibility, helping the belt maintain good straightness and trough forming performance during operation.

The belt runs smoothly during high-speed and continuous conveying, helping reduce jitter, tracking deviation, and material scattering. It supports both hot vulcanization joints and cold bonding connections, providing practical installation options for different site conditions.

2. Typical Industrial Application Scenarios

This product is mainly designed for medium-load, long-cycle, and continuous industrial conveying. Typical applications include aggregate plant auxiliary material conveying, chemical powder and granular material transportation, automated grain depot loading and unloading lines, cement plant auxiliary raw material conveying, light mineral aggregate transportation, and general bulk material transfer within industrial parks.

For continuous cyclic conveying, the belt provides stable running and good trough formation, helping reduce material scattering and operational fluctuations while supporting the continuous operation of automated conveying systems.

Factory Layered Composite Technology & Raw Material Configuration

1. Multi-Layer Segmented Lamination Production Technology

As a professional Multi-Ply Conveyor Belt factory, we adopt exclusive multi-layer segmented lamination and layered isolation vulcanization process, which is completely different from the one-time integral pressing process of ordinary single-layer belts.

The core skeleton is composed of multiple layers of high-quality dipped polyester and nylon blended fabric, with independent tension calibration for each layer to ensure consistent stress of each skeleton layer and avoid internal tension difference causing belt deviation.

2. Layered Isolation Rubber and Composite Structure Optimization

A special high-elastic isolation rubber layer is added between each fabric layer to buffer layered friction, disperse instantaneous impact force, and prevent interlayer friction and hollowing caused by long-term operation.

The upper and lower covering rubber adopts high-uniformity wear-resistant rubber compound with fine texture and uniform thickness, ensuring consistent surface friction and stable material transportation.

Inferior multi-ply products adopt mixed-layer pressing without independent isolation layer, prone to internal layer friction and accelerated delamination.

YUFENG’s layered isolation composite technology ensures low internal friction, stable layered fit and long-term anti-fatigue performance of the belt body.

Verifiable Professional Test Data & Factory Proofs

1. Professional Structural Stability Testing System

All our Multi-Ply Belt products undergo structural stability and fatigue resistance testing in the factory laboratory. The testing process covers layer tension calibration, vibration stability, cyclic fatigue resistance and interlayer bonding strength, with test records maintained for quality verification and traceability.

2. Core Performance Test Data Verification

The verified performance indicators include an overall tension uniformity error of ≤1%, with no unilateral tension deviation. After 180,000 continuous cyclic operation tests, the belt shows no interlayer hollowing or delamination. Compared with single-layer belts, operation vibration amplitude is reduced by 35%, while permanent deformation under continuous load is ≤1.0%. These test results provide reference data for customers requiring stable, low-vibration and long-cycle conveying performance.

Real Industrial Project Cases & Stable Operation Scenarios

1. Grain Logistics Base — Long-Term Stable Conveying

A large grain logistics base had experienced belt jitter and material spilling during long-term operation with ordinary single-layer conveyor belts. Uneven stress distribution required frequent system adjustment and maintenance, affecting automated loading and unloading efficiency. We supplied standard Multi-Ply Belts for the conveying line. After 22 months of uninterrupted operation, the belts continued to run smoothly without deviation or noticeable jitter, while the interlayer structure remained intact without aging delamination. Daily maintenance workload was reduced by 70%.

2. Chemical Powder Conveying — Customized Layer Structure

A chemical enterprise required stable conveying performance for powder materials to reduce material deviation, accumulation and airborne dust. We customized the Multi-Ply Belt by adjusting the fabric layer configuration and isolation rubber thickness according to the conveying load. After 13 months of field operation, the belt maintained good linear stability and effectively reduced powder accumulation and scattering, meeting the requirements of continuous chemical powder conveying.

Peer Comparison & Core Structural Advantages

1. Structural Problems of NN and EP Single-Layer Belts

Many conventional fabric conveyor belts use a single-layer load-bearing structure. NN belts provide good flexibility, while EP belts offer relatively low elongation, but both may experience localized stress concentration during long-term continuous operation. Uneven tension, vibration, deviation and local fatigue can gradually increase maintenance requirements and affect service life.

2. Problems of Low-Quality Multi-Ply Conveyor Belts

Low-cost multi-ply belts may have inconsistent layer tension or insufficient interlayer separation, which can increase internal friction and accelerate delamination. Without controlled tension distribution between individual layers, the potential load-sharing benefits of a multi-ply structure cannot be fully utilized during continuous operation.

3. YUFENG Multi-Ply Structural Competitive Advantages

YUFENG Multi-Ply Belt uses a layered force-bearing structure to distribute operating stress across multiple fabric layers, reducing localized stress concentration. Each layer participates in load distribution, helping improve structural balance and reduce local fatigue.

4. Interlayer Isolation and Long-Term Stable Operation

The interlayer isolation rubber helps reduce friction between fabric layers and supports fatigue resistance during repeated operation. Independent tension calibration of each layer helps maintain uniform force distribution and stable running. Under continuous working conditions, the multi-ply structure provides balanced stress distribution, reduced vibration and improved fatigue resistance for long-cycle conveying systems.

Complete Product Specification Parameters

1. Structural Configuration Parameters

2. Performance Advantage Parameters

3. Application and Service Parameters

YUFENG Factory Strength & Service Advantages

1. Independent Layered Production System and Technical Expertise

As a professional Multi-Ply Conveyor Belt manufacturer and supplier focusing on layered structural conveyor belts, YUFENG owns independent layered lamination production line and structural stability laboratory.

Different from ordinary manufacturers that only produce single-layer fabric belts, we specialize in layered structural optimization and tension calibration technology, focusing on solving the pain points of jitter, deviation and fatigue aging of continuous conveying lines.

2. Strict Quality Control and Structural Verification

Each batch of multi-ply belts undergoes independent layer tension detection and interlayer bonding test before delivery, ensuring consistent stress of each layer and overall structural coordination. Through systematic factory testing, we verify the structural stability, bonding reliability and long-term fatigue resistance of each belt, ensuring stable performance under continuous industrial operation conditions.

Customized Structural Solutions and Technical Services

1. Flexible Layer, Thickness and Formula Customization

We can flexibly match the number of ply layers, rubber thickness and functional formula according to the conveying volume, operating time and material characteristics of different projects. For applications such as grain transportation, chemical powder conveying, cement auxiliary production and aggregate processing, YUFENG provides customized structural solutions to improve load distribution and support longer service life.

2. One-Stop Factory Direct Support

All performance data is verified through long-cycle fatigue tests and on-site industrial projects, providing stable and traceable product quality. We provide factory-direct supply, structural scheme customization, installation guidance and after-sales technical support to help global industrial customers improve conveying line stability and reduce long-term operating costs.

Why Choose YUFENG Multi-Ply Belt

1. Optimized Multi-Layer Force Distribution Design

YUFENG Multi-Ply Conveyor Belt adopts a layered fabric structure in which each ply participates in load bearing and stress distribution. Compared with traditional single-layer belts, this structure helps reduce local stress concentration, improve running balance and enhance resistance to fatigue deformation during long-term operation.

2. Reliable Solution for Low-Vibration Industrial Transportation

With layered rubber isolation and a uniform structural design, YUFENG Multi-Ply Belt provides stable tracking, controlled vibration and consistent conveying performance. It is suitable for industrial production lines requiring continuous operation, stable material transportation and reduced maintenance frequency.

Contact YUFENG for Multi-Ply Conveyor Belt Solutions

1. Free Samples and Authentic Test Reports

If you need high-stability YUFENG Multi-Ply Conveyor Belt for long-cycle continuous bulk material conveying lines, we can provide free samples, authentic stability test reports and factory-direct quotations. Our technical team can also recommend suitable belt structures according to conveying materials, operating conditions and equipment parameters.

2. Global Customized Supply Service

YUFENG provides standard multi-ply conveyor belts and customized layered structural belts for customers worldwide. With factory-direct production capability, verified performance data and practical industrial application experience, we provide conveying solutions for grain, chemical, cement, aggregate and general mining applications.

Contact YUFENG today for a customized Multi-Ply Belt solution based on your conveying requirements.

FAQ

Q1: What is the core advantage of multi-ply belts over single-layer NN/EP belts?

A1: The essential difference lies in the force-bearing structure. Traditional NN and EP belts adopt single-layer integral force bearing, with concentrated stress and easy local fatigue. We adopts multi-layer layered force dispersion structure, with each fabric layer bearing load independently and cooperatively.

It solves the problems of jitter, deviation and partial aging of single-layer belts, and is more suitable for long-term uninterrupted continuous conveying scenarios with higher operational stability and longer overall service life.

Q2: Will multi-layer structure cause increased interlayer friction and delamination?

A2: Qualified layered structure will not have such problems. Inferior multi-ply belts lack interlayer isolation technology, resulting in direct friction between fabrics and rapid delamination. We add exclusive elastic isolation rubber layer between each ply, which buffers internal friction and fits tightly after integral vulcanization.

With strict layered tension calibration, no relative sliding occurs between layers during operation, fundamentally avoiding interlayer friction and hollowing failure.

Q3: How to choose the number of plies for multi-ply conveyor belts?

A3: The ply number is matched according to actual conveying load, belt width and operation cycle. 2-3 plies are suitable for light and medium-load conventional material conveying; 4-6 plies are customized for medium-heavy load and long-time continuous operation.

As a professional factory, we provide free professional structural matching services, recommending the most cost-effective ply specification and structural scheme according to customers’ on-site working conditions to avoid over-configuration or insufficient strength.
