Rubber Ring Impact Idler Roller

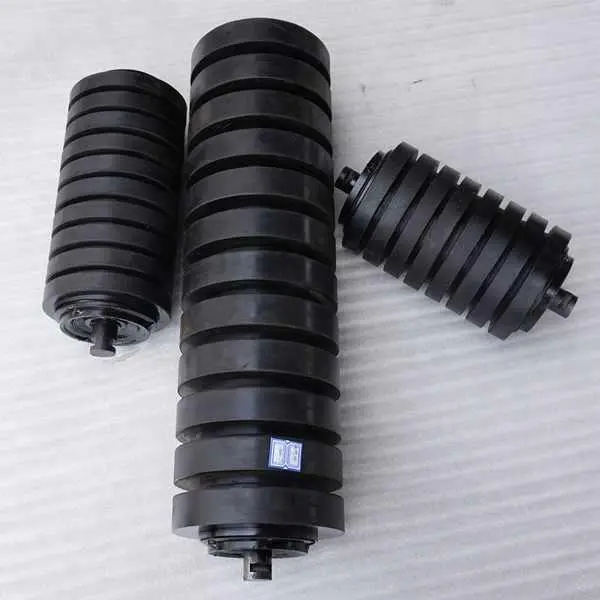

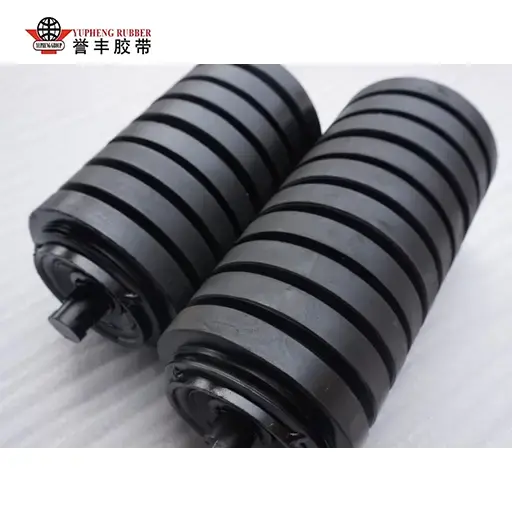

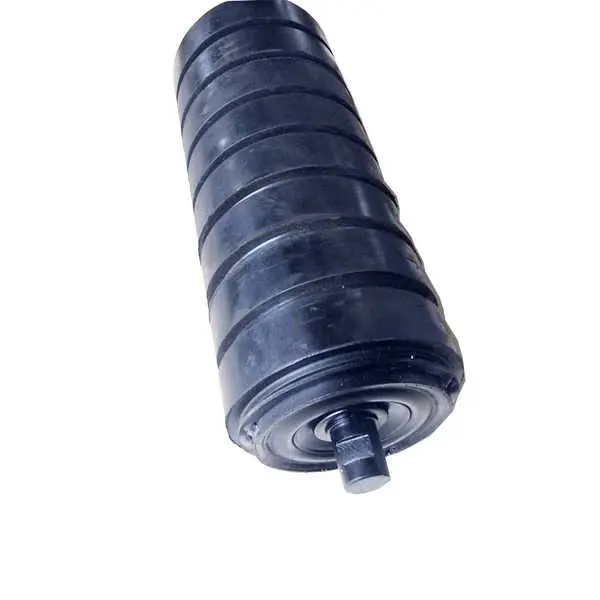

YUFENG Rubber Ring Impact Idler Roller is a dedicated buffer conveyor component independently developed and mass-produced by our factory, exclusively optimized for high-impact loading chute sections where lump ore, coal and stone drop vertically. Different from traditional full-smooth steel impact idlers that transmit all falling force directly to the conveyor belt, this idler equidistantly installs thick elastic rubber rings on the seamless steel roller shell. The segmented rubber cushions deform elastically under heavy impact to disperse concentrated pressure into a wide contact area, eliminating local stress spikes that cause belt punctures and longitudinal tearing. It serves as the essential matching part for heavy-load bulk conveying lines with high drop heights, completely filling the performance gap of common steel idlers lacking shock-buffering capacity.

Material & Production Craft

All raw materials of YUFENG Rubber Ring Impact Idler Roller undergo strict incoming inspection from qualified suppliers. The roller shell uses thickened Q235 seamless carbon steel with full hot-dip galvanization for improved resistance to muddy water, alkaline ash and coastal salt fog. The buffer rings are made from NR/SBR blended rubber with a hardness of 65±5 Shore A, providing elastic cushioning, wear resistance and long-term deformation resistance under repeated impact.

Rubber Ring Material & Impact Protection

The segmented rubber rings use 65±5 Shore A NR/SBR blended rubber to absorb repeated impact from falling materials. Their elastic structure helps distribute concentrated loads across the belt surface, reducing the risk of puncture, tearing and permanent deformation during continuous loading operations.

Roller Sealing & Bearing Protection

The 45# solid steel shaft is CNC-machined and matched with C3-clearance deep-groove ball bearings filled with high-temperature lithium grease. Triple-channel nylon labyrinth seals and double outer rubber dust rings create multiple protection barriers against mineral dust, muddy water and moisture.

Factory Inspection & Quality Control

Before delivery, each finished idler undergoes concentricity calibration, rotational resistance testing, muddy-water sealing simulation and repeated impact fatigue testing. These procedures help verify structural stability and reliable rotation before the products are shipped to industrial loading applications.

Field Test Data & Industry Pain Point Comparison

YUFENG conducted six months of continuous field tracking in open-pit quarries, underground coal mines and cement raw-material conveying lines. Rubber Ring Impact Idler Rollers were compared with conventional smooth steel impact idlers under similar high-drop bulk material conditions.

Impact Absorption Performance

Field records showed that the segmented rubber ring structure absorbed more than 60% of the measured impact energy, helping reduce direct impact transmission from large lump materials to the conveyor belt and idler frame.

Belt Protection & Maintenance Results

During the six-month tracking period, tested conveyor lines recorded 72% fewer belt puncture and tearing incidents, a 35% longer belt service cycle and 65% less loading-zone maintenance downtime compared with the previous operating condition.

Performance Comparison

Real Industrial Project Application Cases

Open-Pit Iron Ore Loading Project

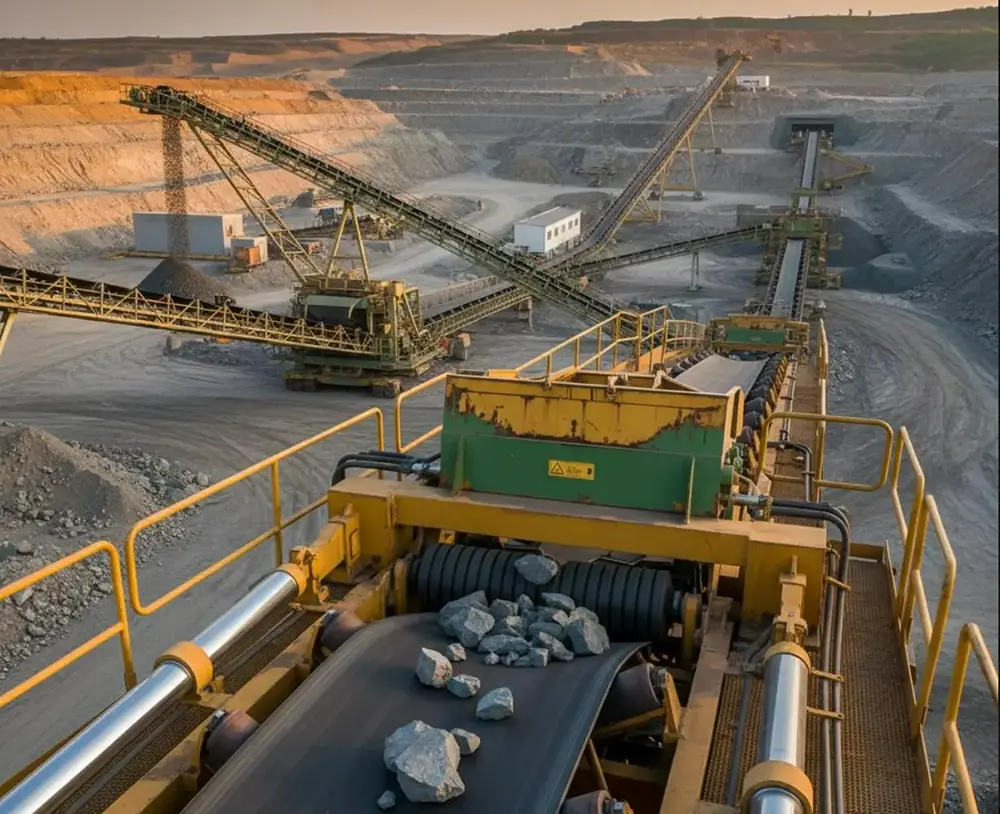

In an Inner Mongolia open-pit iron ore project, conventional steel impact idlers were previously installed beneath a 4-meter drop chute. Large ore lumps frequently caused conveyor belt punctures and repeated patch repairs. After upgrading the loading zone with YUFENG Rubber Ring Impact Idler Rollers, belt puncture incidents were substantially reduced and weekly patch maintenance was discontinued. Recorded monthly belt repair and procurement costs decreased by 61%.

Cement & Bulk Material Transfer Lines

YUFENG rubber ring impact idlers are also suitable for cement raw-material conveying, stone unloading and coal feeding systems where large or irregular materials generate concentrated impact at transfer points. The elastic rings help protect the belt while the sealed roller structure supports stable operation in dusty industrial environments.

Project Verification Support

YUFENG can provide product specifications, factory inspection records, installation photographs and available field operation documentation to support customer technical evaluation, equipment selection and project bidding.

Complete Product Specification Parameters

Why Choose YUFENG Factory Products

Integrated Manufacturing Capability

YUFENG controls key production processes in-house, including roller tube processing, rubber ring forming, bearing assembly and finished-product inspection. This integrated workflow helps maintain consistent dimensions, rubber ring installation quality and overall assembly performance across different production batches.

Focused Solution for Loading Zone Problems

Our Rubber Ring Impact Idler Roller is designed for transfer points where falling coal, ore, aggregate and other bulk materials can cause belt puncture, tearing and excessive vibration. The elastic rubber rings cushion impact while the multi-stage sealing structure protects the bearing assembly, helping reduce maintenance interruptions and replacement frequency.

Factory Direct Service & Project Support

YUFENG provides factory-direct pricing, technical consultation, customized drawings and sample support. Customized products can be evaluated through impact and sealing tests before shipment, while large-volume orders are scheduled according to production capacity to support stable project delivery.

Frequently Asked Questions

Q1: What is the core difference between Rubber Ring Impact Idler Roller and ordinary smooth steel impact idlers?

The main difference is the cushioning structure. Smooth steel idlers transfer falling impact directly to the conveyor belt, while YUFENG Rubber Ring Impact Idler Rollers use segmented elastic rubber rings to absorb and distribute impact energy. This makes them particularly suitable for high-drop loading points handling large lump materials.

Q2: What customization services are available?

We support customization of roller diameter, effective length, rubber ring thickness and spacing. Special options such as EPDM rubber rings, reinforced structures and stainless steel roller components are also available for high-temperature, corrosive or coastal applications.

Q3: What daily maintenance is required?

Routine maintenance mainly involves checking rubber rings for cracking or abnormal wear and confirming that each roller rotates smoothly. Regular inspection of the frame, sealing components and bearing condition can help identify potential failures before they affect conveyor operation.

Request a Factory Quotation

If you need impact buffer idlers for high-drop loading chutes, contact YUFENG for product samples, customized specifications, technical drawings and a factory-direct quotation. Our engineering team can recommend a suitable rubber ring configuration according to your material size, drop height, belt width and operating conditions.
