Abrasion Resistant Conveyor Belt

Unlike ordinary rubber conveyor belts that quickly lose surface rubber under continuous friction and impact, YUFENG develops advanced abrasion-resistant rubber compounds and reinforced structures to extend service life. Under the same working conditions, YUFENG Abrasion Resistant Conveyor Belts can achieve 2–4 times longer service life, helping customers reduce replacement frequency, production downtime and total operating costs.

Each belt undergoes standardized abrasion testing, tensile strength testing and interlayer adhesion testing before shipment. YUFENG provides customized solutions with belt widths from 500mm to 3200mm, cover thickness from 3mm to 15mm, and composite performance options according to different working environments.

Why Conveyor Belts Fail Under Abrasive Conditions

1. Cutting and Friction Damage From Hard Materials

In mining and quarry applications, materials such as granite, iron ore and crushed stone continuously create cutting and scraping forces on the rubber surface. Over time, these forces remove the cover layer and reduce belt service life.

YUFENG optimizes rubber formulation by balancing abrasion resistance, elasticity and tear resistance. Instead of simply increasing rubber hardness, the compound is designed to resist cutting damage while maintaining flexibility under impact conditions.

2. Impact Damage From Heavy Materials

Large materials falling onto the conveyor belt create repeated impact forces, which may cause internal cracks, cover separation and structural damage.

YUFENG integrates an elastic impact absorption layer between the cover rubber and carcass structure. This design reduces stress concentration and helps improve belt service life by approximately 25–35% under high-impact loading conditions.

YUFENG Wear Protection Technology

1. High Abrasion Rubber Cover Compound

The cover rubber directly contacts abrasive materials and determines the basic wear performance of the belt. YUFENG uses natural rubber (NR), styrene-butadiene rubber (SBR), high-abrasion carbon black and wear-resistant fillers to improve resistance against cutting, friction and surface loss.

The rubber compound provides a balance between wear resistance and impact absorption. According to different material conditions, YUFENG offers multiple abrasion grades.

The rubber tensile strength reaches ≥20MPa, providing strong resistance against cutting and tearing from sharp materials.

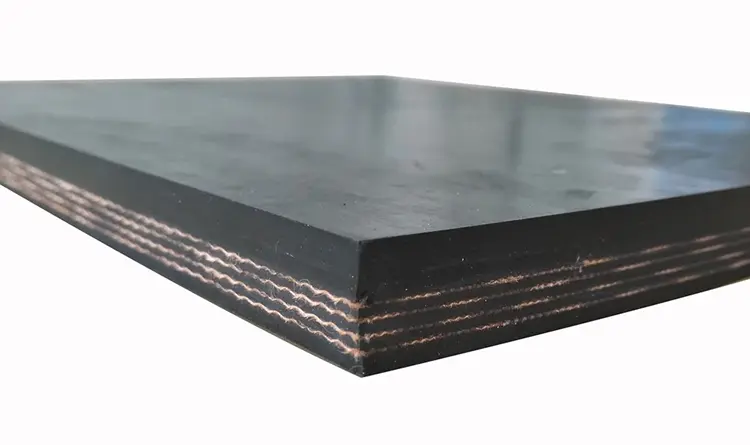

2. Impact Absorption and Anti-Tear Reinforced Structure

For heavy-duty conveying applications, abrasion resistance alone is not enough. The internal reinforcement structure determines whether the belt can continue operating after impact damage occurs.

YUFENG uses high-strength EP canvas combined with anti-tear reinforcement layers to improve puncture resistance, dimensional stability and load-bearing capability.

This reinforced structure helps maintain stable operation when transporting sharp ores, rocks and construction materials.

Wear Grade Selection Guide

Choosing the correct abrasion-resistant belt depends on material hardness, particle size, impact level and operating conditions. Selecting the right grade helps customers achieve longer service life and better cost efficiency.

Laboratory Testing and Performance Verification

YUFENG verifies product performance through standardized laboratory testing, including Akron abrasion testing and drum abrasion simulation.

Akron abrasion test results:

In drum abrasion simulation using 10–20mm granite gravel under 100 hours continuous operation, the results showed:

These test results demonstrate YUFENG’s ability to provide reliable wear protection for harsh industrial conveying environments.

Real Application Cases

1. Granite Quarry Heavy Impact Project

A granite quarry operated six conveying lines transporting 20–50mm granite blocks. The previous general-purpose belts suffered severe cover wear and frequent replacement, with an average service life of only 4–5 months.

YUFENG supplied Heavy-duty Impact Resistant Conveyor Belts for the application. After 12 months of continuous operation, the average belt service life reached 16 months, replacement frequency decreased by 70%, and annual belt purchasing and downtime costs were reduced by approximately USD 45,000.

2. Australia Coal Port Terminal Project

A coal terminal in Australia handled approximately 15 million tons of coal annually with continuous 24-hour operation. The customer required longer belt service life while reducing replacement costs.

YUFENG supplied Standard Grade Abrasion Resistant Conveyor Belts optimized for coal handling. After a 6-month trial, the belts operated continuously for 22 months with stable performance.

Compared with imported solutions, purchasing cost was reduced to less than 60%, and the customer expanded the application to 12 additional conveying lines.

Technical Specifications

Why Choose YUFENG Factory

1. Professional Manufacturing Capability

YUFENG specializes in industrial rubber conveyor belt manufacturing with 18 years of production experience. The factory operates 5 automatic vulcanization production lines and supports large-volume orders as well as customized belt development.

2. Quality Control and International Standards

Every belt is inspected before shipment through abrasion testing, tensile testing, interlayer adhesion testing and structural evaluation.

YUFENG products comply with international requirements including:

Frequently Asked Questions

1. How Long Can an Abrasion Resistant Conveyor Belt Last?

Service life depends on material hardness, impact level, operating hours and maintenance conditions.

Under normal conditions:

· Grain and cement: 24–36 months

· Coal and sand: 18–24 months

· Iron ore and granite: 12–18 months

· Extreme abrasive materials: 8–14 months

Compared with ordinary belts, YUFENG solutions can provide 2–4 times longer service life under similar operating conditions.

2. How Should Customers Select the Correct Wear Grade?

Customers should consider material type, particle size, impact height, conveying speed and expected service life.

Standard Grade is suitable for coal and sand applications, while Heavy-duty and Super-duty grades are recommended for iron ore, granite and sharp rock transportation.

3. Can YUFENG Customize Additional Functions?

Yes. YUFENG provides customized composite solutions including abrasion + heat resistance, abrasion + oil resistance, abrasion + flame resistance and abrasion + cold resistance.

Choose YUFENG for Long-Life Abrasive Material Conveying

YUFENG Abrasion Resistant Conveyor Belt provides reliable wear protection for mining, quarry, port, coal and heavy industrial applications.

With advanced rubber technology, laboratory verification, customized manufacturing capability and global supply experience, YUFENG helps customers reduce downtime, lower maintenance costs and improve long-term conveying efficiency.

Contact YUFENG today for technical datasheets, samples and factory-direct quotation.
