Flame Resistant Conveyor Belt

Unlike ordinary rubber conveyor belts that may ignite easily and allow flames to spread along the conveying route, YUFENG Flame Resistant Conveyor Belt provides integrated fire safety protection through flame suppression technology, static control design and reinforced belt construction.

YUFENG products have been successfully applied in more than 32 countries across mining, chemical, energy and heavy industries. Every belt is tested before shipment according to international safety requirements, including MT 914, ISO 340, EN 12882, SGS and BV verification standards.

Why Industrial Buyers Choose Flame Resistant Belt?

1. Conveyor Fire Risk Comes From More Than Ignition

In high-risk industries, conveyor belts operate continuously near combustible materials such as coal dust, chemical products and flammable industrial materials. Once a conventional rubber belt catches fire, flames can quickly spread along the belt surface, creating serious risks to equipment, production continuity and personnel safety.

For this reason, purchasing decisions should not focus only on whether a belt can resist ignition. A reliable flame-resistant conveyor belt must also control flame propagation, reduce smoke generation, prevent static discharge and maintain structural strength during fire exposure. YUFENG focuses on complete fire safety performance rather than adding simple flame retardants into rubber materials.

YUFENG Fire Safety Technology System

1. Multi-Stage Flame Retardant Rubber System

The cover rubber of YUFENG Flame Resistant Belt uses chloroprene rubber (CR) as the base material combined with a multi-stage flame retardant system.

The gas-phase flame retardant component captures free radicals during combustion and interrupts the combustion chain reaction. The condensed-phase system forms a protective carbon layer when heated, reducing oxygen contact and heat transfer.

The formula also integrates smoke suppression additives, reducing smoke generation by approximately 40% compared with ordinary flame-resistant belts. A halogen-free flame retardant option is available for applications requiring lower smoke toxicity.

Key flame protection performance:

2. Anti-Static Conductive Network Protection

Static electricity is an important safety concern in underground mining, chemical plants and combustible dust environments.

During operation, friction between the conveyor belt and transported materials may generate static charges. Without effective conductivity, accumulated static electricity can create sparks capable of igniting flammable gases, dust or vapors.

YUFENG integrates conductive carbon black networks throughout the rubber compound to maintain stable electrical conductivity.

Anti-static performance data:

The conductive structure helps prevent static accumulation throughout the service life of the belt.

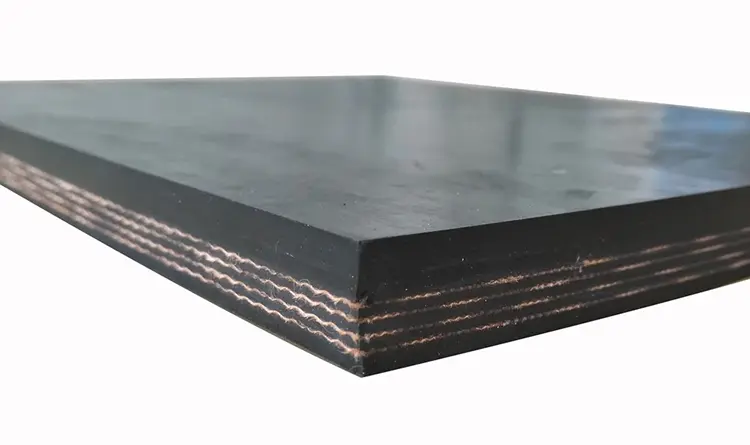

3. Fire-Resistant Reinforced Carcass Structure

During a fire incident, maintaining belt integrity is essential for preventing conveyor system failure. YUFENG uses high-strength EP canvas with fire-resistant impregnation treatment to improve structural stability under flame exposure.

The reinforced carcass provides:

This design helps reduce risks of belt separation and sudden conveyor shutdown during emergency conditions.

Safety Grade Classification

YUFENG provides different flame-resistant conveyor belt safety grades according to industry risks, operating conditions and applicable regulatory requirements. Customers can select the appropriate belt grade based on fire exposure, static electricity risk, conveying materials and installation environment.

For special working environments, YUFENG can provide customized compound combinations such as flame + heat resistance, flame + oil resistance and flame + abrasion resistance.

1. Available Customization Options

Fire Performance Test Results and Certification Data

YUFENG Flame Resistant Belts undergo factory safety testing covering flame behavior, combustion control, surface resistance and mechanical performance. Testing can be arranged according to the applicable product grade and customer requirements.

2. Alcohol Burner Test

YUFENG Mining-grade Flame Resistant Conveyor Belt can be evaluated using alcohol burner testing according to applicable GB/T 3685 and MT 113 requirements. The referenced test uses a 95% ethanol burner with a 60 mm flame height and a 30-second exposure period.

These results indicate rapid flame extinction and controlled combustion behavior under the stated test conditions.

3. Propane Burner Test

The propane combustion test evaluates flame propagation control under a more severe fire exposure condition and can be performed according to ISO 340 and applicable EN 12882 requirements.

Safety Comparison

For safety-critical conveying systems, buyers need to evaluate more than basic flame resistance. Flame propagation, static control, smoke generation and mechanical strength under fire exposure are also important factors when selecting a conveyor belt.

Real Application Verification in High-Risk Industries

1. Shanxi Underground Coal Mine – Mining Safety Upgrade Project

A coal mine in Shanxi operated 12 underground conveyor lines under strict fire-safety requirements. The customer previously used conventional flame-resistant belts but required more stable anti-static and flame-propagation performance. In 2022, the customer selected YUFENG Mining-grade Flame Resistant Belt for an underground conveyor safety upgrade.

The project provided long-term operating verification of the belt's flame-resistant and anti-static performance in an underground mining environment.

2. Jiangsu 600 MW Thermal Power Plant – Coal Conveying System

A 600 MW thermal power plant required flame-resistant conveyor belts for coal transportation under high dust concentration and elevated fire-risk conditions. Imported belts provided reliable safety performance but involved higher purchasing costs, while lower-cost alternatives showed inconsistent fire performance and service life.

YUFENG supplied General-Purpose Flame Resistant Belt with enhanced abrasion resistance for the coal conveying system.

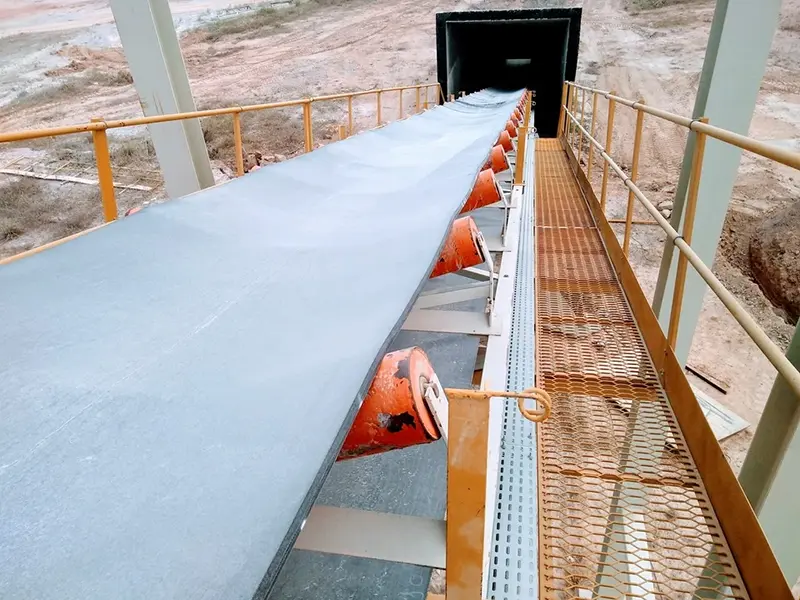

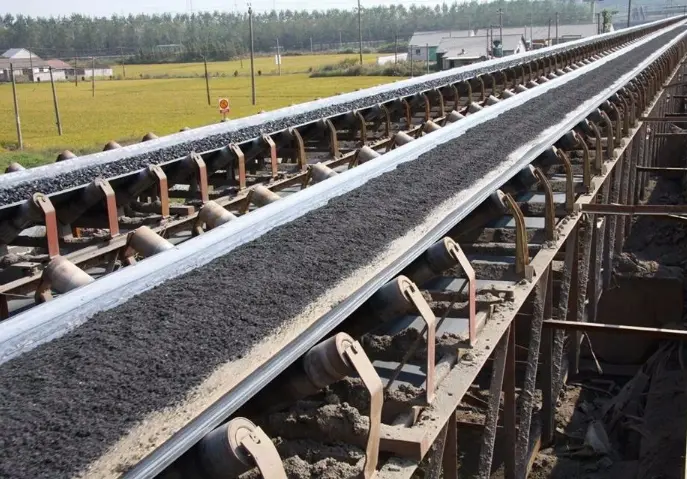

Typical Applications

1. Underground Coal Mining

Underground mining requires high levels of conveyor fire protection because enclosed spaces and limited ventilation can increase the consequences of a belt fire. YUFENG Mining-grade belts are suitable for underground main roadway conveyors, coal face transportation systems, coal bunker feeding systems and mine material handling equipment. MT 914 certification support and anti-static performance are available for applicable mining specifications.

2. Chemical and Petrochemical Industries

Chemical plants may transport combustible materials, chemical powders and flammable products where flame resistance and static control are both important. YUFENG belts can be configured for chemical production lines, flammable material conveying systems, dust-risk handling areas and petrochemical processing facilities. Flame + oil-resistant and flame + heat-resistant compounds are available for specialized operating conditions.

3. Thermal Power Plants and Energy Facilities

Coal-fired power plants and biomass energy facilities handle large quantities of combustible materials. YUFENG flame-resistant belts are suitable for coal receiving systems, fuel conveying lines, boiler feeding systems and biomass transportation, combining fire protection with the abrasion resistance required for continuous bulk-material handling.

4. Ports, Steel Mills and Heavy Industries

Ports and steel plants frequently handle coal, coke and other combustible bulk materials. YUFENG provides flame-resistant belt solutions for bulk material terminals, coke conveying systems, metallurgical raw material transportation and industrial warehouse conveying, with optional abrasion-resistant compounds for demanding applications.

How to Select the Right Flame Resistant Conveyor Belt

1. Select According to Fire Risk Level

Selecting the appropriate safety grade helps customers meet application requirements without unnecessarily increasing equipment costs.

2. Select Additional Functions According to Operating Conditions

Customers can also customize belt width, cover thickness, reinforcement structure and edge design according to conveyor conditions.

3. Confirm Certification and Testing Documents Before Purchase

For safety-critical applications, buyers should verify the supplier's testing capability and obtain the relevant technical documentation before bulk purchasing.

YUFENG Manufacturing Capability and Quality Assurance

1. Professional Flame Resistant Belt Production

YUFENG operates five automatic vulcanization production lines with dedicated flame-resistant conveyor belt manufacturing facilities. The production system supports both large-volume industrial orders and customized development projects.

2. Strict Quality Inspection Before Shipment

Every YUFENG Flame Resistant Conveyor Belt undergoes safety and mechanical performance verification before delivery. Inspection can include alcohol burner testing, propane combustion testing, surface resistance testing, tensile strength testing, interlayer adhesion testing and appearance inspection. Complete technical reports can be provided to support customer quality management and safety compliance requirements.

3. International Certifications and Global Experience

YUFENG products are developed for international industrial applications and can be supplied with applicable testing and verification documents according to customer requirements, including MT 914, ISO 340, EN 12882, ISO 9001, SGS testing and BV factory audit documentation.

Sample Testing, Warranty and Technical Support

1. Sample Testing Service

Before bulk purchasing, customers can request YUFENG Flame Resistant Belt samples for laboratory evaluation or on-site application testing. Customers only need to provide their conveying material, operating conditions and testing requirements, allowing YUFENG engineers to recommend a suitable belt grade and specification.

2. Customized Technical Support

YUFENG provides engineering support based on material characteristics, fire-risk level, conveyor design, operating temperature and required certifications. The technical team helps customers select the appropriate flame-resistant formulation, reinforcement structure and belt specification before production.

3. 12-Month Quality Warranty

YUFENG provides a 12-month quality warranty for applicable Flame Resistant Conveyor Belt products under normal operating conditions. During the warranty period, technical support can cover manufacturing quality analysis, technical consultation, installation guidance and application troubleshooting.

Why Choose YUFENG Flame Resistant Belt

YUFENG combines flame-resistant rubber formulation, automatic vulcanization, safety testing and application engineering to provide conveyor belt solutions for mining, power generation, chemical processing, ports and other high-risk industries. From grade selection and compound customization to testing documentation and after-sales technical support, YUFENG provides factory-direct service for both standard and customized requirements.

Need a flame-resistant conveyor belt for coal mining, power plants, chemical processing or other high-risk applications? Contact YUFENG today for technical specifications, sample testing and the latest factory quotation.

Frequently Asked Questions

1. Is Flame Resistant Conveyor Belt Completely Fireproof?

No. Flame-resistant means the conveyor belt is designed to limit flame propagation and self-extinguish after the external flame source is removed. It does not mean the belt can withstand unlimited direct fire exposure.

The purpose of a flame-resistant conveyor belt is to slow fire development, reduce the risk of flame spreading along the conveyor system, and provide additional response time during fire emergencies.

2. What Is the Difference Between Mining Grade and General-Purpose Grade?

Mining-grade belts are designed for underground environments with stricter fire-safety requirements. They typically require higher flame resistance, reliable anti-static performance and compliance with applicable mining standards such as MT 914.

General-purpose flame-resistant belts are intended for surface industrial applications such as power plants, ports and warehouses where standard flame protection is required.

3. Can YUFENG Combine Flame Resistance With Other Functions?

Yes. YUFENG can develop combined-performance conveyor belts according to the operating environment. Available options include flame + heat resistance, flame + oil resistance, flame + wear resistance and flame + cold resistance.

These customized formulations allow customers to address fire safety together with temperature, oil, abrasion or low-temperature requirements.

4. What Information Should Buyers Provide for a Quotation?

To recommend a suitable Flame Resistant Belt, customers should provide the belt width and length, conveyor application, transported material, operating temperature, fire-safety requirements and required standards or certifications.

Based on these parameters, YUFENG engineers can recommend the appropriate belt structure, strength grade, cover thickness and performance formulation before providing a factory quotation.

Specification

YUFENG Flame Resistant Conveyor Belts are available in multiple EP fabric strength grades, ply configurations, cover thicknesses and widths. The following specifications can be customized according to conveyor design and application requirements.

The final belt specification should be selected according to conveying capacity, belt width, conveyor length, material characteristics, operating temperature, fire-risk level and applicable safety requirements. YUFENG can provide technical recommendations and customized specifications for different industrial applications.

Choose YUFENG for Certified Fire-Safe Conveyor Solutions

For industries where conveyor fire safety, compliance and operational reliability are critical, YUFENG Flame Resistant Belt provides a proven solution backed by 18 years of safety-critical rubber manufacturing experience.

With verified fire test data, anti-static protection technology, customized production capability and global application experience, YUFENG helps customers build safer and more reliable conveying systems.

Contact YUFENG today to request technical datasheets, free samples and factory-direct quotation for your flame-resistant conveyor belt project.
