Fabric Bucket Elevator Belt

YUFENG Fabric Bucket Elevator Belt is a lightweight solution for 20–60m vertical lifting applications. Built with multi-layer dipped EP/NN fabric, it combines reliable tensile strength, flexibility and cost efficiency while reducing the weight and expense of steel cord belts. Its excellent bending performance and easy punching make it ideal for grain, chemical powder and other medium-load bucket elevator systems.

Designed for Reliable Vertical Material Elevation

1. Stable Belt Performance in Vertical Conveying

YUFENG Fabric Bucket Elevator Belt is designed for vertical conveying systems where the belt must continuously carry material and buckets under upward tension. The multi-layer EP or NN fabric carcass provides balanced tensile support while maintaining sufficient flexibility for smooth movement around the head and tail pulleys. This structure is particularly suitable for medium-load bucket elevators where excessive belt weight is unnecessary.

2. Reinforced Bucket Connection Area

The bucket fixing area is one of the most highly stressed sections of an elevator belt. YUFENG uses a high-strength cover rubber formulation around the bolt holes to reduce edge cracking and local tearing caused by repeated bucket loading and unloading. Pre-punched configurations can also be produced according to bucket dimensions, hole spacing and installation requirements, reducing adjustment work during assembly.

Optimized for Medium-Height Elevator Systems

1. Practical Alternative to Heavy Steel Cord Belts

For bucket elevators with moderate lifting heights and material loads, a fabric belt can provide a more practical balance between tensile capacity, flexibility and system weight. Compared with heavier steel cord constructions, the multi-fabric structure places less additional load on the elevator drive system while remaining suitable for continuous vertical material handling.

2. Suitable for Different Bulk Materials

The belt can be configured for grain, feed, fertilizer, chemical powders, limestone particles and other dry bulk materials. Its flexible carcass allows the belt to follow the elevator's running path smoothly, while the reinforced bucket attachment area helps maintain stable bucket positioning during repeated lifting cycles.

Installation and Maintenance Considerations

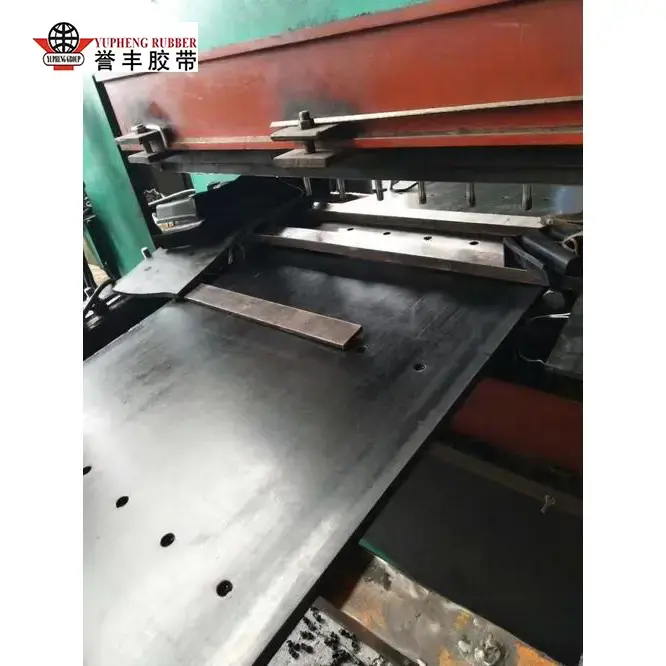

1. Pre-Punched Configuration for Faster Assembly

YUFENG supports factory punching based on bucket type, bolt diameter, hole spacing and edge distance. Accurate hole positioning helps simplify bucket installation and reduces the need for secondary drilling that could damage the internal fabric structure. For replacement projects, customers can provide the original belt or bucket drawing for dimensional matching.

2. Routine Inspection of Bucket Fixings

During operation, attention should be given to bolt tightness, hole-edge condition and belt tracking. Regular removal of accumulated material from the elevator casing can also reduce additional resistance and impact on the belt. For long-running systems, periodic inspection of the bucket connection area helps identify early signs of wear before they develop into larger belt failures.

Application Range for Vertical Bulk Handling

1. Grain and Agricultural Processing

The belt is suitable for vertical transportation of wheat, corn, rice, seeds, feed and other agricultural bulk materials in grain processing plants, storage facilities and feed production lines. Its moderate flexibility makes it suitable for frequent continuous lifting operations.

2. Light Industrial Material Elevation

It can also be applied to vertical handling of fertilizer, chemical powders, limestone particles and other relatively light bulk materials. For these applications, the fabric construction provides a practical solution where medium lifting height and moderate conveying capacity are required.

Specification Matching & Custom Manufacturing

1. Belt Structure Selection

Depending on lifting height, bucket loading, conveying capacity and operating frequency, YUFENG can recommend different EP or NN fabric constructions and suitable numbers of fabric plies. Cover rubber thickness and belt dimensions can also be matched to the actual elevator design.

2. Bucket Hole and Dimension Customization

Factory punching is available for different bucket arrangements and fixing methods. Customers can provide bucket drawings, existing belt dimensions or elevator specifications, and the production team can prepare the corresponding hole layout and belt configuration before manufacturing.

Complete Product Specification Parameters

Factory Expertise for Fabric Bucket Elevator Belts

1. Integrated Manufacturing and Processing

YUFENG has more than 10 years of experience in the development and production of Fabric Bucket Elevator Belts. The manufacturing process covers canvas preparation, rubber compounding, belt forming, vulcanization and precision punching, allowing the factory to maintain consistent control over belt structure and bucket fixing dimensions throughout production.

2. Belt Selection Based on Elevator Requirements

Instead of using one standard construction for different elevators, YUFENG selects the fabric type and number of plies according to lifting height, bucket load, conveying capacity and operating frequency. This helps avoid unnecessary belt weight in medium-duty systems while providing sufficient tensile support for continuous vertical conveying.

Practical Support for Elevator Belt Replacement

1. Specification and Installation Matching

For replacement projects, customers can provide existing belt dimensions, bucket drawings or elevator parameters. YUFENG can match belt width, thickness, fabric structure and bucket hole layout to the existing equipment, helping reduce installation adjustments and replacement downtime.

2. Technical Assistance After Delivery

Technical support covers belt installation, bucket fixing, tension adjustment and basic operating inspection. For bulk projects, the production schedule and specification details can be coordinated in advance to support planned maintenance and equipment replacement.

Cost-Efficient Solution for Medium-Duty Elevators

1. Balanced Alternative to Steel Cord Construction

For grain, feed and light industrial elevators that do not require the very high tensile capacity of steel cord belts, the multi-fabric structure provides a practical combination of strength, flexibility and manageable system weight. This makes it suitable for medium-height vertical conveying systems where overall equipment cost is an important consideration.

2. Factory Supply for Standard and Custom Orders

YUFENG supports standard specifications as well as customized belt dimensions and punching layouts. Factory production enables direct coordination of technical requirements, sampling and bulk orders, providing a straightforward supply option for elevator manufacturers, replacement-part distributors and end users.

Frequently Asked Questions

Q1: What are the main differences between Fabric Bucket Elevator Belt and steel cord elevator belts?

A1: The core difference lies in tensile carcass and cost positioning. YUFENG fabric elevator belt adopts multi-layer EP/NN canvas, light weight, low procurement cost, suitable for lifting height below 60m grain and light chemical lines. Steel cord elevator belts rely on steel wire tensile core, ultra-low elongation but high price, only recommended for over 60m heavy mineral vertical lifting. For medium-low height light materials, fabric elevator belts have higher cost performance.

Q2: Can we customize punching size and hole spacing on fabric elevator belts?

A2: Yes. Our factory is equipped with dedicated CNC punching equipment for elevator belts. Customers can provide bucket installation drawings, we adjust hole diameter, hole spacing and edge distance accurately, and control punching paths not to cut internal canvas fibers, all customized belts pass bolt fatigue test before delivery to match various bucket elevator models.

Q3: What daily maintenance can extend the service life of fabric elevator belts?

A3: Two key regular maintenance operations: Clean sticky powder residues attached to the belt surface weekly to prevent rubber aging corrosion; Inspect bolt hole edges for tiny cracks every month, replace severely worn small driving rollers in time to reduce repeated impact on punching positions, effectively slow down fabric delamination and hole cracking failure.
