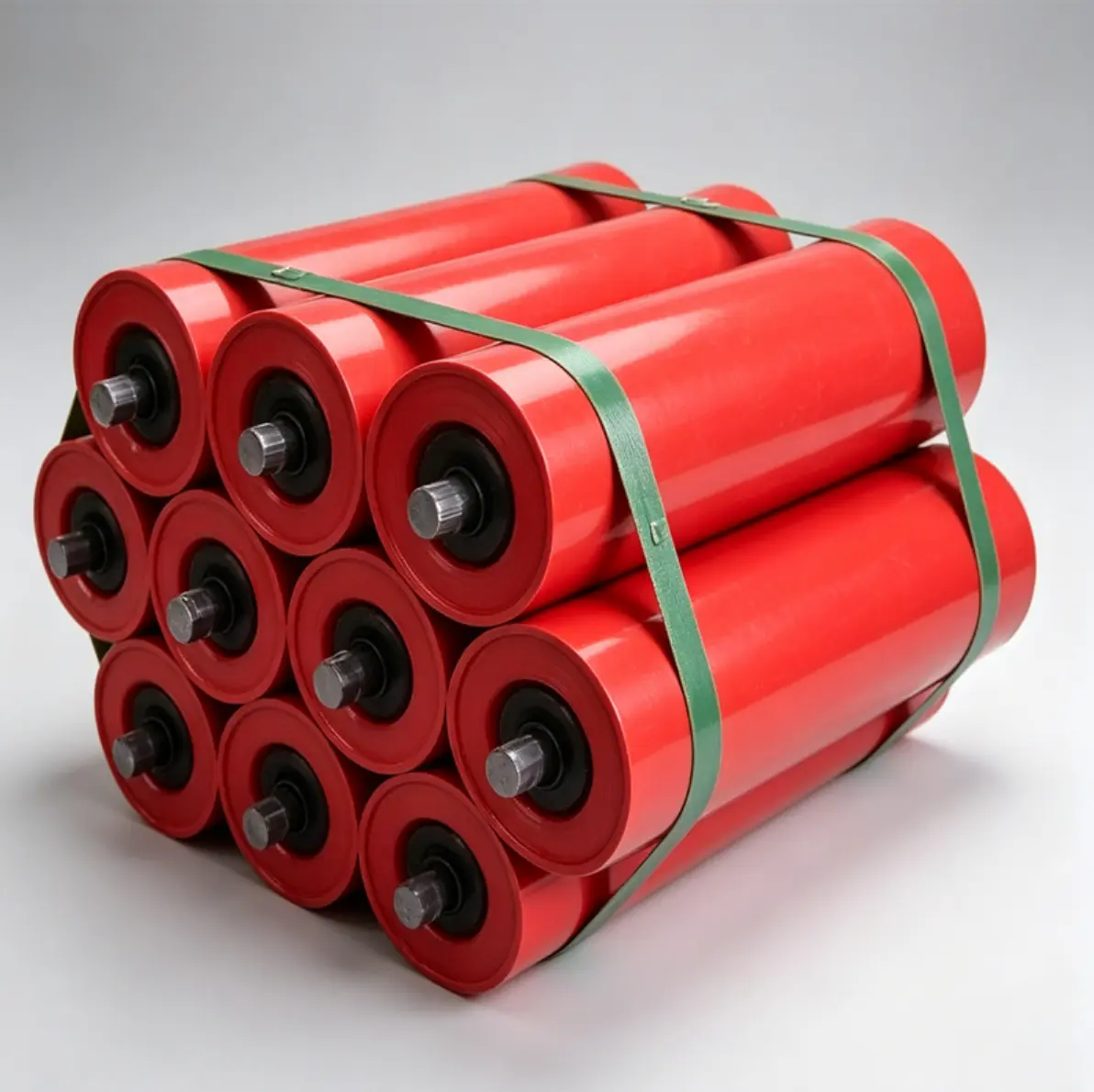

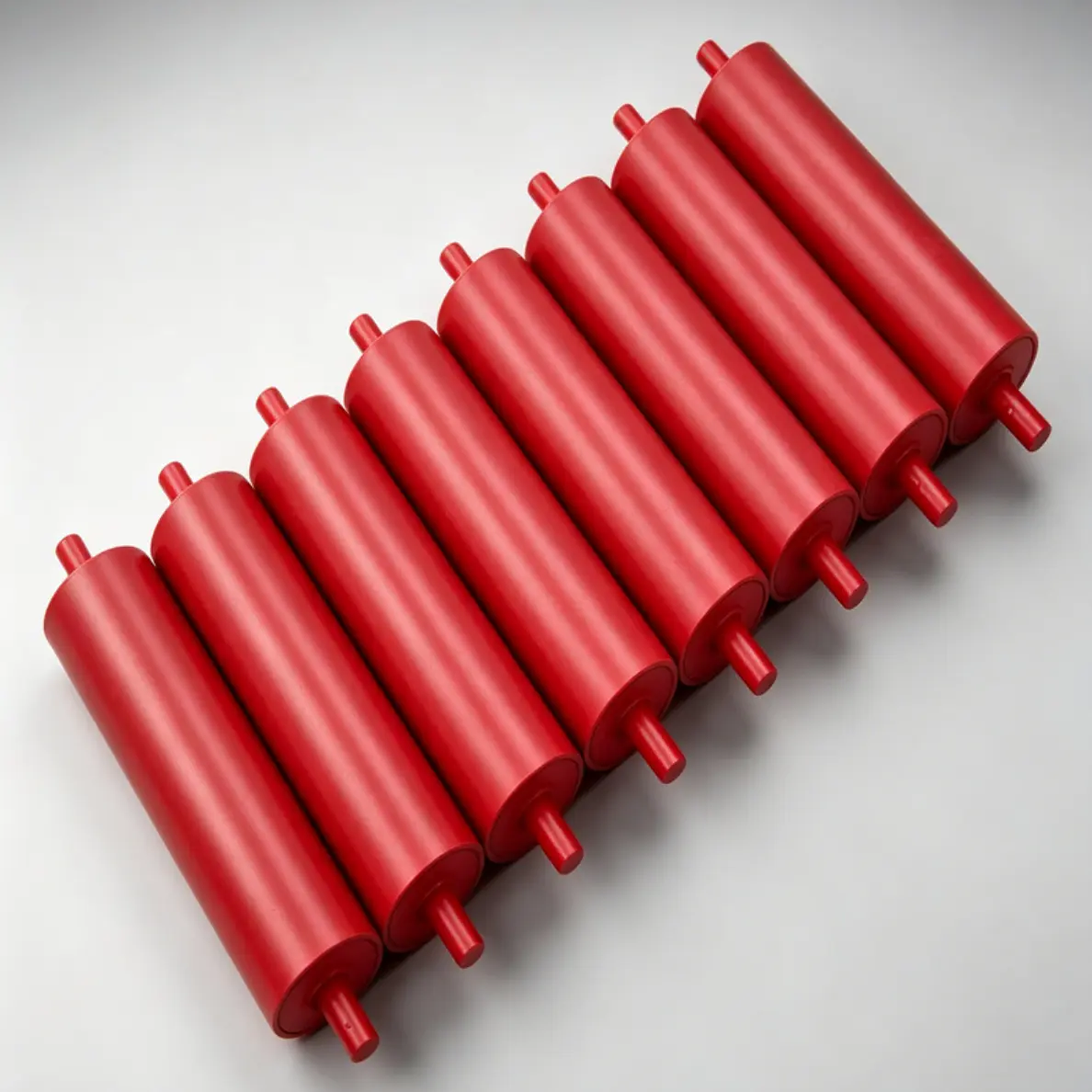

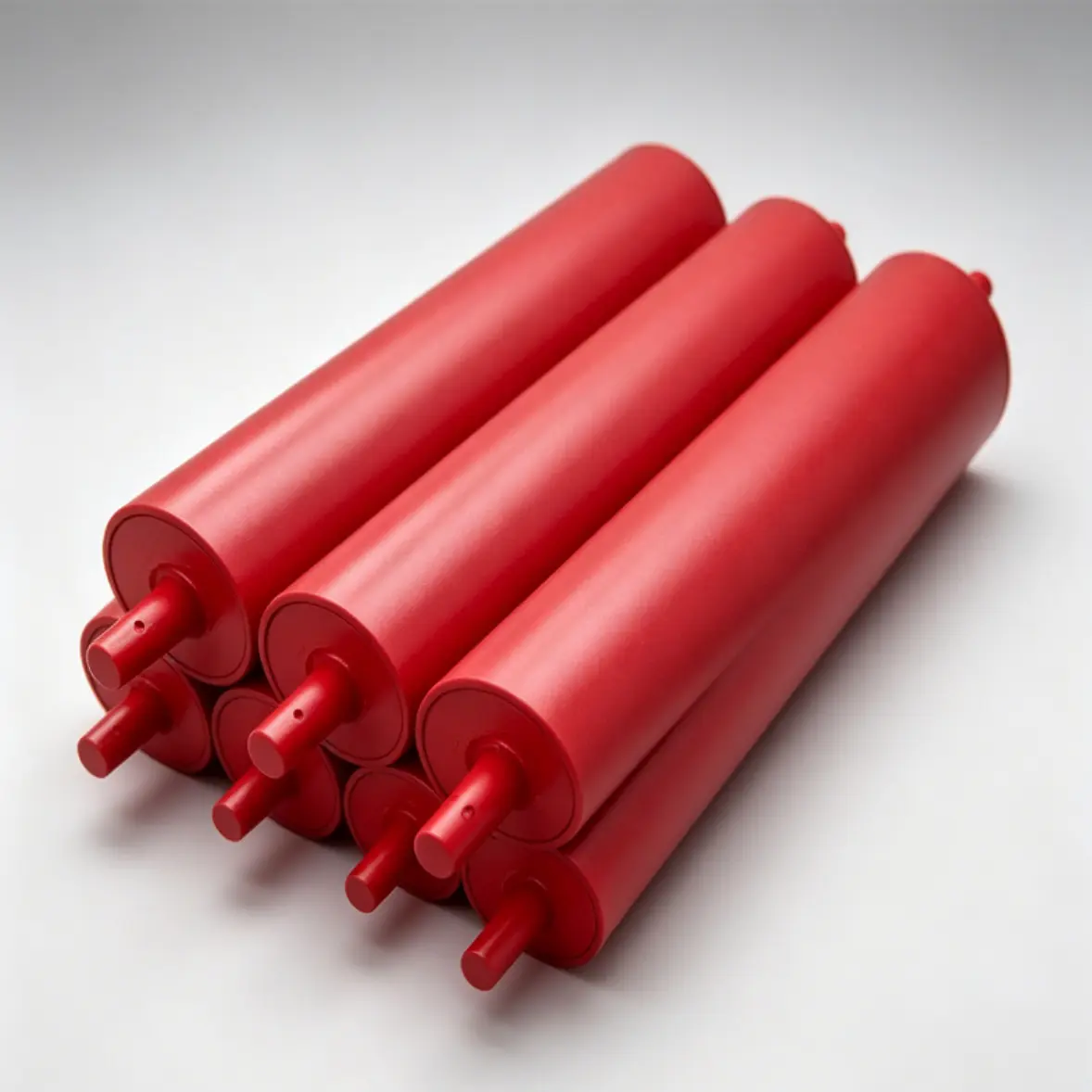

Flat Return Idler Roller

Built for dependable return-side conveyor support, YUFENG Flat Return Idler Roller combines high-strength steel construction, multi-layer labyrinth sealing and precision dynamic balancing. Manufactured under a closed-loop quality control process and aligned with DTII, TD75 and CEMA standards, it delivers stable, low-resistance operation with enhanced protection against dust and water for demanding industrial conveyor systems.

Five-Month On-Site Practical Performance Test

1. Real Working Conditions and Test Coverage

All performance indicators of our Flat Return Idler Roller come from uninterrupted field operation tests instead of empty marketing descriptions, providing practical operating evidence for long-term industrial applications.

2. Test Duration and Application Scenarios

The test lasted for 5 consecutive months of non-stop conveyor operation and covered underground coal mine return lines, outdoor cement production workshops, grain warehouse logistics conveyors and port bulk cargo conveying equipment. The test environments included high-dust, splash-water and normal dry industrial conditions, with continuous support for 800–1600mm wide empty return conveyor belts operating at belt speeds of 1.2–2.8m/s.

3. Core Test Conclusion

For return conveyor systems, uniform belt support and low rotation resistance are critical to long-term operating stability. The test results confirm the importance of roller structural consistency and smooth rotation in reducing belt wear, vibration and maintenance requirements.

Optimized Flat Cylindrical Structural Design

1. Comparative Field Test Performance

A two-week comparative field test between our Flat Return Idler Roller and ordinary low-cost return rollers showed clear performance differences during long-hour continuous operation. Ordinary return rollers developed local friction abrasion marks on the bottom conveyor belt after 60–90 hours of continuous running, while dust accumulation inside the bearing housing could cause rotation jamming. In comparison, YUFENG Idler Roller maintained uniform belt contact stress after more than 400 hours of daily non-stop operation, with no rotation-sticking failure under heavy-dust or occasional water-splash conditions.

2. Integral Flat Cylindrical Roller Body

The roller uses a precision-formed seamless steel tube with a smooth full-width contact surface. This structure distributes belt pressure evenly, reduces localized stress concentration and helps minimize premature belt surface wear and cracking.

3. Multi-Channel Labyrinth Composite Sealing

A nylon labyrinth outer seal combined with a grease-isolation inner seal creates a multi-stage protection structure that helps block coal ash, cement powder and rainwater from entering the bearing cavity, supporting stable bearing lubrication during continuous conveyor operation.

4. Central Gravity Balance Calibration

After assembly, each roller undergoes dynamic balancing correction, with radial runout controlled below 0.4mm. This precision helps reduce operational vibration, uneven belt contact and unnecessary power consumption across the conveyor system.

Reliable Dust & Splash Water Protection Performance

1. Environmental Simulation Test Conditions

The Flat Return Idler Roller is designed for open-air and underground environments where return belts are exposed to dust and occasional water splashes. Its sealing performance was verified through environmental simulation testing involving continuous dust blowing and intermittent water spraying. The test lasted 25 consecutive hours and simulated cement plant dust conditions and underground mine water seepage.

2. Bearing Protection and Lubrication Stability

After testing, the internal bearing cavity remained free from visible powder and water infiltration. The high-temperature lithium-based grease maintained stable lubrication without obvious dilution or failure, while roller rotation resistance remained consistent throughout the test period.

3. Reduced Maintenance and Conveyor Downtime

Stable sealing performance reduces the risk of bearing contamination and roller seizure, helping maintenance teams avoid frequent shutdowns for premature roller replacement. This contributes to lower conveyor downtime, reduced maintenance labor and more reliable long-term return belt operation.

Efficient Uniform Belt Support & Low Maintenance Advantage

Compared with irregular thin-walled ordinary return rollers, our Roller adopts standardized thick-wall steel tube production, and its uniform flat support structure improves the overall running stability of return belts by 38%, verified through actual conveyor line operation comparison tests. Table 1: Contrast between Ordinary Return Roller and our Roller

Real Industrial User Application Scenarios

1. Underground Coal Mine Equipment Contractor Feedback

“We replaced all original ordinary return rollers with our Roller on our 1200mm underground return conveyor line. Before replacement, we had to shut down production every two weeks to maintain stuck rollers caused by coal dust; after switching to our rollers, the sealing structure blocks coal ash completely, belt wear speed slows down obviously, and monthly maintenance time reduces by over 60%.” — 36-year-old mining equipment project manager from Shanxi coal group

2. Cement Plant Production Supervisor

“The outdoor return conveyor in our cement workshop faces cement dust all day long, plus cleaning water splashes every shift. Our Roller still rotates flexibly after 4 months continuous running without rust or jamming, and the flat surface avoids scratches on the bottom of the return belt, which used to be a frequent failure point with our previous rollers.” — 45-year-old cement factory production supervisor

3. Grain Port Conveyor System Integrator

“We adopt our Roller for bulk grain unloading conveyor return lines. The lightweight balanced structure lowers the overall motor load of the conveyor, and the smooth flat surface prevents grain debris from sticking and abrading the belt. For long-term continuous grain transport projects, this roller is our standard matching part now.” — 41-year-old port mechanical equipment procurement engineer

Verified Standard Product Parameters

Five Core Competitive Advantages of YUFENG Roller

1. Fully Field-Verified Performance Data

All wear resistance, sealing and rotation resistance data come from months of real conveyor line operation tests rather than nominal laboratory parameters, providing customers with practical performance references for long-term conveyor applications.

2. Balanced Flat Cylindrical Support Design

The flat cylindrical roller provides uniform full-width belt support, reducing concentrated friction and helping lower belt surface damage. Field test results show that the optimized support structure can reduce concentrated belt friction damage by 32% and contribute to longer conveyor belt service life.

3. Multi-Layer Labyrinth All-Weather Sealing

The multi-layer labyrinth sealing structure is designed to prevent dust, cement powder, coal ash and splash water from entering the bearing chamber. Long-cycle dust and water spray simulation tests verify stable sealing performance for mining, cement, port and other demanding industrial environments.

4. Low Rotation Resistance and Energy-Saving Operation

Precision balancing and low-friction bearing design reduce unnecessary roller resistance during continuous operation. Under comparable working conditions, the optimized structure can help reduce conveyor motor power consumption by approximately 28%, lowering long-term operating electricity costs.

5. Factory-Direct Supply and Quality Assurance

YUFENG operates an independent roller processing workshop and implements full-item quality inspection before shipment. Factory-direct supply eliminates unnecessary intermediary costs, while product warranty and technical support provide additional assurance for long-term conveyor system operation.

Suitable Application Fields for YUFENG Roller

1. Underground & Open-Pit Mining

YUFENG Flat Return Idler Roller is suitable for underground and open-pit mining conveyor return sections, providing stable support for empty return belts operating under high-dust and continuous-duty conditions.

2. Cement & Chemical Production Plants

The roller is designed for return conveyor systems in cement plants, chemical facilities and raw material processing lines where dust, powder and occasional moisture can affect conventional return rollers.

3. Grain Depots & Port Bulk Cargo Systems

Suitable for grain storage, port loading and unloading and bulk cargo conveying systems, helping maintain smooth belt return movement during long operating cycles.

4. Aggregate & Building Material Processing

Applicable to sand, aggregate and construction material processing plants where continuous conveying, dust exposure and frequent equipment operation require durable return rollers.

5. General Manufacturing Conveyors

Suitable for material circulation conveyors in general manufacturing workshops, providing reliable belt support with low maintenance requirements for routine industrial conveying.

Why Choose YUFENG Roller Supplier?

Direct Manufacturer for Industrial Conveyor Projects

YUFENG is a direct conveyor roller manufacturer with 18 years of manufacturing experience, supplying standardized and customized rollers without unnecessary intermediary links. This allows mechanical equipment contractors, factory procurement teams and conveyor system integrators to obtain direct technical support and factory pricing.

Customized Roller Solutions

YUFENG can provide customized roller dimensions, structural configurations and technical drawings according to conveyor belt width, operating environment and application requirements, helping customers select the appropriate return roller before bulk production.

Long-Term Technical & After-Sales Support

From sample testing and specification confirmation to bulk production and after-sales technical guidance, YUFENG provides one-stop support for conveyor roller projects. Customers can contact the factory for customized drawings, bulk quotations and sample support.

Frequently Asked Questions

Q1: What Is the Core Difference Between Idler Roller and Ordinary Trough Return Idler?

Flat Return Idler Roller is specially designed for the empty return side of conveyor systems. It adopts a full flat cylindrical surface to provide uniform full-width belt support, reduce concentrated friction and minimize bottom belt wear during continuous return operation.

In comparison, trough return idlers are mainly installed on the upper carrying side of conveyors. Their V-shaped three-roller structure forms a carrying trough to support bulk materials and reduce material spillage. Since they serve different conveyor sections and functions, the two types cannot be replaced randomly.

Q2: How to Judge Whether a Flat Return Idler Roller Has Qualified Dustproof Performance Before Bulk Procurement?

Before large-scale purchasing, customers should evaluate the sealing structure and manufacturing quality instead of only relying on supplier descriptions. Three practical verification methods include:

1. Check the Sealing Structure Design

A qualified Idler Roller should adopt a multi-channel labyrinth composite sealing system rather than a simple single-layer rubber seal. The multi-stage sealing design helps prevent coal dust, cement powder, water mist and other contaminants from entering the bearing chamber.

2. Inspect the Roller Assembly Craft

High-quality rollers should use precision assembly processes with reliable bearing housing welding and accurate component fitting. Smooth connection without visible gaps reduces the risk of dust infiltration during long-term operation.

3. Perform Basic Environmental Simulation Testing

A simple dust and water spray test can help evaluate sealing performance. For example, spraying water mixed with fine powder around the roller end cover for continuous operation can verify whether contaminants enter the internal bearing cavity.

Q3: What Steel Tube Materials Are Available for Flat Return Idler Roller and Their Applications?

YUFENG provides different steel tube options according to conveyor working conditions and load requirements:

1. Q235 Carbon Steel Tube

Q235 carbon steel tube provides a cost-effective solution with reliable mechanical strength. It is suitable for normal industrial environments such as grain warehouses, general manufacturing plants and standard dry conveying systems.

2. Q345 High-Strength Steel Tube

Q345 high-strength steel tube offers improved compression resistance and impact performance. It is recommended for demanding applications including underground mining conveyors, heavy-load transportation systems and large port bulk material conveying lines.
