Rubber Disc Return Idler Roller

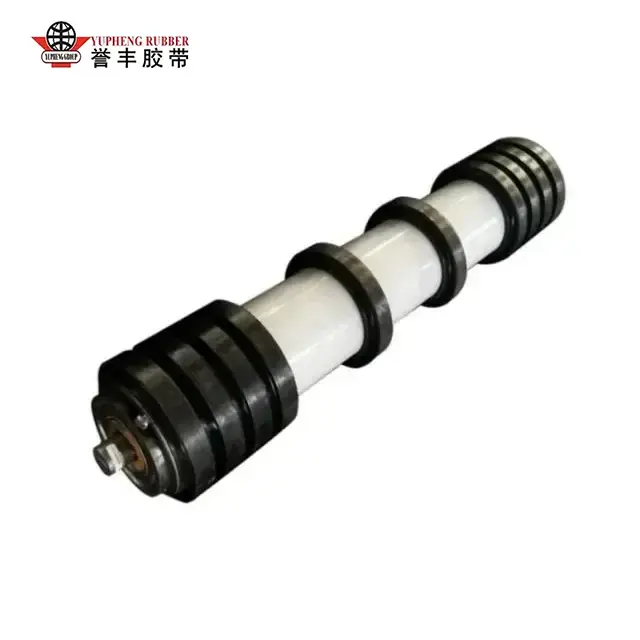

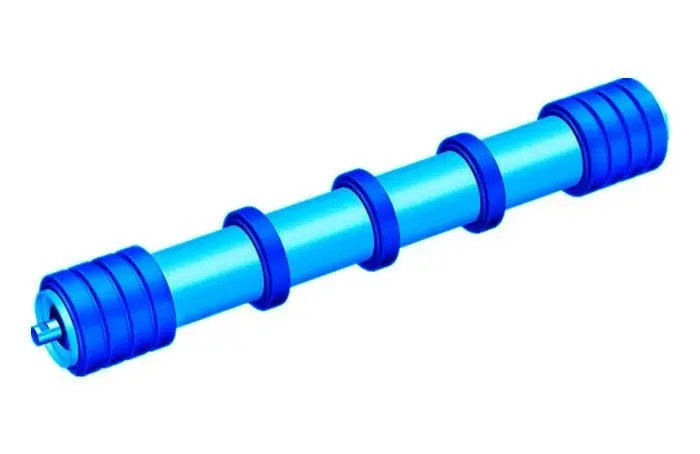

YUFENG Rubber Disc Return Idler Roller is a self-cleaning conveyor accessory independently developed and mass-produced in our factory, optimized for return belts troubled by heavy material carryback, belt mistracking and rapid idler failure. Unlike traditional smooth steel idlers with full-surface contact, this product equidistantly installs elastic rubber discs on the roller pipe.

Segmented contact and natural gaps between discs discharge mud and mineral powder in real time during rotation, eliminating large-area material accumulation fundamentally. It is the ideal matching component for heavy-duty long-distance conveying lines with sticky raw materials, fixing major performance drawbacks of smooth idlers in high-humidity, dusty and viscous residue scenarios.

Material & Production Craft

High-Quality Raw Materials and Manufacturing Process

All raw materials used for YUFENG Rubber Disc Return Idler Roller pass strict incoming inspection from qualified suppliers. The rubber discs adopt NR/SBR blended elastic rubber, providing excellent aging resistance, anti-swelling performance and durability against mud and cement ash.

The roller shell uses Q235 seamless carbon steel with full hot-dip galvanization treatment to improve rust resistance and salt fog corrosion protection. Built-in C3 clearance ZZ shield ball bearings are filled with long-life anti-rust lithium grease and combined with triple-channel nylon labyrinth seals plus double outer rubber dust rings to effectively block muddy water and fine dust.

Before shipment, every finished idler undergoes concentricity calibration, rotational resistance testing, 40-minute muddy water sealing simulation and rubber disc firmness impact testing to ensure stable long-term operation in mining, cement, port and other harsh industrial environments.

Field Test Data & Performance Comparison

Six-Month Continuous Industrial Tracking Test

YUFENG conducted six-month continuous tracking tests in underground coal mines, coastal ore terminals, cement plants and thermal power facilities, comparing Rubber Disc Return Idler Roller with traditional smooth steel return idlers.

The test results show that YUFENG rubber disc structure provides automatic residue separation during operation, reducing cleaning shutdown requirements under sticky material conditions. The flexible rubber contact surface reduces concentrated belt damage, while the optimized sealing structure significantly extends bearing service life and lowers conveyor maintenance costs.

Real Project Application Cases

Underground Coal Mine Return Conveyor Upgrade Project

In a Shanxi underground coal mine renovation project, YUFENG Rubber Disc Return Idler Roller was installed across return conveyor lines handling wet coal slime under high-humidity and high-dust conditions.

After six months of continuous 24-hour operation, the galvanized roller shell remained corrosion-free, rubber discs showed no falling or cracking, and bearings maintained smooth rotation without blockage. The customer eliminated daily manual cleaning work and reduced monthly maintenance costs by 58%.

Applications in Global Bulk Material Conveying Systems

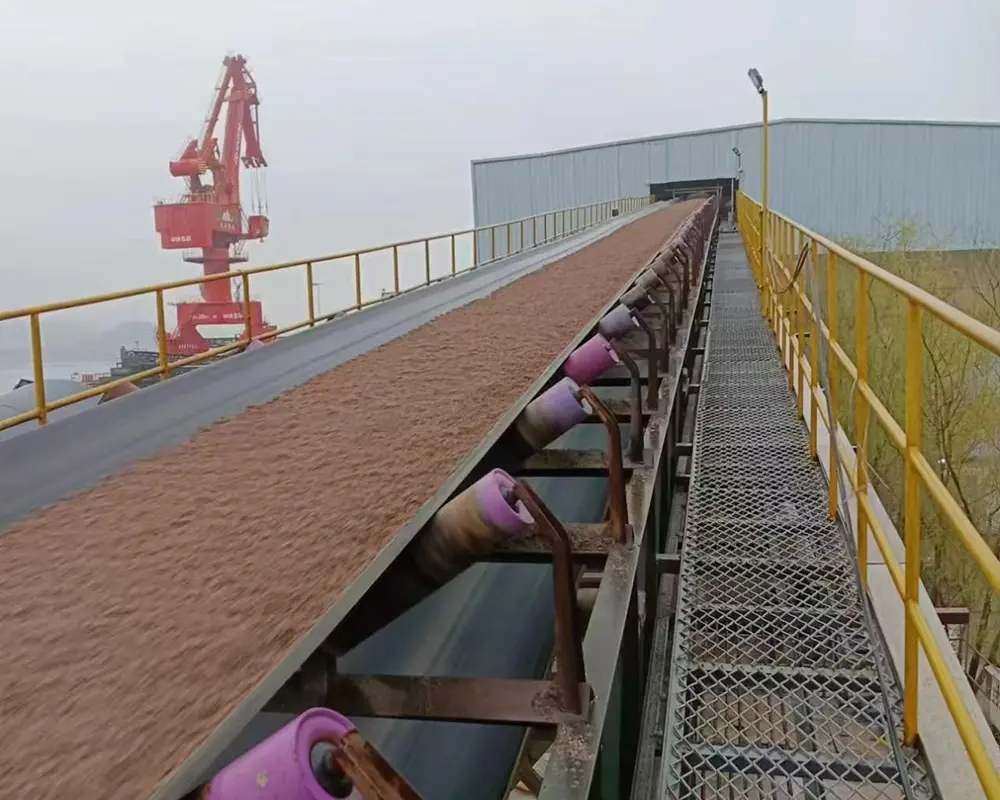

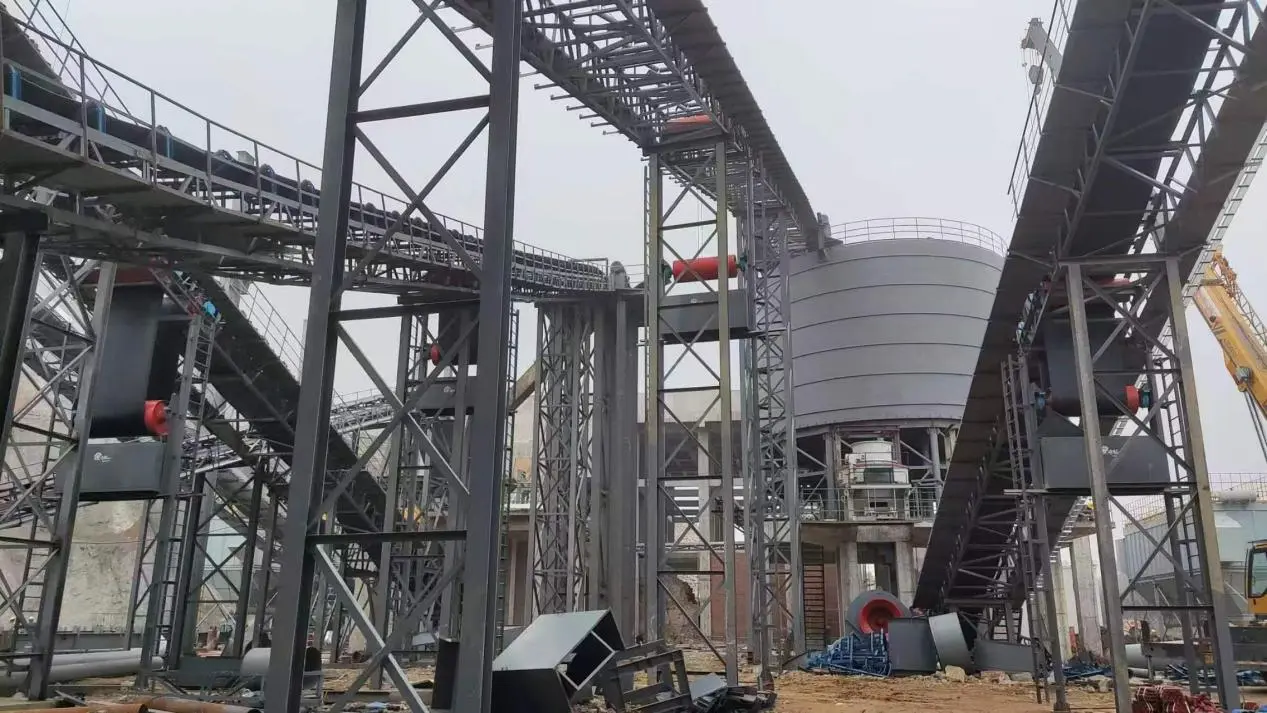

YUFENG Rubber Disc Return Idler Roller is widely used in coastal mineral ports, cement production bases and thermal power slag conveying systems. The rollers handle sticky materials such as coal slime, iron ore mud, cement ash and mineral powder, helping customers reduce belt deviation downtime and extend conveyor belt service life.

YUFENG provides operation photos, technical documents and test reports to support customer project evaluation and equipment selection.

Complete Product Specification Parameters

YUFENG supports full-size mass production and non-standard customization, covering diverse diameters and lengths to match different belt widths and load requirements:

Why Choose YUFENG Factory Products

Integrated Manufacturing and Quality Control

Different from trading resellers, YUFENG is a professional conveyor idler manufacturer with automatic cutting, hydraulic rubber disc hot pressing, robot assembly and finished product testing facilities. With more than 22 years of conveyor accessory production and export experience, we implement ISO9001 quality control throughout raw material inspection, processing and final delivery.

Factory-Direct Service and Customization

YUFENG provides parameter consultation, drawing customization, factory-direct supply and after-sales installation guidance. Stable production schedules support large container orders and help ensure reliable delivery for global customers.

Designed for Real Conveyor Operating Problems

Our Rubber Disc Return Idler Roller is developed to address sticky material buildup, frequent belt deviation, bearing corrosion and high manual cleaning costs associated with conventional smooth idlers.

Verified Long-Term Performance

Supported by stable raw material supply, mature sealing and rubber disc pressing technology, and six-month field test data, YUFENG provides durable and cost-effective self-cleaning idler solutions for demanding bulk material conveying environments.

Frequently Asked Questions

Q1: What core differences between Rubber Disc Return Idler Roller and ordinary smooth steel return idlers?

A1: The key gap lies in contact structure and self-cleaning function. YUFENG Idler Roller adopts spaced elastic rubber discs with residue leakage gaps, automatically shedding mud and powder during rotation without cleaning shutdown. Smooth idlers have full-surface seamless contact without discharge channels; sticky residues pile up quickly to trigger continuous belt deviation.

Soft rubber discs avoid hard steel scratches on conveyor belts, and triple-layer composite sealing extends bearing service life 3–4 times. It fits return lines with high-viscosity wet residues, while smooth idlers only suit dry light-load environments.

Q2: What customization services can you provide?

A2: We support full-range customization including outer diameter Φ76–Φ219mm, effective length, rubber disc spacing and thickness for belt widths 400–2000mm. Special configurations like high-temperature resistant rubber discs, stainless steel shells and heavy-duty reinforced bearings are available for coastal salt fog, high-temperature cement and water-rich underground mines. All customized idlers pass full factory simulation tests before shipment to match client working conditions perfectly.

Q3: Service life and daily maintenance requirements?

A3: Under standard installation and operation, our rubber disc idler has far longer service life than smooth steel idlers with no mandatory daily cleaning. Daily maintenance is low-cost and simple: regularly check rubber disc abrasion and fixation, inspect roller rotation smoothness, and adjust conveyor frame tension timely to avoid unilateral friction damage. Our factory provides complete professional after-sales technical guidance to reduce redundant labor and unplanned shutdown losses.
