V Return Idler Roller

Automatic belt centering is the core advantage of YUFENG V Return Idler Roller. Its symmetrical V-shaped roller assembly generates lateral correction forces as the belt runs, helping guide misaligned belts back toward the center without additional correction equipment. Designed for medium- and heavy-duty return sections, it helps reduce edge wear, material leakage and mistracking caused by uneven loading or residue buildup.

Material & Production Craft

V-Shaped Return Support Structure

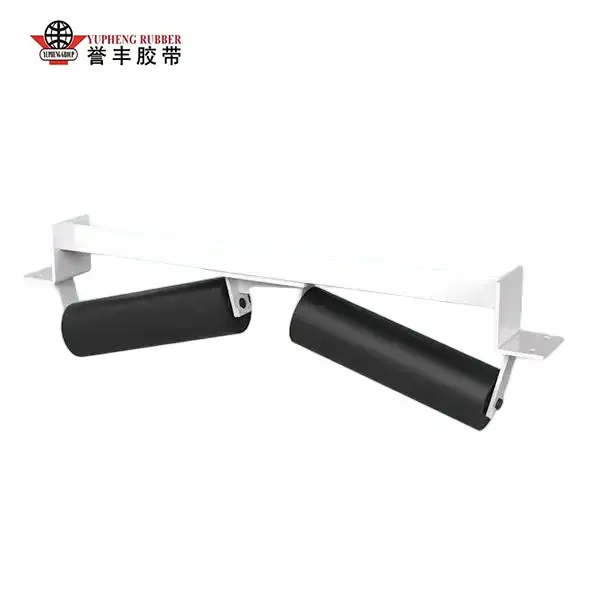

YUFENG V Return Idler Roller is designed specifically for the return side of belt conveyor systems. Its two inclined rollers form a stable V-shaped supporting surface that helps guide the empty belt toward the center while maintaining continuous contact across the belt width.

The roller body uses Q235 seamless carbon steel pipe with hot-dip galvanized surface treatment. C3 clearance ZZ shield bearings are pre-filled with anti-rust lithium grease, while the dual-channel nylon labyrinth seal and outer rubber dust rings provide additional protection against dust, mud and moisture.

Precision Assembly for Stable Belt Running

The V-shaped frame is manufactured through integrated steel plate forming and robotic welding. CNC alignment after assembly controls the overall runout within 0.3mm, helping maintain consistent roller rotation and reducing vibration during continuous conveyor operation.

Each finished assembly is inspected for roller alignment, rotational resistance, load performance and sealing integrity before shipment to ensure reliable installation and operation.

V-Shaped Belt Support & Operating Advantages

Improved Return Belt Positioning

Unlike conventional single straight return idlers, the inclined roller arrangement provides a defined supporting geometry for the return belt. This helps stabilize the belt position when minor lateral movement occurs during continuous conveying.

Reduced Edge Contact

The V-shaped support distributes the belt load across multiple roller surfaces instead of concentrating contact on one flat roller. This can reduce prolonged edge contact and uneven wear caused by unstable belt positioning.

Suitable for Different Conveyor Layouts

YUFENG Idler Roller can be configured for different conveyor belt widths, roller diameters and operating environments. Galvanized steel versions are suitable for general industrial use, while customized corrosion-resistant configurations can be supplied for coastal, mining and humid applications.

Product Configuration & Engineering Options

Standard Roller Configuration

The standard assembly consists of two inclined return rollers and a supporting V-shaped frame. Roller diameter, belt width and frame dimensions can be matched to the existing conveyor structure.

Optional Material and Surface Treatment

Q235 carbon steel is used for standard applications. Depending on operating conditions, YUFENG can provide galvanized surfaces, rubber-covered rollers and other customized configurations for applications requiring additional corrosion protection or belt contact protection.

Application-Specific Engineering

For new conveyor projects and replacement programs, YUFENG can review belt width, return-side structure, conveyor speed, installation dimensions and working environment before recommending the appropriate V Return Idler Roller configuration.

Real Industrial Application Experience

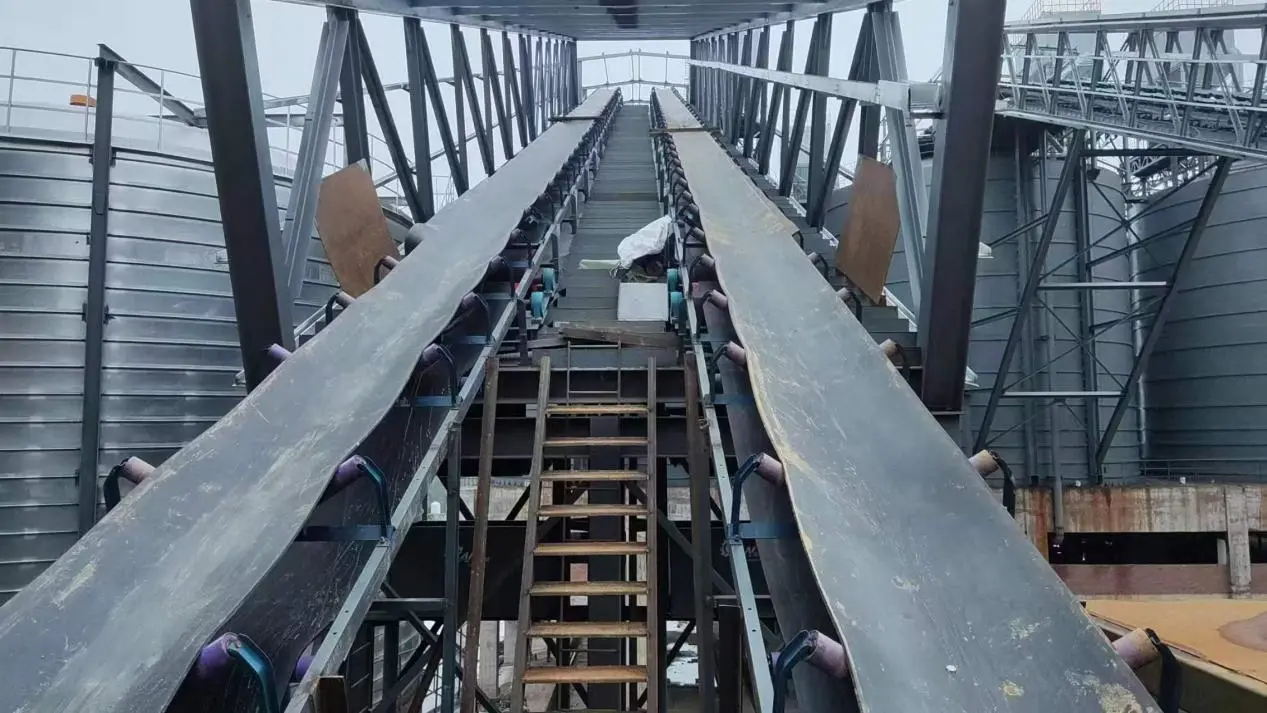

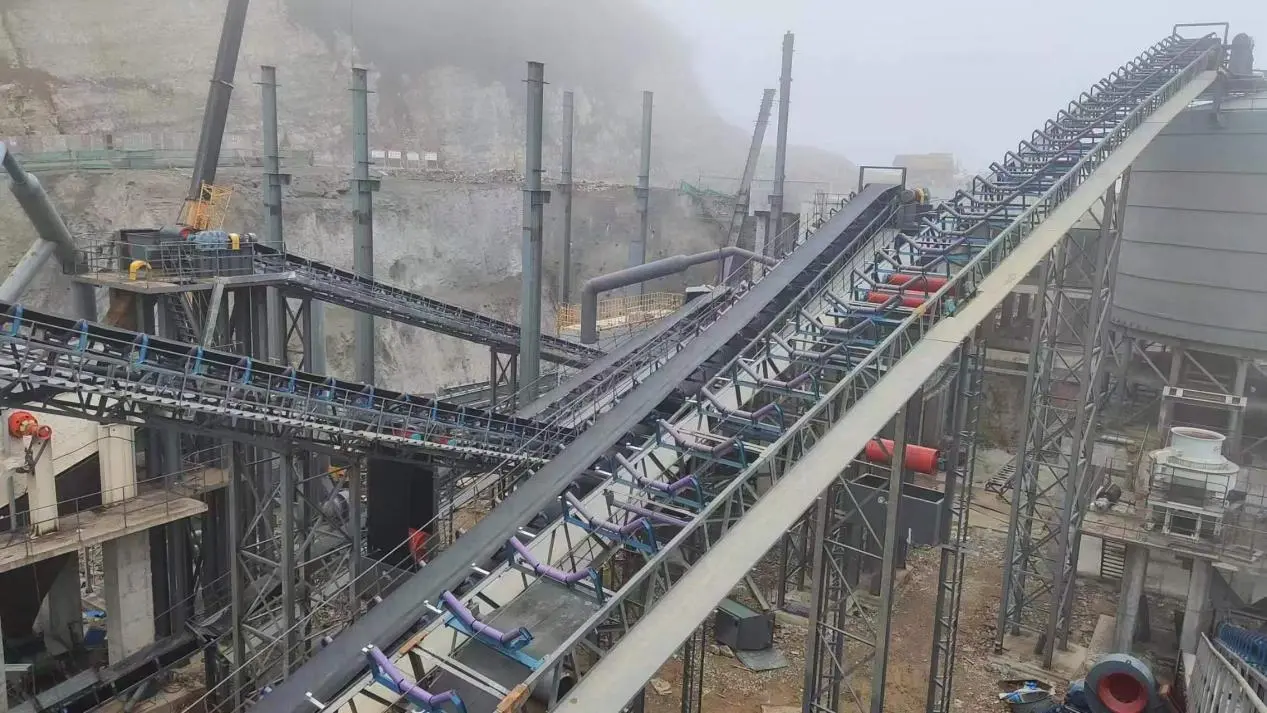

Open-Pit Coal Conveyor Return Section

YUFENG V Return Idler Roller has been applied to return conveyor sections transporting coal, gangue and aggregate materials. The V-shaped support helps maintain belt position during long-distance conveying and reduces the need for frequent manual belt correction.

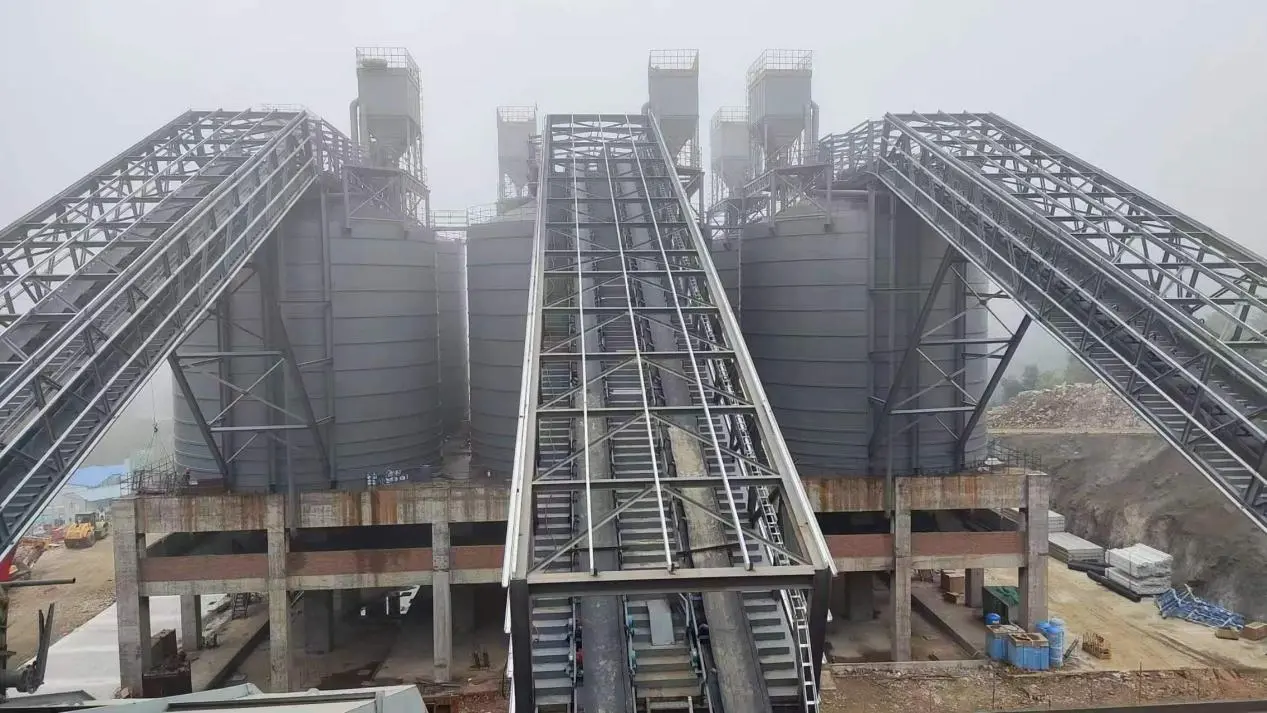

Cement and Aggregate Conveying Systems

In cement and aggregate plants, return belts are exposed to dust, vibration and continuous operating cycles. The galvanized roller body and multi-stage bearing protection provide a practical solution for these conditions while keeping routine maintenance requirements manageable.

Coastal Bulk Material Conveyors

For outdoor conveyors exposed to humidity and salt fog, YUFENG provides galvanized and customized corrosion-resistant configurations. The reinforced sealing structure helps protect internal bearings and supports longer operating intervals between maintenance inspections.

Factory Quality Control & Custom Supply

Controlled Manufacturing Process

YUFENG manages tube processing, frame forming, welding, roller assembly and final inspection within its production system. Key dimensions and running performance are checked before products are released for shipment.

Customized Conveyor Matching

Customers can provide conveyor belt width, roller diameter, installation dimensions and operating conditions. YUFENG engineers can then prepare matching specifications or CAD drawings for replacement and new conveyor projects.

Factory-Direct Support

YUFENG provides sample evaluation, technical specification confirmation, customized production and factory-direct supply for distributors, conveyor manufacturers, engineering contractors and industrial end users.

Complete Product Specification Parameter Table

YUFENG supports full-size mass production and non-standard customized processing of Roller, covering multiple roller diameters, assembly widths and V inclination angles to match different conveyor belt widths and load requirements:

Why Choose YUFENG Factory Products

Factory Manufacturing & Quality Control

YUFENG controls the complete production process from roller tube preparation and frame forming to welding, bearing installation, balancing and final inspection. Each V Return Idler Roller assembly is checked for dimensional accuracy, welding quality, rotational smoothness and overall assembly condition before shipment. This integrated manufacturing process allows us to maintain consistent product quality across both standard orders and customized conveyor projects.

Engineering Customization for Different Conveyor Systems

We support customized roller diameters, effective lengths, V-shaped angles, frame dimensions and material configurations according to conveyor belt width, operating load and installation requirements. For demanding environments, optional configurations include hot-dip galvanized steel, stainless steel components, reinforced frames and high-temperature bearing assemblies. Customers can provide conveyor drawings or operating parameters, and our engineering team can recommend a suitable Idler Roller configuration.

Long-Term Supply & Technical Support

With dedicated production and testing facilities, YUFENG supports both regular replacement orders and large-scale conveyor system projects. We provide technical drawings, specification confirmation, sample arrangements and production coordination before shipment, followed by remote installation and maintenance guidance when required.

This service structure helps conveyor contractors, system integrators and industrial procurement teams simplify sourcing and maintain consistent specifications across multiple conveyor lines.

Frequently Asked Questions

Q1: What is the main difference between a Idler Roller and a straight return idler?

A1: A straight return idler provides flat passive support, while a V Return Idler uses inclined rollers to create a guided running surface for the return belt. This configuration helps maintain belt positioning and reduce unilateral edge wear, making it more suitable for conveyor systems where belt wandering is a recurring concern.

Q2: Can the V Return Idler Roller be customized for different conveyor systems?

A2: Yes. YUFENG can customize roller diameter, effective length, assembly width, V angle, frame thickness and material according to the conveyor design. Special configurations such as stainless steel components, reinforced frames and high-temperature bearing assemblies are also available for demanding applications.

Q3: What maintenance is required for Idler Rollers?

A3: Routine maintenance mainly involves checking roller rotation, frame and welding condition, galvanized surface integrity and conveyor alignment. Keeping the belt properly tensioned and the conveyor frame correctly aligned also helps prevent excessive side loading and extend idler service life.

Q4: What information should be provided when requesting a quotation?

A4: Buyers should provide conveyor belt width, roller diameter, belt speed, material being conveyed, operating environment and required V angle if available. Conveyor drawings or existing idler dimensions can also be provided so YUFENG can recommend the appropriate configuration and prepare a factory quotation.

Q5: Can YUFENG provide samples before bulk production?

A5: Yes. Sample orders can be arranged for specification verification and installation testing before large-volume production. YUFENG can also provide technical drawings and product parameters to help customers confirm compatibility with their existing conveyor system.

Contact YUFENG

If you need a V Return Idler Roller for a conveyor system with frequent belt wandering, uneven edge wear or demanding return-side operating conditions, contact YUFENG for product specifications, customized drawings, sample support and factory-direct pricing.
