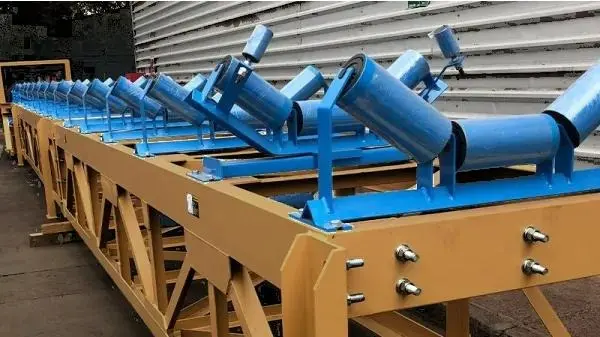

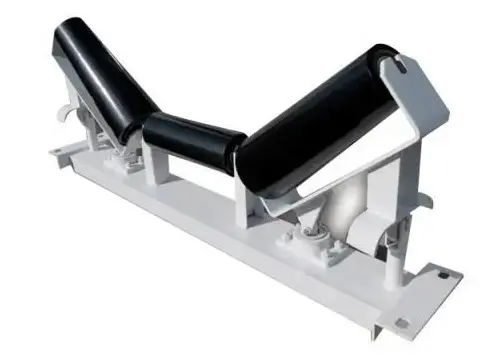

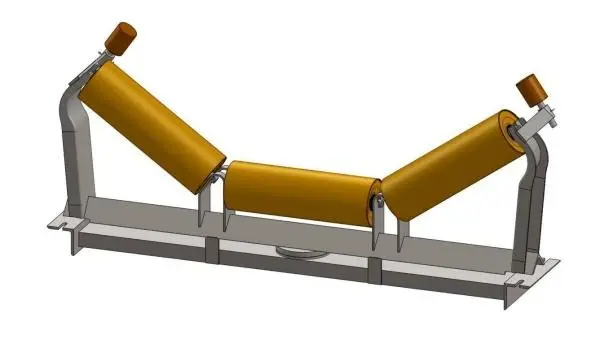

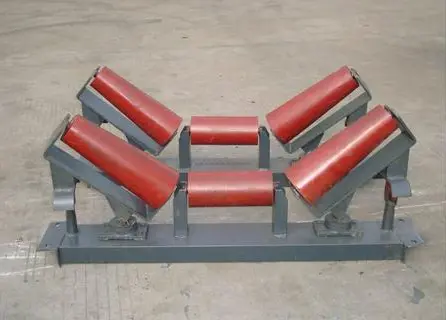

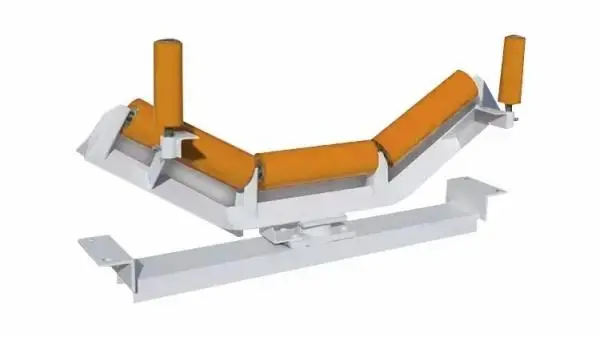

Self-Aligning Idler Roller

Designed to maintain stable belt tracking in long-distance bulk conveying systems, YUFENG Self-Aligning Idler Roller automatically corrects belt deviation caused by uneven loading, frame issues or tension imbalance. Its swingable bracket and side guide roller structure generate corrective force to return the belt to the center path, reducing edge damage and material spillage. Suitable for steel cord and fabric conveyor belts, it helps lower maintenance downtime in mining, cement and heavy industrial applications.

Raw Material & Production Craft

Every component of YUFENG Self-Aligning Troughing Idler Roller is manufactured with carefully selected high-strength materials from qualified suppliers. Through standardized CNC machining, precision assembly and strict factory inspection procedures, each idler is designed to deliver stable tracking performance and long service life under demanding conveyor operating conditions.

High-Precision Roller Tube Processing

The roller tube adopts Q235B seamless steel tube as the standard configuration, with optional Q345 high-strength alloy steel, HDPE anti-corrosion tube and rubber-lagged wear-resistant tube for special applications. Tube wall thickness ranges from 3.0mm to 6.0mm. Precision cutting and turning processes control radial runout within ≤0.5mm, while dynamic balancing treatment improves running stability and reduces vibration during continuous conveyor operation.

Reinforced Central Shaft Structure

The central shaft is manufactured from 45# quenched and tempered solid steel, providing high torsional strength and deformation resistance. This reinforced shaft structure ensures reliable support when the idler operates under heavy belt tension, impact loads and frequent belt deviation correction conditions.

Sealed Bearing Protection System

YUFENG uses deep groove ball bearings with C3 clearance, covering common models from 6204 to 6310 according to different load requirements. The bearing assembly integrates a triple labyrinth seal and dual lip contact sealing structure, creating a closed protection chamber filled with anti-rust lithium-based grease. This design effectively blocks coal dust, mineral slurry and moisture from entering the bearing cavity.

Durable Bracket & Pivot Frame Manufacturing

The support frame adopts integral carbon steel plate welding technology with electrostatic baking paint or hot-dip galvanizing surface treatment. The anti-corrosion protection is suitable for humid underground mines, coastal ports and outdoor conveying systems. Side guide rollers are equipped with wear-resistant polyurethane surfaces to reduce damage to conveyor belt edges during correction operation.

Complete Manufacturing Inspection Process

The complete production process includes raw material cutting, tube-end machining, bearing housing press fitting, sealed assembly, bracket welding, surface anti-corrosion treatment and final performance inspection. Before warehouse delivery, every production batch undergoes rotational resistance testing, noise inspection, axial load verification and swing reset performance testing to ensure reliable operation and consistent product quality.

Performance Advantage & Industry Pain Point Contrast

YUFENG completed six-month continuous field comparison tests in open-pit coal mines and port bulk cargo terminals, evaluating the performance of our Self-Aligning Troughing Idler Roller against conventional fixed trough idlers. The results demonstrate clear advantages in belt tracking stability, conveyor protection and long-term operating efficiency.

Automatic Belt Tracking Without Manual Adjustment

Conventional fixed trough idlers only provide passive belt support and require regular manual adjustment when belt deviation occurs. YUFENG Self-Aligning Troughing Idler Roller uses a swing pivot correction structure that responds automatically to lateral belt movement, continuously guiding the conveyor belt back toward the center line and reducing dependence on manual correction for long-distance conveying systems.

Reduced Conveyor Belt Edge Damage

When belt deviation occurs, fixed idlers may create continuous friction between the belt edge and conveyor structure, accelerating cracking, abrasion and delamination. The side guide roller system of YUFENG idlers uses a buffered contact design to reduce impact stress on the belt edge, helping extend conveyor belt service life.

Stable Performance Under Uneven Material Loading

Uneven material distribution can create unbalanced lateral forces on conveyor belts. Traditional fixed idlers cannot actively respond to these conditions, while the pivoting correction mechanism of YUFENG Self-Aligning Troughing Idler Roller adjusts dynamically to distribute stress more evenly and reduce risks of belt damage and material spillage.

Lower Total Conveyor Operating Cost

Although automatic tracking idlers require higher initial investment than standard fixed rollers, they reduce costs associated with belt replacement, deviation correction and cleaning maintenance. Field comparison data shows conveyor systems using YUFENG self-aligning idlers can reduce comprehensive operating expenses by more than 35% within one year under continuous operation conditions.

Reliable Operation in Harsh Industrial Environments

The multi-layer sealing structure protects internal bearings from dust, moisture and low-temperature conditions. Compared with conventional idlers that may suffer from bearing seizure in harsh environments, YUFENG Self-Aligning Troughing Idler Roller maintains smoother rotation and more stable long-term performance in mining, ports and bulk material handling applications.

Real Global Project Application Cases

YUFENG Self-Aligning Troughing Idler Roller has been successfully applied in multiple heavy industrial conveyor projects worldwide. Through long-term operation tracking and customer feedback, our idler solutions have demonstrated reliable belt tracking performance, reduced maintenance requirements and stable operation under complex working conditions.

Southeast Asian Open-Pit Coal Mine Conveyor Project

A Southeast Asian coal mining customer operated a 1.8km fixed conveyor system equipped with ST1600 steel cord conveyor belts under dusty and high-humidity conditions. Due to frequent uneven coal loading, the original system suffered from belt wandering and edge damage.

YUFENG Self-Aligning Troughing Idler Roller was installed along both carrying and return sections to provide continuous belt correction support. After three years of uninterrupted operation, the conveyor belt maintained stable centered movement without edge cracking or steel cord exposure. Bearing seizure and belt deviation issues were effectively eliminated, supporting the customer's 24-hour continuous production requirements.

European Coastal Port Bulk Material Handling Terminal

A European logistics company applied YUFENG Self-Aligning Idler Roller to ore and gravel conveying systems using 1400mm wide conveyor belts. Considering the high salt fog coastal environment, YUFENG supplied customized hot-dip galvanized bracket structures with enhanced corrosion resistance.

After one year of operation, the idler frames showed no rust deformation, while material spillage at transfer points was reduced by 70%. The improved belt alignment performance helped increase loading and unloading efficiency and reduced daily maintenance requirements.

Domestic Cement & Metallurgy Conveying Systems

In cement plants and steel mills, YUFENG Self-Aligning Troughing Idler Roller is used for limestone, sinter ore and other bulk material conveying applications. The stable trough forming structure supports high-speed and heavy-impact operation while maintaining uniform material transport.

Customer feedback confirms reliable running performance, low failure frequency and improved production continuity. YUFENG can provide installation photos, technical parameters and project reference documents to support customer evaluation and conveyor system planning.

Complete Technical Specification Parameters

The factory supports full-size mass production and customized processing of our Roller, covering multiple standard configurations and tailor-made solutions for special working conditions:

Advantages of Choosing Factory Direct Supply

Integrated Manufacturing Capability & Quality Control

Unlike trading companies without production capability, YUFENG operates a standardized conveyor roller manufacturing workshop equipped with CNC processing, welding and testing facilities. With more than 10 years of dedicated experience in conveyor roller production and export, we provide stable factory-direct supply with strict quality control throughout raw material selection, production processing and final inspection.

Customized Solutions for Different Conveyor Challenges

YUFENG focuses on solving practical conveyor operation problems, including frequent belt deviation, edge abrasion and high maintenance requirements of traditional idler systems. Through mature swing pivot technology, reliable sealing structures and flexible customization capability, we provide suitable Self-Aligning Idler Roller solutions for mining, ports, cement plants and other heavy industrial applications.

Reliable Delivery & Technical Support

We support technical parameter consultation, size customization, factory-direct purchasing and post-installation guidance. For large-volume orders, YUFENG arranges stable production schedules to ensure reliable delivery and provide continuous support throughout the project cooperation process.

Frequently Asked Questions

Q1: What is the difference between YUFENG Self-Aligning Idler Roller and ordinary fixed trough idlers?

Ordinary fixed trough idlers cannot actively correct belt deviation and usually require manual adjustment. YUFENG Self-Aligning Idler Roller uses a swing correction structure with guide rollers that automatically adjusts the belt position when deviation occurs, reducing belt edge wear, material spillage and unexpected downtime.

Q2: What customization options are available for Self-Aligning Idler Roller?

YUFENG supports customization of belt width, roller diameter, trough angle and surface treatment. Special configurations such as high-temperature grease, rubber-lagged rollers and stainless steel brackets can also be provided for demanding environments including mines, ports and chemical plants.

Q3: What maintenance is required during daily operation?

Routine maintenance mainly includes checking roller rotation, guide roller wear, bracket corrosion and removing material buildup when necessary. With proper installation and operation, YUFENG Self-Aligning Idler Roller helps reduce maintenance frequency and improve conveyor system reliability.
