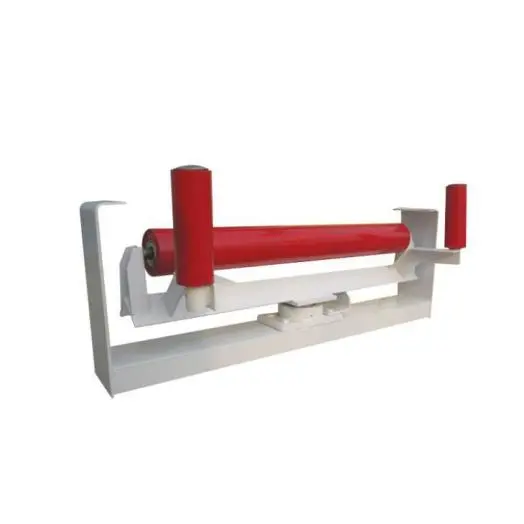

Return Self-Aligning Idler

Manufactured with precision-machined steel structures and high-performance sealed bearings, the Return Self-Aligning Idler delivers robust impact resistance, reliable dust and water protection, and stable performance across harsh working conditions, from dusty open-pit mines to humid coastal port terminals. It is fully compatible with conveyor lines serving mining, port handling, metallurgy, cement production and chemical bulk transportation, matching a wide range of belt widths and load grades.

Our factory provides both off-the-shelf standard specifications and tailored customization services, with strict factory inspection protocols and full quality documentation to guarantee long service life and low maintenance costs. For overseas buyers and engineering contractors seeking durable, cost-effective conveyor system upgrades, this component offers a practical solution to improve operational stability and reduce long-term operational expenses.

Product Definition & Working Principle

Automatic Belt Tracking for Return Conveyor Sections

YUFENG Return Self-Aligning Idler is a specialized functional idler designed for the return side of belt conveyor systems. Unlike fixed return idlers that only provide passive belt support, it uses a swivel bracket and automatic alignment mechanism. When the belt moves away from the centerline because of uneven loading, installation deviation or material impact, the idler assembly rotates under lateral belt force and generates a guiding force to help restore the belt to its normal running position.

Reduced Manual Alignment & Conveyor Downtime

The automatic tracking mechanism reduces the need for frequent manual belt correction, helping maintenance teams lower labor input and prevent unplanned shutdowns caused by severe belt wandering. Its modular construction also simplifies installation and replacement, allowing the idler to be retrofitted to existing conveyor systems without major structural modifications.

Designed for Continuous Bulk Material Conveying

The Return Self Aligning Idler is particularly suitable for medium- and long-distance fixed conveyors operating under heavy loads and extended working cycles. By helping control belt movement, it can reduce belt edge wear, idler damage and material spillage, making it a practical upgrade for bulk material handling systems focused on stable operation and lower maintenance costs.

Material & Manufacturing Process

Durable Roller Tube Construction

YUFENG selects qualified raw materials from approved domestic and international suppliers. The roller tube is manufactured from high-precision seamless steel pipe with uniform wall thickness. Depending on the application, the surface can be finished with industrial paint or a wear-resistant rubber coating to provide suitable abrasion and corrosion protection.

Sealed Bearing System for Harsh Environments

High-precision deep groove ball bearings are combined with a multi-stage labyrinth sealing structure to help prevent dust, moisture and material particles from entering the bearing chamber. This configuration supports smooth rotation and low running resistance in dusty, humid and outdoor conveyor environments.

Reinforced Swivel Bracket

The supporting bracket is manufactured from carbon structural steel through stamping and welding processes. Spray painting or hot-dip galvanizing can be applied to improve corrosion resistance and structural durability during long-term outdoor operation.

Precision Swivel Pivot Mechanism

The swivel pivot uses a precision-machined shaft and sleeve structure to maintain smooth frame movement and responsive alignment action. Accurate machining helps prevent sticking and supports consistent belt tracking performance during continuous conveyor operation.

Multi-Stage Quality Inspection

YUFENG applies quality control throughout the manufacturing process. Roller components undergo dynamic balance, coaxiality and rotation resistance inspections before assembly, while finished Return Self Aligning Idlers are tested for load capacity, sealing performance and simulated deviation correction before shipment. Production batches are traceable from raw material inspection through final delivery to maintain consistent quality for bulk orders.

Standards-Based Production & Batch Traceability

Manufacturing and inspection procedures are controlled according to applicable ISO and GB/T requirements. YUFENG maintains production records and inspection data for each batch, supporting quality verification and consistent supply for conveyor system integrators and industrial buyers.

Performance Advantages & Field Test Comparison

To verify the actual operational performance of the product, we conducted a 6-month continuous field tracking test on a heavy-duty coal mine conveyor line running 16 hours per day, transporting raw coal with an average particle size of 50–300mm. The test compared the product with ordinary fixed return idlers under identical working conditions, and the data demonstrates clear performance gaps in operation stability and maintenance cost control:

Benefiting from the automatic alignment mechanism and optimized structural design, the product significantly reduces the lateral deviation of the conveyor belt, with belt edge wear reduced by more than 75% compared with ordinary idlers. Stable belt tracking effectively reduces material spillage during transportation, eliminating material waste and on-site cleaning workload, while also reducing the impact of deviation on the conveyor frame and other auxiliary components.

In terms of maintenance, the product greatly reduces the frequency of manual adjustment and part replacement, with an average service life more than double that of standard alternatives. This performance improvement can effectively help enterprises reduce daily operation and maintenance costs and improve the overall operational efficiency of the conveyor system.

Real-World Application Cases

Southeast Asian Open-Pit Coal Mine

YUFENG Return Self-Aligning Idler was installed on a 2.3 km fixed conveyor with a 1400 mm belt width and 1800 t/h conveying capacity. The system operated under dusty, high-temperature and heavy-load conditions, where frequent belt deviation had previously required 2–3 manual adjustments each week.

Verified Belt Tracking Improvement

After installation and commissioning, belt deviation was controlled within approximately 15 mm, while manual adjustment frequency decreased to about once per month. The conveyor belt service life was extended by approximately 60%, reducing routine correction work and belt replacement requirements.

Long-Term Continuous Operation

After three years of continuous operation, the idlers remained in stable working condition without reported bearing seizure or structural deformation, supporting the customer's daily production requirements and demonstrating reliable performance under demanding mine conveyor conditions.

Port, Cement & Metallurgy Applications

YUFENG Return Self Aligning Idlers are also used on European bulk cargo port conveyors and domestic cement and metallurgy conveying systems handling coal, ore, gravel and limestone. These applications benefit from responsive alignment, stable operation and reduced belt deviation-related interruptions.

Project Verification Support

For customer evaluation and project approval, YUFENG can provide available on-site installation photographs, operating records and relevant project reference materials to help buyers assess product suitability before bulk procurement.

Full Specification Parameters for YUFENG Return Self Aligning Idler

We support full-size production and customized processing of conveyor idler products, covering multiple specifications to adapt to different belt widths and load demands. The core parameters are as follows:

Why Choose YUFENG？

Direct Manufacturing & Stable Supply

YUFENG is a professional conveyor component manufacturer with complete production equipment and standardized inspection procedures. With more than 10 years of focused production and export experience, we provide factory-direct supply and stable batch production for international conveyor projects.

Application-Focused Product Design

Our Return Self Aligning Idler is developed around common return-side problems such as belt wandering, uneven wear and frequent manual adjustment. The automatic alignment structure helps improve belt tracking stability while reducing routine maintenance requirements.

Consistent Quality Control

Production and inspection follow applicable domestic and international industry requirements. Raw materials, machining, assembly and finished idlers are subject to controlled quality procedures to maintain consistent performance across customized and bulk orders.

Flexible Specification Customization

YUFENG supports customized dimensions, roller configurations and surface treatments according to conveyor belt width, load conditions and installation requirements. This allows customers to replace existing return idlers without unnecessary system modifications.

Solutions for Special Working Conditions

For demanding applications involving corrosion, elevated temperatures or flame-retardant requirements, YUFENG can provide targeted material, sealing and surface-treatment options to match the actual operating environment.

Technical Support from Selection to Operation

We provide parameter consultation, specification matching, factory-direct quotations and after-sales technical guidance, helping conveyor operators and system integrators select suitable self-aligning idlers and maintain reliable long-term operation.

Frequently Asked Questions

Q1: What is the main difference between Return Self-Aligning Idler and ordinary fixed return idler?

A1: The core difference lies in functional design. Fixed return idlers only provide basic support for the return belt, while this product features a swivel alignment mechanism that automatically corrects belt deviation during operation. It effectively reduces manual adjustment work, slows belt edge wear, and is more suitable for medium and long-distance heavy-load conveyor lines, helping to lower operation and maintenance costs.

Q2: What customization services do you support for this product?

A2: We support customization of roller diameter, length, surface treatment (rubber coating, galvanizing), bracket structure and special material matching according to actual working conditions. All customized products are produced in accordance with industrial standards and undergo complete factory testing to ensure adaptability to on-site operating environments.

Q3: What is the service life and daily maintenance requirement?

A3: Under standard working conditions and regular maintenance, the product has a significantly longer service cycle than ordinary fixed idlers. Daily maintenance is simple: regular inspection of roller rotation condition, bearing sealing status and bracket fastening can effectively avoid abnormal damage. Our factory provides professional after-sales guidance to help customers reduce unnecessary maintenance costs and equipment downtime.
