Troughing Self-Aligning Idler

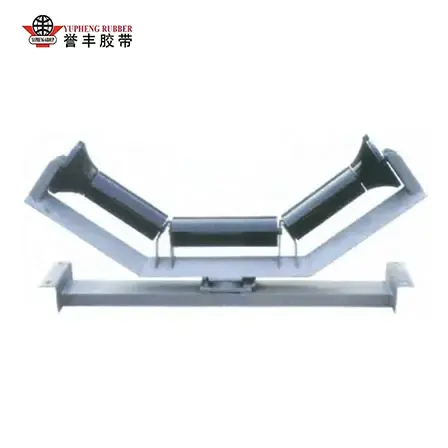

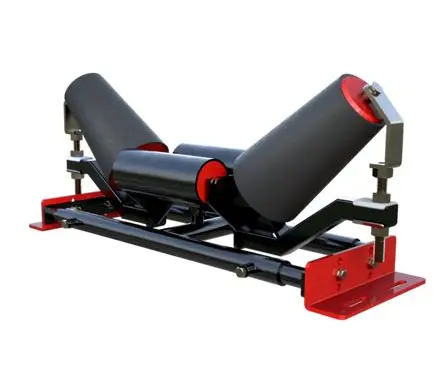

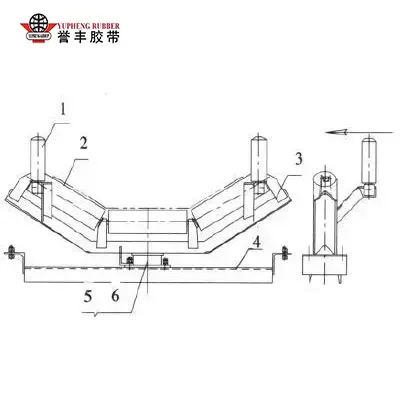

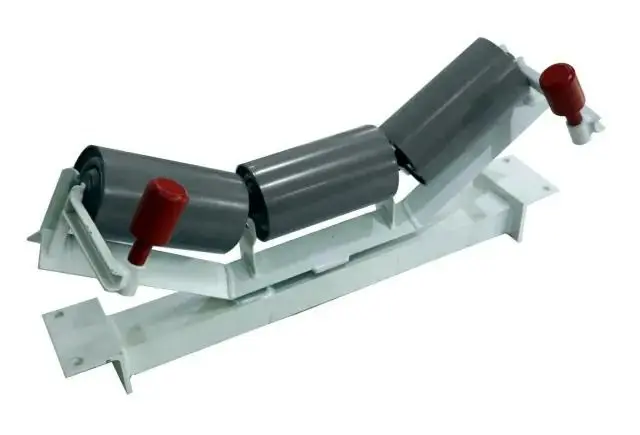

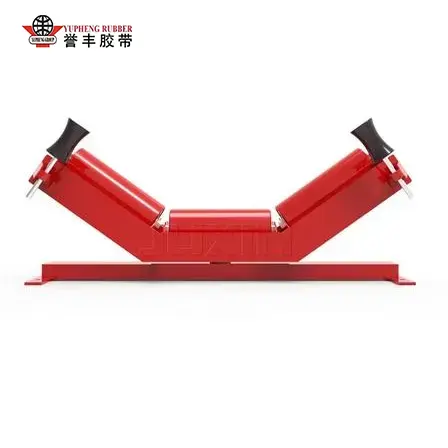

YUFENG Troughing Self-Aligning Idler is a specially optimized three-roller trough carrier set exclusively developed for the load-carrying strand of belt conveyors, designed to integrate basic material support and automatic belt centering functions in one assembly. Different from fixed ordinary trough idlers that only provide load bearing without deviation correction, this product’s core innovation lies in the floating central pivot connection between upper roller bracket and base frame, paired with vertical anti-deflection guide rollers installed on both wing sides.

When the conveyor belt drifts left or right during operation, the belt edge contacts the vertical guide roller and generates lateral thrust, driving the entire upper trough frame to rotate 5°–8° around the central spindle. The inclined wing rollers then produce reverse horizontal traction to push the wandering belt back to the equipment centerline, achieving real-time continuous tracking without external power or human intervention.

The three-roller trough structure forms a stable V-shaped material carrying surface, increasing bulk material loading capacity and reducing side spillage even under fluctuating load volumes.

This idler matches all mainstream conveyor belts including ST series steel cord belts and multi-layer fabric belts, applicable to both short-distance transfer lines and overland long-distance conveying systems with lengths exceeding 2 kilometers.

It perfectly addresses the defects of traditional fixed idlers such as frequent manual alignment, severe belt edge wear and frequent emergency shutdowns triggered by complete belt derailment, becoming a mandatory standard fitting for medium and heavy industrial fixed conveying lines.

Material Selection & Production Craft

1. Frame & Base Material

The entire support frame, upper roller bracket and fixed base adopt Q235B hot-rolled carbon steel with plate thickness ranging from 4mm to 8mm. Welding uses mixed gas shielded arc welding to eliminate internal weld pores and deformation; surface treatments include electrostatic anti-rust spray painting, hot-dip galvanizing or epoxy coating for coastal high-humidity and corrosive chemical plant sites.

The central pivot shaft adopts 45# cold-drawn bright round steel with quenching and tempering treatment, featuring high torsion resistance and low rotation wear to ensure flexible frame pivoting after thousands of hours of continuous operation.

2. Roller Assembly Craft

Roller shells are high-precision ERW seamless steel tubes with wall thickness 3.0–6.0mm, optional HDPE anti-corrosion shells for chemical mineral conveying. Internal supporting shafts are precision turned to concentricity ≤0.7mm to minimize running vibration.

Deep groove ball bearings with C3 clearance are installed at both roller ends, matched with three-stage composite labyrinth nylon seals plus internal grease storage cavities. Lithium-based anti-rust lubricating grease is pre-filled during assembly, blocking dust, slurry and rainwater infiltration to avoid bearing jamming and rust failure. Wing rollers can be customized with rubber lagging for high-friction, wet material handling scenarios.

3. Whole Machine Inspection Process

Every finished YUFENG Troughing Self-Aligning Idler completes full factory testing before shipment, covering roller rotation resistance test, pivot rotation flexibility test, bearing water immersion sealing test, frame load deformation test and anti-rust coating adhesion test. Unqualified products are eliminated at each production node to maintain consistent batch performance for overseas project procurement.

Working Principle & Performance Test Comparison Data

1. Automatic Centering Working Logic

The tracking mechanism operates on pure mechanical friction transmission without electronic or hydraulic auxiliary parts. Under normal balanced load, the idler frame stays in neutral position, and three trough rollers evenly support the conveyor belt and bulk materials. Once uneven material feeding, crosswind or belt tension inconsistency causes lateral drift, the belt edge presses the vertical side guide roller, transferring horizontal force to the upper bracket assembly.

The bracket rotates around the central pivot, tilting the deviation-side wing roller forward to create a centripetal friction force opposite to the belt wandering direction. After the belt returns to the center, the balanced friction restores the idler to its neutral state, forming a closed-loop real-time correction cycle throughout equipment operation. The vertical guide rollers also serve as limit stops to prevent complete belt derailment under extreme deviation conditions.

2. Field Contrast Test Data vs Ordinary Fixed Trough Idler

A six-month continuous tracking test was completed on a 1200mm width open-pit coal mine conveyor line to quantify performance gaps:

Test results confirm that installing YUFENG Troughing Self-Aligning Idler at 30-meter intervals along the conveyor line drastically lowers operational loss and labor input for bulk material enterprises.

Real Industry Application Cases

This idler series has stable supporting records in multiple overseas heavy industrial projects, with verifiable long-cycle operation data across mining, port, cement and metallurgy sectors.

Case 1: Southeast Asian Open-Pit Coal Mine Conveying Line

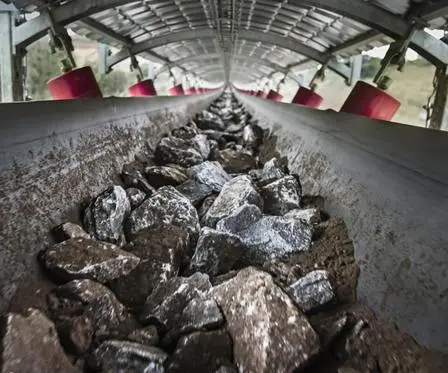

A 1.8km medium-long distance fixed conveyor system transporting raw coal adopted our YUFENG Troughing Self-Aligning Idler for all carrying side tracking positions, operating under local high humidity, heavy dust and variable wind conditions.

After three years of continuous 24-hour operation, the idler frames show no rust deformation, rollers rotate smoothly without bearing jamming, and the main steel cord conveyor belt maintains stable centering with no edge tearing or large-area material spillage. The client canceled two full-time maintenance staff originally assigned to daily belt correction work, achieving obvious labor expenditure savings.

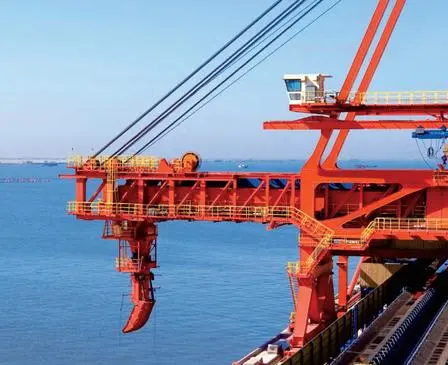

Case 2: European Coastal Port Bulk Ore Handling Terminal

The port’s 1400mm width ore unloading conveyor faces strong crosswind interference year-round, which previously caused frequent belt wandering with standard fixed idlers. After retrofitting the self-aligning trough idler assembly, wind-induced deviation is eliminated entirely. The galvanized frame and multi-stage seal rollers adapt to coastal salt fog corrosion, extending component replacement cycles from 6 months to 24 months.

Additional mainstream application scenarios include domestic cement clinker conveying lines, iron ore metallurgy stockyard conveyors and aggregate quarry crushing feeding systems, with consistent customer feedback on stable troughing performance and ultra-low failure rates. On-site operation photos and complete project reference documents can be provided for purchaser evaluation upon request.

Complete Product Technical Specification Parameters

Core Advantages & Why Choose YUFENG Troughing Self-Aligning Idler

Automatic Mechanical Belt Tracking

The floating pivot frame responds to belt movement automatically, helping maintain centered operation without frequent manual alignment and reducing routine maintenance work.

Enhanced Sealing & Environmental Protection

Multi-layer labyrinth seals help prevent dust, slurry and rainwater from entering the bearing assembly, making the idler suitable for demanding mining, port and cement conveying environments.

Stable Trough Support & Deviation Protection

The three-roller trough structure provides stable support for bulk materials, while vertical guide rollers help limit excessive belt movement and reduce the risk of belt derailment and edge damage.

Flexible Specification Customization

YUFENG supports customized trough angles, roller diameters and frame treatments to suit different conveyor widths, load conditions and belt constructions, including steel cord and fabric conveyor belts.

Standardized Manufacturing & Full Inspection

Every Self-Aligning Idler assembly undergoes systematic production and performance inspection before shipment. Consistent factory quality helps reduce replacement frequency and improve reliability for overseas conveyor projects.

Lower Total Operating Cost

By reducing belt edge wear, manual alignment work, unexpected downtime and maintenance requirements, YUFENG Self-Aligning Idler helps lower the long-term operating cost of bulk material conveying systems.

Factory-Direct Technical Support

YUFENG operates complete roller processing and testing facilities and provides parameter consultation, drawing customization, factory-direct supply and post-installation technical guidance for bulk material handling projects.

Frequently Asked Questions

Q1: What is the installation spacing requirement for YUFENG Troughing Self-Aligning Idler on conveyor lines?

A1: For general medium-load mining and cement conveyors, install one set every 30 meters along the carrying strand. For long-distance overland conveyors or port equipment with strong crosswind interference, shorten the interval to 15–20 meters, and additionally arrange one set 15 meters away from head and tail pulleys to correct belt deviation during transition flat-trough sections.

Q2: Can this idler be retrofitted to existing old conveyor systems without major frame modification?

A2: Yes. Standard base mounting hole dimensions follow universal TD75 and DTII conveyor frame standards, directly replacing original fixed trough idler assemblies without cutting or re-drilling the main conveyor stringer. For non-standard old equipment, we provide customized base bracket drawings to match existing installation sizes, supporting seamless retrofitting transformation.

Q3: What routine maintenance operations are required for YUFENG Troughing Self-Aligning Idler?

A3: Daily inspection only requires visual checks for roller jamming, guide roller surface wear and frame coating peeling. Conduct a quarterly cleaning of dust and material buildup around the central pivot shaft to guarantee flexible rotation. The pre-filled bearing lubricating grease lasts 12–18 months under normal working conditions; supplementary greasing is only needed for high-temperature continuous operation sites.

Worn rollers can be individually disassembled and replaced without removing the entire idler frame, greatly simplifying maintenance work.

Q4: What special customized versions can be produced for extreme working conditions?

A4: We support multiple customized upgrades: HDPE anti-corrosion roller shells for chemical mineral and salt material conveying; thick rubber lagging wing rollers for wet sticky ore handling; full hot-dip galvanized frames for coastal salt fog environments; high-temperature resistant bearings for cement clinker conveying lines working above 70℃; and heavy-duty reinforced frames for ultra-wide 1800–2000mm width high-tonnage conveyors.
