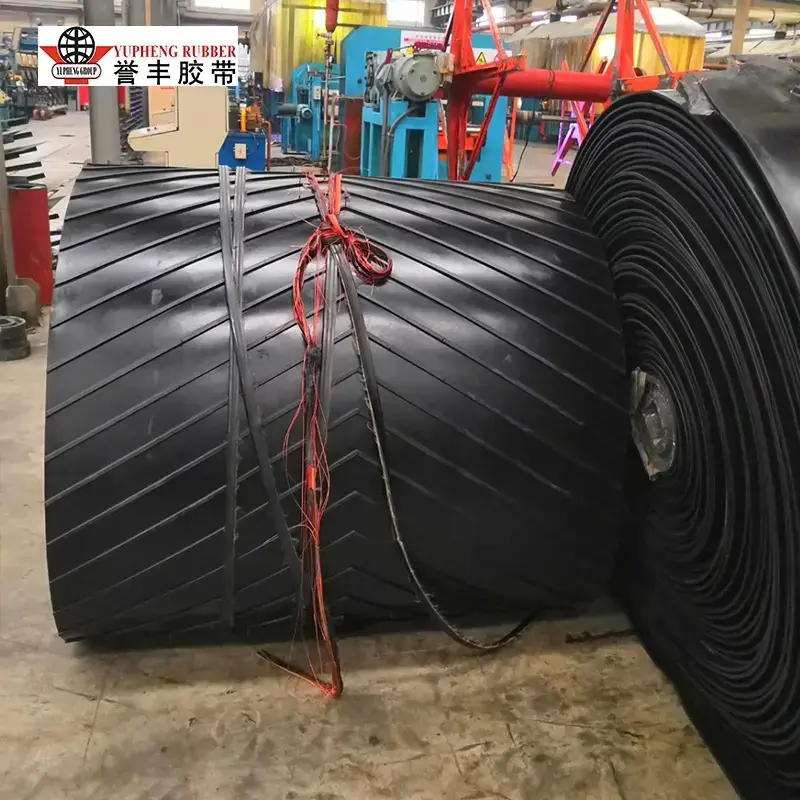

Diamond Pattern Conveyor Belt

Engineered for stable traction in demanding conveying conditions, YUFENG Diamond Pattern Conveyor Belt features raised diamond-shaped protrusions that provide consistent multi-directional grip. Its tread-inspired surface helps shed water and reduce material buildup, maintaining traction in wet, dusty or vibration-prone environments. It is well suited for food processing, mining and other applications where product stability and surface cleanliness are essential.

Design Philosophy & Pattern Structure

1. Multi-Directional Traction for Stable Material Handling

YUFENG Diamond Pattern Belt uses evenly distributed raised diamond profiles to create balanced friction across the belt surface. Unlike chevron belts that mainly provide directional traction, the diamond structure maintains grip when materials move forward, shift laterally or encounter changes in conveying direction. This omni-directional traction makes the belt suitable for applications requiring stable material positioning rather than one-way bulk material guidance.

2. Optimized Channels for Cleaner Belt Operation

The raised diamond blocks form interconnected channels across the belt surface. These channels help release water, dust, fines and sticky residues during operation, reducing material buildup compared with smooth flat belts. The structure is particularly useful for wet conveying, powder handling and applications requiring frequent belt cleaning or wash-down.

3. Controlled Contact for Product Protection

The raised diamond surface provides reliable traction while limiting direct contact between the conveyed product and the belt surface. This helps reduce friction marks, surface damage and unwanted product movement. The non-marking design is suitable for food products, pharmaceutical packaging, electronic components and finished goods where appearance and surface quality are important.

4. Customizable Pattern Structure for Different Conditions

YUFENG can adjust diamond size, spacing, pattern height, density, belt thickness and carcass structure according to the conveying application. Different cover materials can also be selected to match specific operating conditions.

Available options include PVC, PU and rubber covers, as well as customized formulations for abrasion resistance, oil resistance and food-contact applications. This allows the Diamond Pattern Belt to be configured for packaging, logistics, agriculture, mining and general industrial conveying.

Material Selection & Integrated Manufacturing Process

Reinforced Core Structure for Stable Conveying

YUFENG Diamond Pattern Conveyor Belt uses carefully selected reinforcement materials according to different load requirements and operating conditions. All carcass materials undergo strict incoming inspection before production to ensure consistent tensile performance, dimensional stability and long-term running reliability.

EP Fabric Carcass: Polyester and nylon composite fabric structure provides excellent dimensional stability, low elongation and good resistance to stretching. It is suitable for light and medium-duty conveying systems including packaging, logistics and general industrial transportation.

NN Nylon Carcass: Nylon fabric reinforcement offers higher flexibility, impact resistance and fatigue resistance. It is suitable for applications requiring frequent bending, repeated start-stop operation and dynamic conveying conditions.

Steel Cord Reinforcement: High-strength steel cord structure is available for heavy-duty conveying applications requiring higher tensile capacity, longer conveying distances and larger material loads.

The optimized carcass structure helps maintain belt alignment, reduce permanent elongation and improve operational stability during continuous industrial conveying.

Patterned Cover Materials for Different Industrial Requirements

The diamond-patterned surface layer is manufactured with different cover materials according to application conditions, material characteristics and environmental requirements.

Integrated Diamond Pattern Molding Technology

The diamond pattern of YUFENG Diamond Pattern Belt is formed through precision molding and integrated vulcanization technology. Unlike low-quality belts where surface patterns are simply printed, bonded or attached, the diamond structures are directly fused with the belt cover layer during manufacturing.

This integrated structure provides stronger pattern adhesion, preventing diamond blocks from peeling, cracking or separating during long-term operation. The belt maintains stable friction performance even under continuous abrasion, impact and repeated conveying cycles.

YUFENG supports customized diamond pattern designs according to different material handling requirements, including diamond size, pattern height, spacing density, belt thickness, carcass structure and cover material selection.

Factory Quality Inspection System

Before shipment, every YUFENG Diamond Pattern Belt undergoes strict factory inspection procedures to verify mechanical strength, surface performance and structural reliability.

Tensile Strength Testing: Ensures the belt carcass meets designed load-bearing requirements and maintains stable operation under continuous tension.

Abrasion Resistance Testing: Evaluates cover rubber durability and pattern wear performance in abrasive working environments.

Pattern Adhesion Testing: Confirms the integrated diamond structure remains firmly bonded with the belt surface during long-term use.

Low-Temperature Flexibility Testing: Ensures the belt maintains flexibility and avoids cracking under cold operating conditions.

Dimensional Stability Inspection: Verifies belt width, thickness and running accuracy before delivery.

Performance Verification & Application Comparison

Six-Month Industrial Tracking Test

YUFENG conducted six months of continuous field tracking tests across food processing, mining and logistics applications. The diamond pattern conveyor belt was compared with traditional flat belts and chevron pattern belts under similar operating conditions to verify grip performance, material stability and maintenance requirements.

Improved Durability Under Abrasive Conditions

Based on field operation records, YUFENG Diamond Pattern Belt demonstrates improved durability compared with conventional flat belts in abrasive conveying environments.

The integrated molded diamond structure provides better resistance against surface damage compared with printed or attached patterns. Combined with reinforced carcass construction and optimized cover rubber formulas, the belt can maintain stable traction performance while reducing replacement frequency and maintenance costs.

Real Industrial Application Cases

Case 1: Food Processing Inclined Conveying Project

A Southeast Asian food processing company experienced frequent product loss when transporting sticky dough and glazed products on inclined conveyor sections. The previous flat conveyor belt caused material adhesion, product sliding and increased cleaning requirements.

YUFENG supplied a food-grade PVC Diamond Pattern Belt with optimized diamond spacing. The patterned surface improved product release performance, reduced slipping during inclined conveying and simplified daily cleaning operations.

After continuous production operation, the customer achieved more stable material transportation and reduced losses caused by product movement and surface sticking.

Case 2: Wet Ore Transportation in Mining Operation

A South American copper mine required a conveyor belt for transporting wet ore materials on inclined sections with multiple transfer points. Traditional chevron belts performed well on straight inclines but experienced material rollback and reduced stability at changing directions.

YUFENG supplied a heavy-duty rubber Diamond Pattern Conveyor Belt with reinforced carcass structure. The omni-directional friction generated by the diamond surface improved material holding performance, while the pattern channels reduced wet fine material accumulation.

After long-term operation, the belt maintained stable conveying performance and reduced cleaning and adjustment requirements.

Case 3: Automated Logistics Sorting System

A European distribution center required conveyor belts for a complex sorting system including inclined sections, decline sections and transfer points. Flat belts caused package movement during speed changes and frequent adjustments were required.

YUFENG provided a non-marking Diamond Pattern Belt designed for parcel transportation. The balanced friction surface improved package stability while protecting product appearance during high-frequency conveying.

The customer achieved smoother sorting operations with reduced maintenance frequency and improved conveyor reliability.

Factory Verification Support

YUFENG can provide production records, inspection documents, technical parameters and real application reference materials for customers evaluating Diamond Pattern Belt solutions.

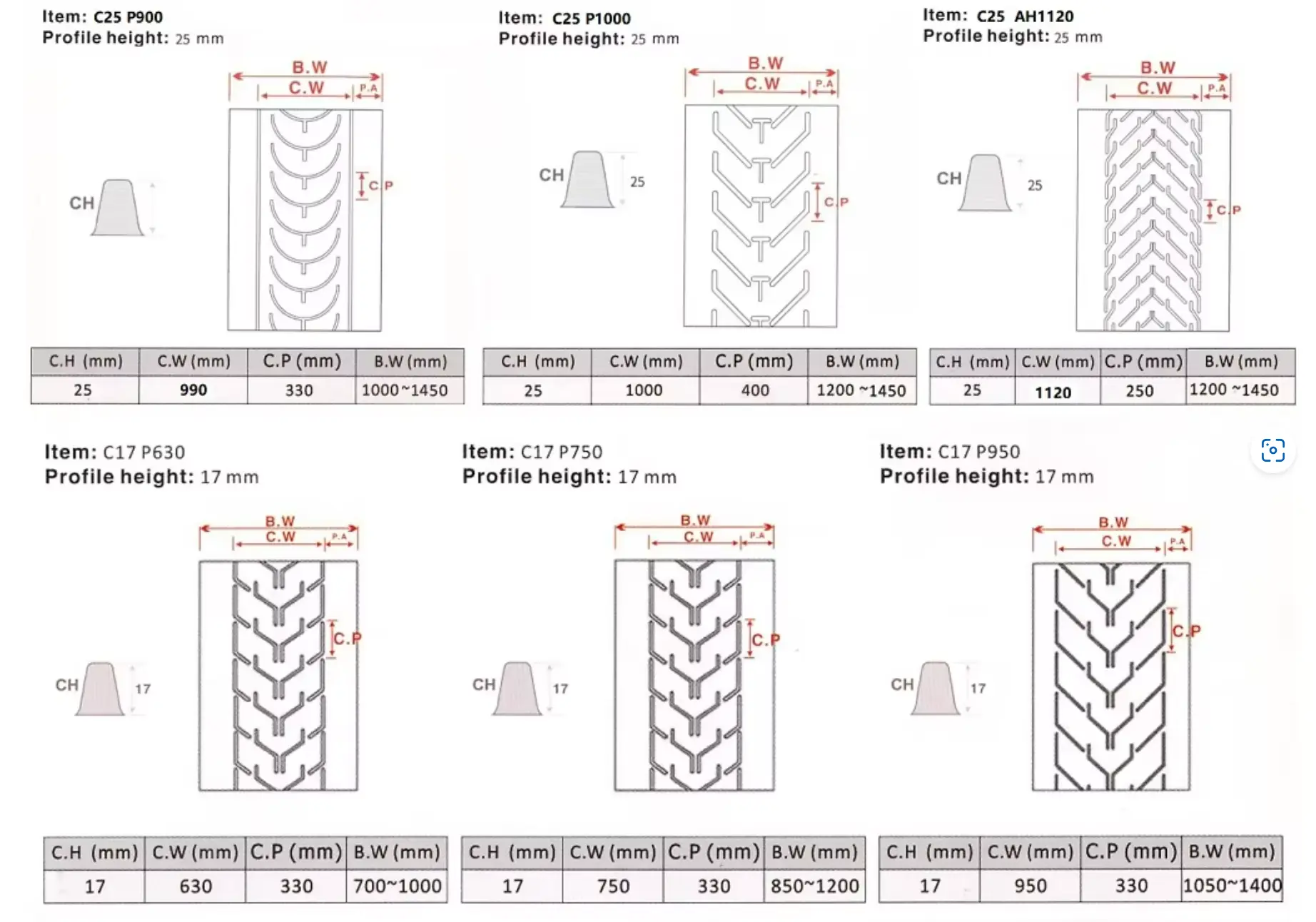

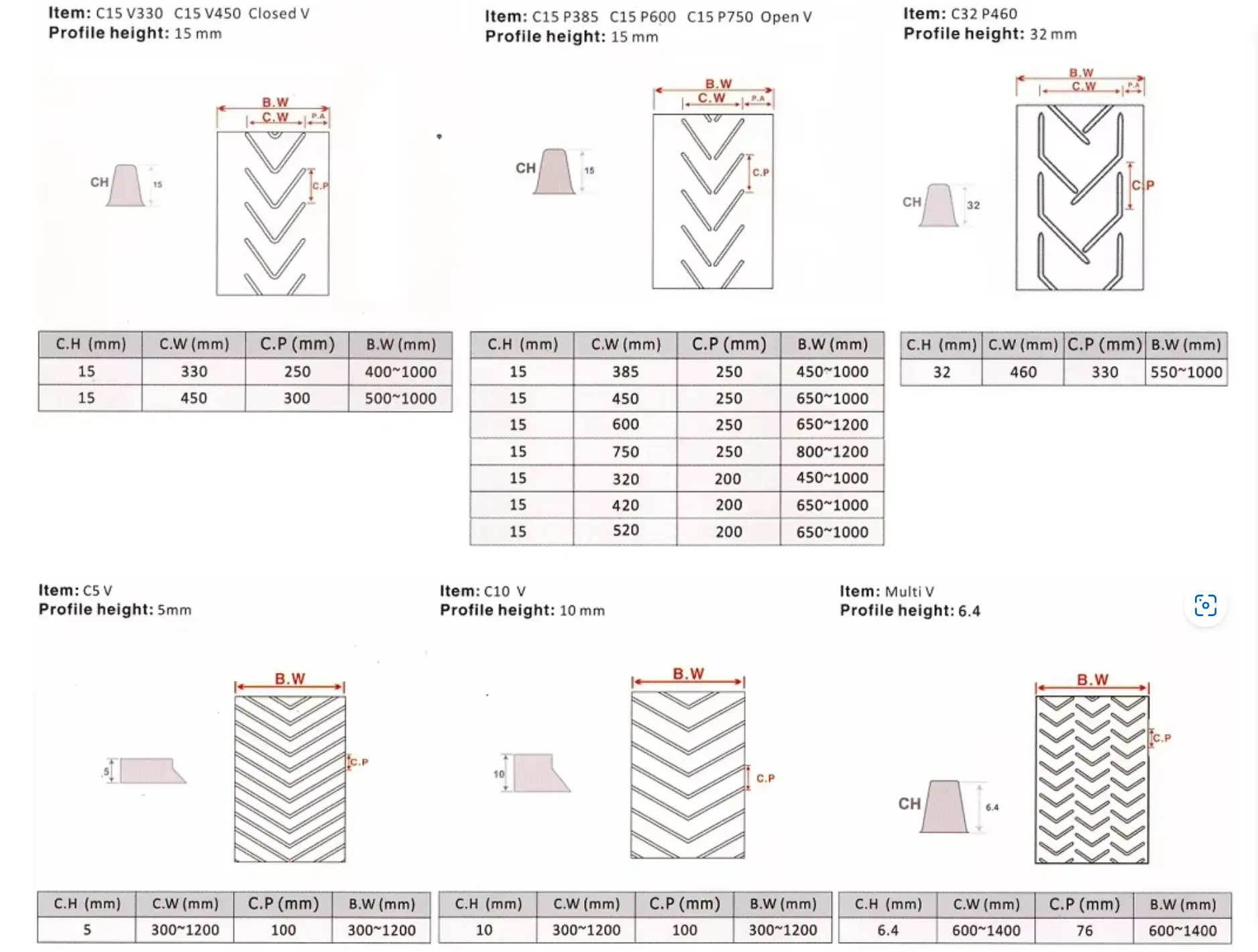

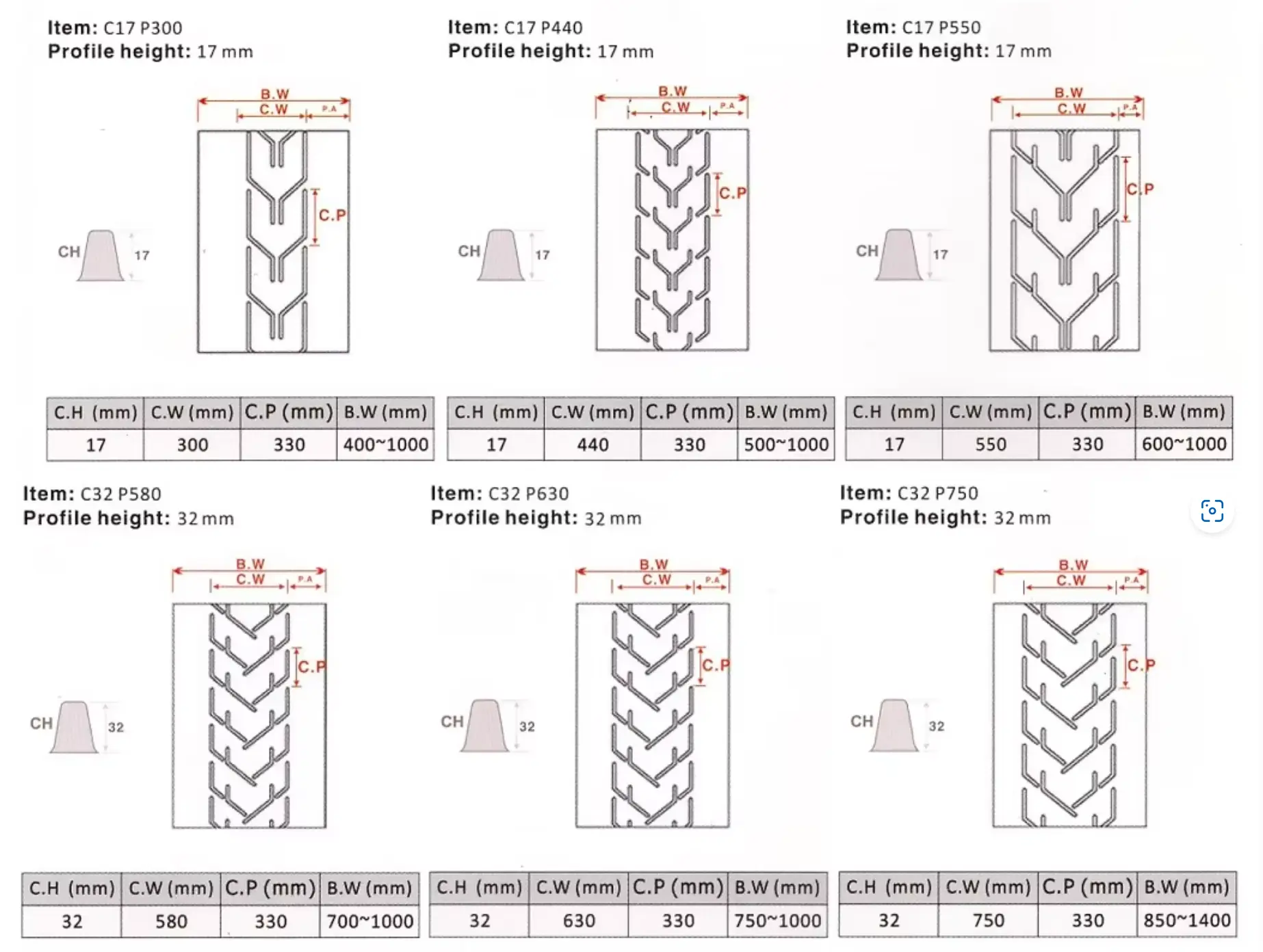

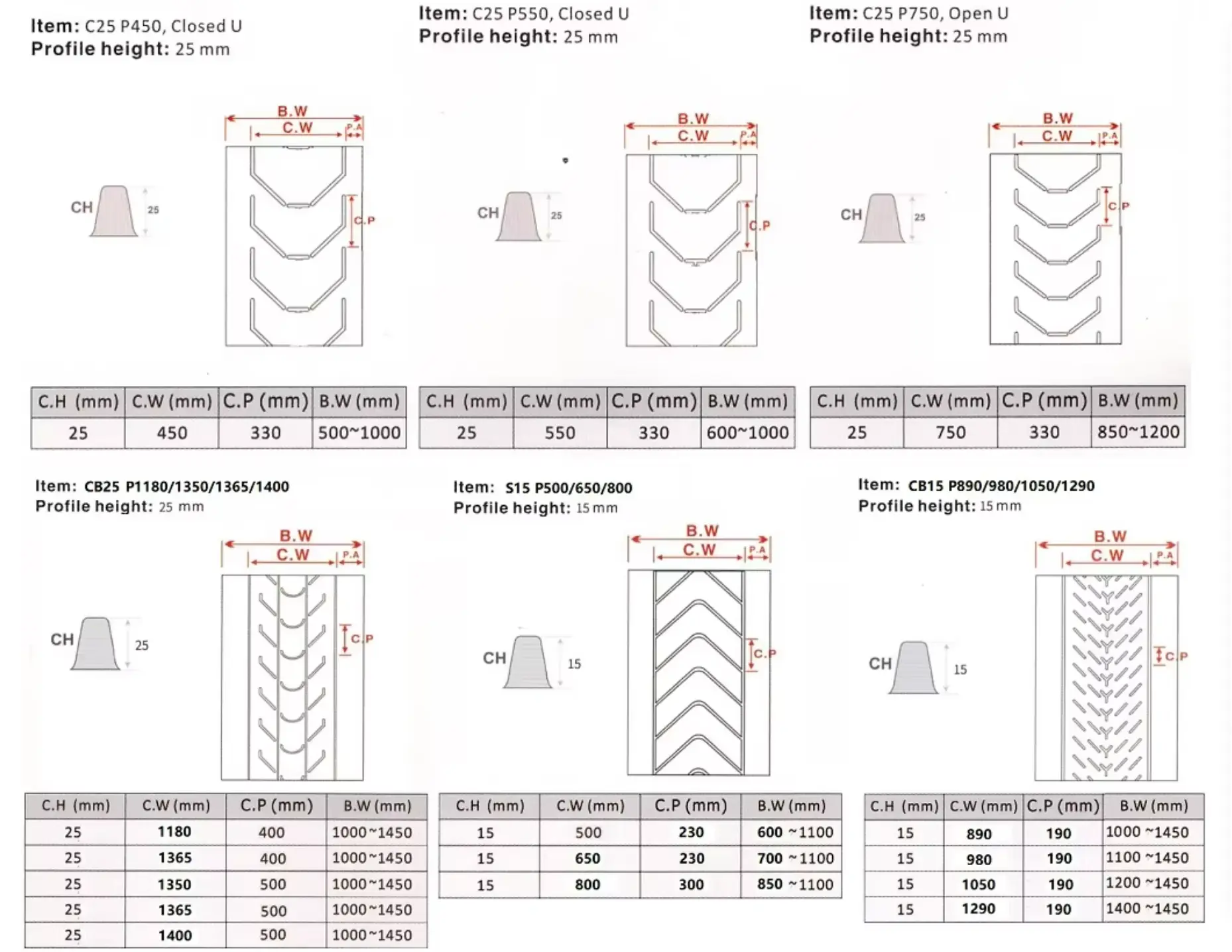

Complete Product Specification Parameters

We support full-size production and custom processing of diamond pattern belts, covering multiple material types and configurations:

Why Choose YUFENG Diamond Pattern Belt

1. Omni-Directional Grip for Stable Conveying

Unlike chevron and herringbone belts that mainly provide directional traction, YUFENG Diamond Pattern Conveyor Belt adopts a symmetrical diamond surface design to generate balanced friction in multiple directions. The omni-directional grip performance helps reduce material shifting during curved conveying, frequent start-stop operation and inclined transportation, ensuring stable product handling.

2. Self-Cleaning Pattern Reduces Maintenance

The raised diamond structure creates natural channels that help discharge water, dust and sticky residues during operation. Compared with flat belts, it reduces material buildup, cleaning frequency and maintenance downtime. This self-cleaning feature improves conveying stability in wet, dusty and food processing environments.

3. Non-Marking Surface Protects Products

The optimized diamond pattern provides reliable grip while maintaining gentle contact with conveyed materials, reducing scratches, marks and product damage. It is suitable for finished goods, food products, electronic components and other applications requiring stable yet careful handling.

4. Flexible Material Options for Different Applications

YUFENG offers various cover materials to meet different working conditions:

Rubber Diamond Pattern Belt: For mining, aggregates and heavy-duty applications requiring wear and impact resistance.

PVC Diamond Pattern Belt: For packaging, logistics and general industrial conveying with easy cleaning requirements.

PU Diamond Pattern Belt: For food processing and applications requiring oil and chemical resistance.

5. Factory-Direct Supply & Customized Solutions

With more than 10 years of manufacturing and export experience, YUFENG provides complete conveyor belt solutions including material selection, pattern customization, specification matching and technical support. Through strict quality control and professional production capability, YUFENG helps global customers improve conveying reliability, reduce maintenance costs and extend belt service life.

Suitable Applications

YUFENG Diamond Pattern Conveyor Belt is designed for industrial conveying systems that require reliable traction, stable material positioning and effective surface cleaning performance. The omni-directional diamond structure makes it suitable for a wide range of applications involving inclined conveying, wet materials, product handling and complex conveyor layouts.

1. Food Processing Industry

Suitable for conveying sticky, glazed and slippery food products on inclined conveyor sections. Food-grade PVC and PU options provide easy cleaning performance for applications requiring frequent wash-down operations and strict hygiene control.

Typical applications include bakery products, packaged food, meat processing, snack production and food ingredient transportation.

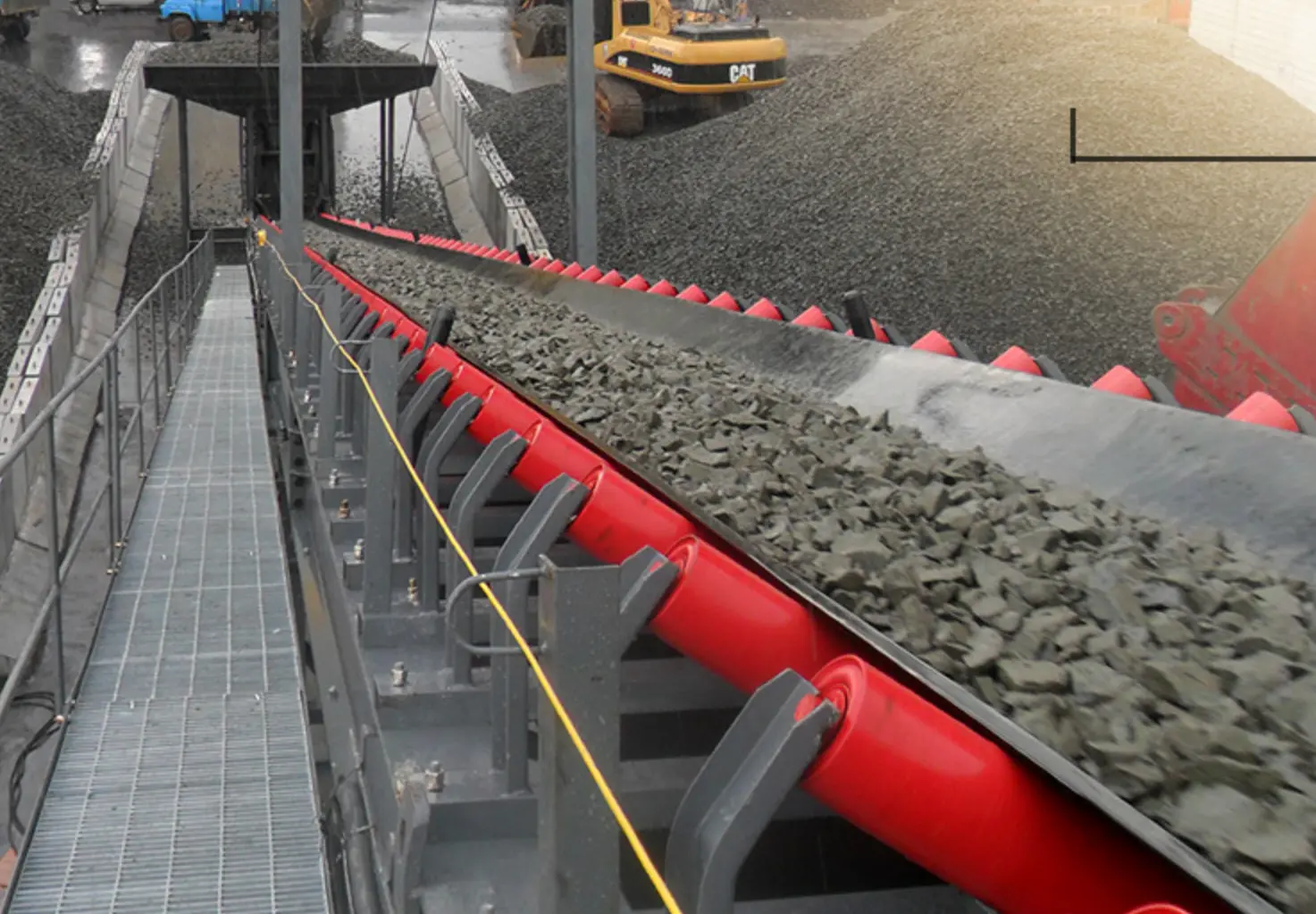

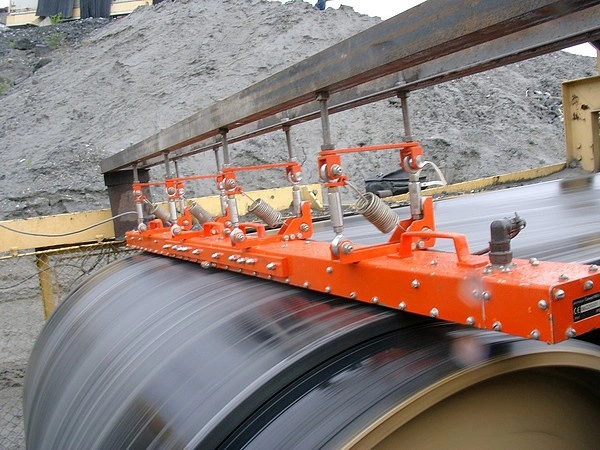

2. Mining and Quarry Operations

The diamond pattern surface provides stable grip for wet ore, aggregates and mineral materials, especially in inclined conveying systems with changing directions or moisture conditions.

The self-cleaning surface helps reduce material buildup caused by wet fines and improves conveying stability in demanding mining environments.

3. Agriculture and Bulk Material Handling

The non-slip diamond surface is suitable for agricultural conveying applications where materials require gentle handling and stable transportation.

Common applications include grain transfer, fruit and vegetable washing lines, sugar mill raw material conveying and agricultural product sorting systems.

4. Logistics and Warehousing Systems

Diamond Pattern Belt helps maintain stable movement of packages, cartons and parcels during inclined transportation and automated sorting processes.

The multi-directional grip performance reduces product shifting during acceleration, braking and continuous logistics operations.

5. Packaging Industry

The belt is widely used for transferring packaged finished goods between different production levels. The patterned surface improves product stability while minimizing damage to packaging appearance.

It is suitable for carton conveying, boxed product transfer and automated packaging production lines.

6. Construction Material Conveying

Heavy-duty rubber diamond pattern belts provide strong wear resistance and impact resistance for transporting construction materials such as concrete aggregates, crushed stone, bricks and sand.

The all-directional traction design improves conveying reliability under dusty and abrasive operating conditions.

7. Manufacturing and Assembly Applications

Diamond Pattern Belt provides stable product positioning for manufacturing processes requiring controlled movement of components and finished parts.

Typical applications include electronic component handling, assembly lines, parts transportation and industrial production systems.

Frequently Asked Questions

1. What Is the Difference Between a Diamond Pattern Belt and a Chevron Pattern Belt?

The main difference is the direction of grip. Chevron or herringbone belts use V-shaped ribs that mainly provide traction in one conveying direction, making them suitable for straight inclined transportation of bulk materials.

YUFENG Diamond Pattern Conveyor Belt uses raised diamond-shaped protrusions arranged in a balanced grid structure, creating omni-directional friction. This allows stable conveying performance when the belt experiences curves, direction changes, lateral movement or complex operating conditions.

Diamond pattern belts are therefore more versatile for conveying systems that require flexible material handling performance beyond straight-line conveying.

2. Is the Diamond Pattern Belt Suitable for Food-Grade Applications?

Yes. YUFENG provides food-grade PVC and PU diamond pattern belts designed for food processing environments requiring cleanliness, easy maintenance and reliable conveying performance.

The non-porous surface is easy to clean, while the self-cleaning diamond structure helps reduce material accumulation and contamination risks during continuous operation.

3. What Customization Options Are Available?

YUFENG supports comprehensive customization according to different application requirements, including:

Diamond size from 10mm to 50mm, pattern height from 0.8mm to 25mm, pattern density, belt width, belt thickness, carcass structure, cover material and belt color.

Available material options include rubber, PVC and PU covers, with fabric or steel cord reinforcement according to load requirements. All customized belts undergo factory performance testing before delivery.

4. How Does the Self-Cleaning Feature Work?

The raised diamond pattern creates natural channels between each protrusion. During belt movement, water, dust, fine particles and sticky residues can flow through these channels instead of accumulating on the conveying surface.

This structure improves surface cleanliness, maintains stable friction performance and reduces maintenance requirements compared with conventional flat conveyor belts.

5. What Is the Maximum Conveying Angle of a Diamond Pattern Belt?

YUFENG Diamond Pattern Conveyor Belt can achieve inclined conveying angles of up to approximately 45° depending on material characteristics and belt specifications.

The actual maximum angle depends on factors including material particle size, moisture content, material shape, conveying speed and diamond pattern configuration.

Our technical team can recommend the most suitable pattern size, height and density according to your actual working conditions.

6. What Is the Service Life and Maintenance Requirement?

Under standard operating conditions, YUFENG Diamond Pattern Belt can provide longer service life than conventional flat belts, especially in applications requiring additional traction and surface cleaning performance.

Routine maintenance includes checking pattern wear, removing embedded materials from pattern grooves, maintaining proper belt tension and inspecting belt surface condition regularly.

The self-cleaning design helps reduce cleaning frequency and improves overall conveying efficiency.
