Equal Length Troughing Idler Roller

Balanced load distribution is the core advantage of YUFENG Equal Length Troughing Idler Roller. Available in 89–159 mm diameters for 400–2400 mm belt widths, its three equal-length rollers provide symmetrical belt support and help reduce uneven edge wear and material spillage. Each unit undergoes rotation, impact, corrosion and sealing tests, with CAD drawings and sample testing available.

Product Definition & Complete YUFENG Manufacturing Process

1. Equal-Length Troughing Idler Structure

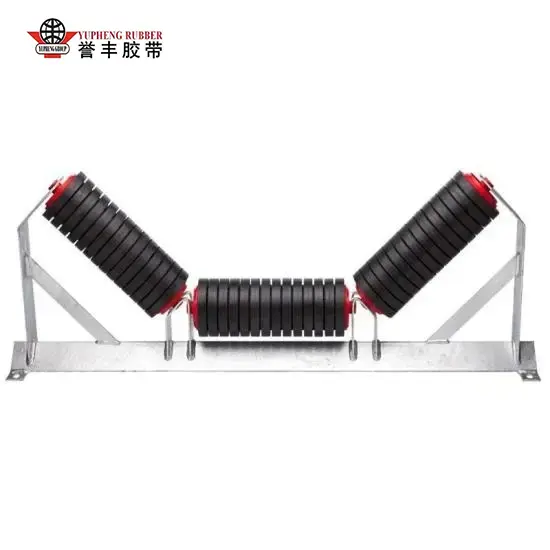

YUFENG Equal-Length Troughing Idler consists of three rollers with the same length and diameter mounted on an integrated stamping bracket. One horizontal center roller and two symmetrical inclined side rollers form a balanced concave carrying profile for stable bulk material conveying.

Compared with unequal-length troughing idlers that use shorter wing rollers, the equal-length design provides more consistent support across the conveyor belt. This helps distribute load more evenly and reduces localized stress, uneven belt wear and potential belt deviation caused by inconsistent roller dimensions.

2. Reinforced Construction for Heavy-Duty Operation

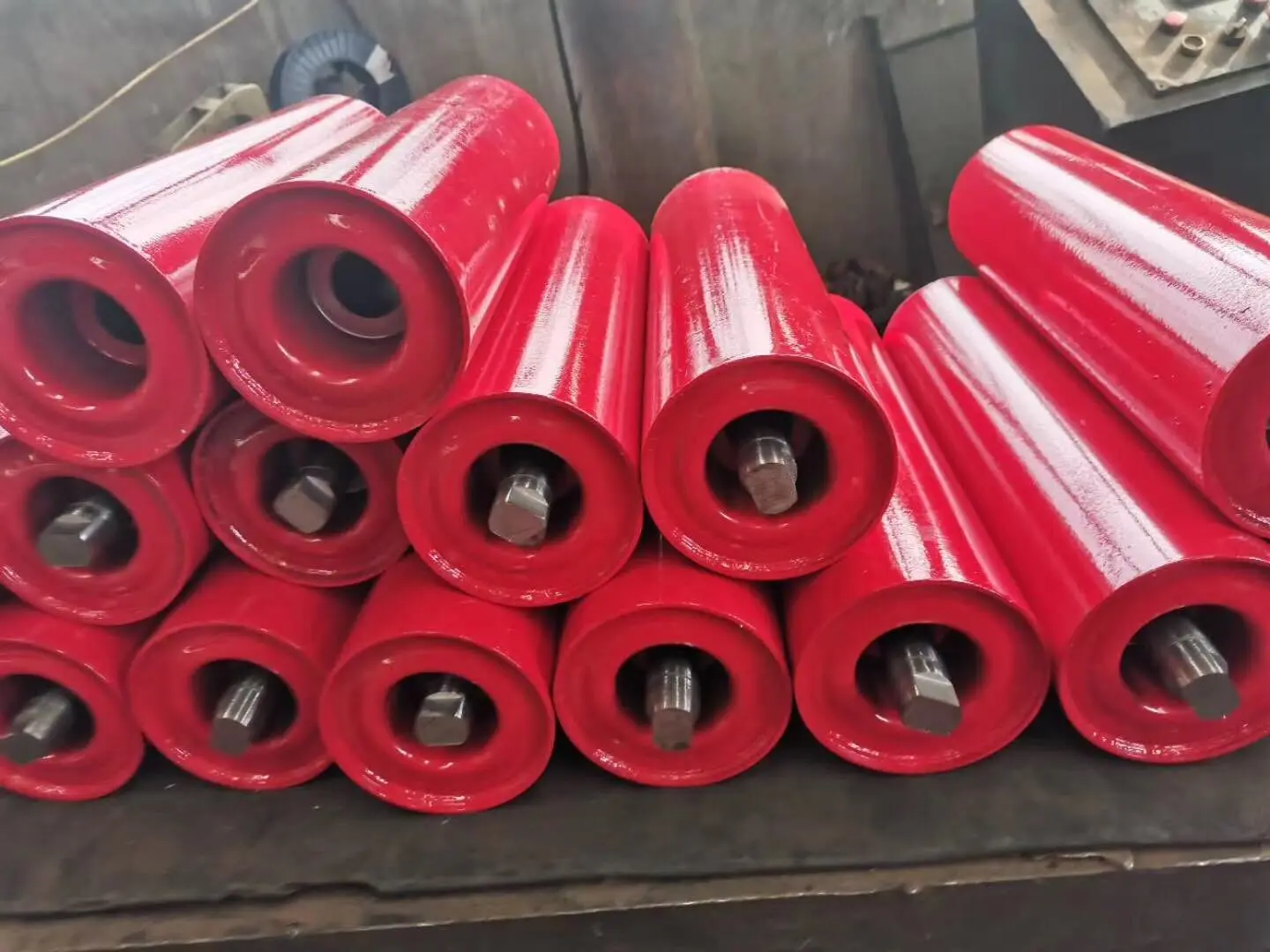

YUFENG uses Q235 seamless thick-wall steel tubes, solid carbon steel integral shafts, reinforced cold-stamped brackets and multi-layer labyrinth composite double oil seals. CNC cutting, gas-shielded welding and electrostatic high-temperature anti-rust coating are applied to improve dimensional accuracy, structural strength and corrosion resistance.

While some low-cost idlers use 2.0–2.5 mm thin-wall tubes that may deform under prolonged heavy loads, YUFENG Equal-Length Troughing Idlers use 3.5 mm thick seamless steel tubes. High-precision double-sealed 6204, 6205 and 6306 series bearings are available according to load requirements.

3. Precision Rotation & Stable Running Performance

The radial runout of each roller is controlled within 0.5 mm, while static rotation resistance is maintained at approximately 1.5–2.5 N. These manufacturing controls help achieve smooth rotation, low friction and reduced operating noise during continuous conveying.

The reinforced structure is suitable for demanding environments involving high dust concentration, high humidity, mineral slurry splashing and mild acid or alkali exposure, providing stable support for long-term conveyor operation.

4. Customized Materials for Different Applications

In addition to standard steel equal-length troughing idlers, YUFENG provides specialized configurations including rubber-lagged wear-resistant rollers, UHMWPE polymer anti-corrosion rollers and stainless-steel shaft options.

These configurations can be selected according to material abrasiveness, corrosion conditions, moisture exposure and conveyor requirements. All incoming raw materials undergo chemical composition and mechanical strength inspections before entering production to maintain consistent manufacturing quality.

Authentic Long-Term Field Test Data

1. Six-Month Underground Coal Mine Field Test

YUFENG technical team conducted a 6-month uninterrupted field operation test of the Equal Length Troughing Idler Roller in an underground coal mine to evaluate its long-term performance under demanding conveying conditions. The test covered continuous operation, bearing load, sealing durability, belt protection and material spillage control.

Test Environment: Underground coal mine roadway with dust concentration of ≥1200 mg/m³, ambient temperature ranging from -10°C to +65°C, and 24-hour continuous conveying operation.

Single-Group Bearing Load: Up to 2,800 kg, handling raw coal, gangue and mixed ore bulk materials.

2. Verified Performance Results

Service Life: The test idlers accumulated 32,600 stable running hours, with a recorded service life 3–5 times longer than ordinary thin-wall unequal-length idlers used for comparison.

Sealing Durability: After 30 consecutive days of dust and high-pressure water spray circulation testing, all test samples showed zero bearing jamming and zero internal lubricant leakage.

Belt Protection: The balanced equal-length roller structure helps reduce unilateral edge friction between the conveyor belt and rollers, extending the overall belt replacement cycle by up to 40% under the tested conditions.

Material Spillage: With a standard 35° trough angle, the tested equal-length idler system achieved a measured spillage rate of 0.48%, compared with 3.2% for parallel flat idlers and unequal-length troughing idlers under the same conveying volume.

Full Product Classification & Technical Parameters

1. Standard Equal Length 3-Roll Troughing Idler

A general-purpose configuration for mining, cement, grain and other bulk material conveying systems. Standard trough angles include 20°, 30°, 35° and 45°.

2. Equal Length Impact Buffer Troughing Idler

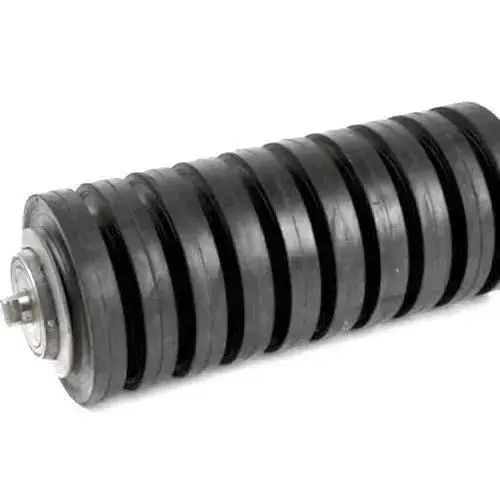

Designed for loading and material feeding points, these rollers feature thick rubber lagging to absorb impact from falling ore and reduce direct impact on the conveyor belt and roller structure.

3. Equal Length Automatic Self-Aligning Troughing Idler

Equipped with a deviation-correction support structure to help guide the conveyor belt back toward its normal running position, reducing edge abrasion and potential belt damage.

4. UHMWPE Anti-Corrosion Equal Length Troughing Idler

Uses a UHMWPE polymer roller body with stainless steel shaft options for corrosive environments such as chemical plants, salt yards and wastewater treatment facilities exposed to acid, alkali or salt fog.

Standard Technical Parameter Table

Real Global Customer Project Cases

1. Mongolia Open-Pit Coal Mining Project

A 12 km cross-mountain coal conveyor system with a 1,200 mm wide heavy-duty belt and designed conveying capacity of 2,000 tons per hour previously experienced premature failures with unequal-length idlers after approximately 6,000 operating hours.

YUFENG supplied customized 35° reinforced sealing Equal Length Troughing Idlers with thickened tube walls and enhanced labyrinth sealing. After 18 months of continuous outdoor operation, the project recorded zero roller replacement and zero reported roller failures, while monthly maintenance labor costs were reduced by approximately 65%.

2. Southeast Asia Coastal Ore Unloading Terminal

The project involved continuous outdoor ship unloading and stockyard conveying under severe coastal salt-fog corrosion. YUFENG supplied UHMWPE Anti-Corrosion Equal Length Troughing Idlers with stainless steel internal shafts.

After two years of continuous operation, the supplied rollers showed no reported rust-related failure or bearing blockage, providing reliable support for long-term coastal bulk material handling.

3. Domestic Cement Clinker Production Line

A cement clinker production line with a daily capacity of 5,000 tons required rollers for high-temperature kiln ash conveying and highly abrasive aggregate transportation. YUFENG supplied rubber-lagged Equal Length Impact Troughing Idlers to reduce impact and abrasive contact between the conveyed material, rollers and conveyor belt.

The customized impact-resistant configuration helps protect the conveyor belt surface, reduce abnormal wear and extend the operating cycle of the conveying system.

Core Competitive Advantages vs Ordinary Unequal-Length Market Idlers

Applicable Industrial Scenarios

YUFENG Equal Length Troughing Idler Roller is designed for bulk material conveying systems requiring balanced load distribution, stable belt support and reliable long-term operation. Different roller materials and configurations can be selected according to the working environment.

1. Mining Industry

Suitable for open-pit coal mines, underground iron ore, gold ore and bauxite conveying systems, supporting long-distance transportation of heavy bulk materials under demanding operating conditions.

2. Thermal Power Plants

Used for coal feeding lines, limestone desulfurization material conveying, and boiler ash and slag transportation systems. The reinforced roller structure supports continuous bulk material handling.

3. Building Materials Industry

Suitable for cement plants, sand and stone aggregate quarries, gravel processing lines and other applications involving abrasive bulk materials and continuous conveying.

4. Ports & Bulk Cargo Terminals

Designed for coal, iron ore, grain and chemical bulk cargo loading, unloading and stockyard conveying systems. Different roller materials and sealing configurations can be selected for outdoor and high-humidity environments.

5. Chemical & Salt Production

UHMWPE anti-corrosion equal-length troughing idlers are available for applications exposed to acid, alkali, salt fog and other corrosive conditions, including chemical plants, salt production facilities and related material handling systems.

6. Grain Processing Industry

Low-wear and food-grade roller options are suitable for wheat, corn, rice and other agricultural bulk material storage and conveying systems, providing smooth rotation and stable belt support.

Factory Professional Strength & Quality Assurance

YUFENG operates a standardized 20,000 m² automated production workshop equipped with more than 50 sets of CNC precision processing equipment. With a monthly production capacity of up to 80,000 conveyor idlers and 15 years of dedicated manufacturing experience, we focus on reliable roller solutions for mining, cement, ports, power generation, agriculture and other bulk conveying industries.

1. Manufacturing Capability

Our production system integrates CNC precision processing, roller tube fabrication, shaft machining, welding, bearing assembly, sealing and surface treatment. The production capacity supports both standard roller orders and customized specifications for large-scale conveying projects.

2. Quality Certifications & Compliance

Our roller products are manufactured under a controlled quality management system and support ISO 9001, MT/T 821 and CE-related requirements. Third-party factory audit reports and product performance test documents can be provided for qualified customer projects.

3. Five-Stage Quality Control

Our QC process covers raw material incoming inspection, semi-finished welding strength testing, finished roller rotation resistance testing, sealing aging simulation and final packaging inspection. This multi-stage inspection system helps maintain consistent dimensional accuracy, sealing performance and rotational stability across production batches.

4. CAD Engineering & Technical Support

YUFENG provides free CAD engineering drawings for project matching, installation confirmation and conveyor structure verification. Our technical team can recommend suitable roller diameter, trough angle, bearing configuration and bracket dimensions according to belt width and conveying conditions.

5. Sample & Customized Production Service

Small trial orders can be supported with sample delivery in approximately 7 days, depending on product specifications. Standard mass-production orders generally require 15–20 days, while customized specifications are scheduled according to project requirements and production complexity.

6. Global After-Sales Support

YUFENG provides remote technical guidance for roller selection, installation and operation. For qualified large-scale overseas industrial projects, we can also provide on-site matching assistance to help customers achieve reliable conveyor performance.

Conversion

Are you searching for long-service-life, low-maintenance roller to upgrade your bulk conveyor system and cut long-term operation cost? Contact our professional engineering team right now to apply for free product samples, get customized technical drawings and factory direct wholesale price list! We provide one-stop complete conveyor component matching solution for all your material handling project demands.

FAQ Section

1. Q: What are the core advantages of our equal length troughing idler roller over unequal-length idlers?

A: Our equal-length three identical rollers realize fully balanced load distribution, eliminate unilateral belt stress and edge abrasion, lower material spillage and extend conveyor belt service life greatly. 35° is the most universal standard angle suitable for most mining and cement industrial projects. 20° light-angle type fits light-load grain transportation, while 45° deep-trough model is designed for high-capacity bulk conveying. YUFENG can adjust the bracket inclination angle completely according to your conveyor design drawing.

2. Q: Can we supply anti-corrosion equal-length trough idlers for salt yards and chemical production plants?

A: Absolutely. We provides three anti-corrosion solutions: UHMWPE non-metal polymer equal-length idlers, rubber-coated wear-resistant anti-rust steel idlers and customized stainless steel internal shaft idlers, which can adapt to long-term acid, alkali and salt fog corrosive working environments.

3. Q: What are minimum order quantity and standard delivery time?

 A: The sample trial order MOQ is 1 piece; bulk formal order MOQ is 100 sets. Standard stock conventional equal-length idler specifications can be delivered within 7 working days, while customized non-standard equal length troughing idler roller requires 15–20 days of production period.

4. Q: Do equal-length trough idlers conform to international industrial design standards?

A: All finished products fully comply with CEMA, ISO, MT/T 821 and DIN global industrial standards, complete official test reports are attached for cross-border export customs clearance.
