Self-Aligning Troughing Idler

Keeping the conveyor belt centered is the key function of YUFENG Self-Aligning Troughing Idler. Its automatic pivoting frame responds to lateral belt movement and helps correct misalignment caused by uneven tension or material loading, reducing edge scraping and maintenance interruptions. Available in 89–159 mm diameters for 400–2400 mm belt widths, it is suitable for mining, grain handling and cement conveying systems.

Product Definition & Pivoting Correction Working Principle

1. Structure

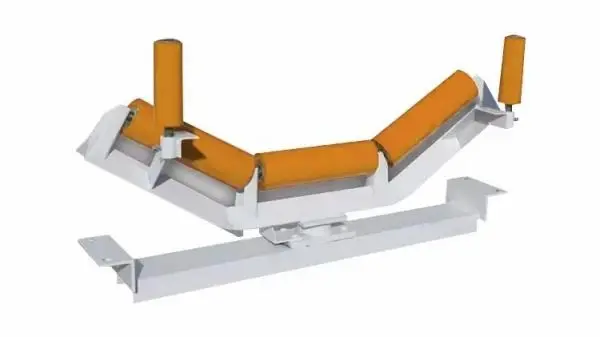

The YUFENG Self-Aligning Troughing Idler is a three-roller carrying assembly built on a freely rotatable central swing base. It consists of one horizontal central roller, two symmetric inclined wing rollers and side anti-off guide rollers. When the conveyor belt deviates because of uneven material loading, inconsistent belt tension or conveyor alignment changes, the belt edge contacts the guide roller and drives the idler frame to swing 5°–8°, generating a reverse corrective force that automatically guides the belt back toward the center.

YUFENG uses thickened Q235 seamless steel tubes, solid cold-drawn integral shafts, heavy-duty cast steel pivot seats and double-layer labyrinth composite seals. Each roller is fitted with low-friction double-sealed 6204/6305 bearings, with radial runout controlled below 0.5mm and static rotation resistance maintained at 1.4–2.4N. This structure provides stable, low-noise operation in dusty, humid and temperature-variable environments from -20℃ to +80℃.

2. Customized Self-Aligning Configurations

In addition to standard carbon steel models, YUFENG provides customized self-aligning idlers for different operating conditions, including rubber-lagged impact models for material feeding points, UHMWPE anti-corrosion models for salt fog and chemical environments, and high-temperature models for kiln ash conveying lines. All incoming raw materials undergo tensile strength and chemical composition inspection before production to ensure consistent manufacturing quality.

Verified Field Test Data

1. Seven-Month Continuous Tracking Test

YUFENG conducted a seven-month uninterrupted field test on a 1.2km grain conveying system to evaluate the actual tracking performance of the Troughing Idler under continuous operation. The test was carried out in an outdoor grain stockyard with variable wind conditions and temperatures ranging from -12℃ to +72℃. Each idler group handled loads of up to 2200kg during wheat, corn and rice conveying.

2. Core Performance Results

Correction Response: The idler responded to belt deviation within 0.8 seconds and continuously guided the belt toward the center without noticeable oscillation.

Belt Protection: Belt edge abrasion was reduced by 45%, extending the recorded belt replacement cycle from 12 months to 18 months.

Material Spillage: Under the same conveying volume, material leakage decreased from 3.1% with fixed trough idlers to 0.32% with YUFENG self-aligning idlers.

Sealing & Swing Durability: After 35 consecutive days of cyclic dust and water-spray aging tests, all test samples showed no bearing jamming or pivot shaft rust.

Full Range Product Classification & Standard Technical Parameter Table

1. Self Aligning Troughing Idler Series

YUFENG develops four core Self Aligning Troughing Idler series for different load conditions, conveyor layouts and operating environments. Customized dimensions and configurations are also available for special conveying systems.

Standard 3-Roll Self-Aligning Trough Idler: A general-purpose model for grain, sand and mining applications, available with 20°, 30°, 35° and 45° trough angles.

Impact Self-Aligning Trough Idler: Equipped with thick rubber-lagged rollers for material feeding points, helping absorb up to 72% of instantaneous impact force while maintaining automatic belt tracking.

Reversible Self-Aligning Trough Idler: Features a bidirectional swing pivot structure for reciprocating shuttle conveyors and port stockyard conveying systems.

UHMWPE Anti-Corrosion Self-Aligning Trough Idler: Uses a non-metallic polymer roller body with a stainless steel pivot shaft for chemical plants, coastal terminals and salt-fog environments.

2. Standard Technical Parameters

Real Global Industrial Customer Project Cases

1. Australia Large Grain Terminal Conveyor Project

Project Scale: 9km long cross-yard grain conveyor system, equipped with a 1000mm wide transport belt and designed conveying capacity of 1800 tons per hour.

Customer Challenge: The original fixed trough idlers could not effectively correct wind-induced belt deviation. Continuous belt wandering caused edge tearing and grain spillage, resulting in up to 32 hours of unplanned shutdown time every month.

YUFENG Solution: We supplied customized 35° self-aligning troughing idlers with reinforced swing pivot seats, providing continuous automatic belt correction under outdoor operating conditions.

After 16 months of continuous operation, the self-centering system maintained stable correction performance throughout the year, reducing monthly maintenance downtime by 70%.

Client Feedback: “The automatic tracking performance of YUFENG self-aligning idlers completely solves our long-standing belt wander problem, greatly reducing grain waste and maintenance labor costs.”

2. South Africa Open-Pit Chrome Ore Conveying Line

Working Conditions: The conveyor system operates across mountainous terrain with uneven slopes, heavy lump ore impact and high dust concentration throughout the year.

YUFENG Solution: We provided Impact Troughing Idlers equipped with thickened rubber-lagged rollers and reinforced pivot seats with dust protection structures.

After two years of continuous heavy-load operation, the idlers maintained stable automatic correction performance without correction failure, effectively improving conveyor belt alignment reliability and reducing maintenance requirements.

3. Domestic 4500 Tons Per Day Aggregate Quarry Production Line

Working Conditions: The production line handles highly abrasive stone aggregates with frequent material loading imbalance, causing serious belt deviation and accelerated belt edge wear.

YUFENG Solution: We supplied heavy-duty self-aligning troughing idlers to maintain continuous belt centering during long-distance aggregate transportation.

The optimized self-correction structure reduced belt deviation problems, lowered conveyor belt replacement frequency and improved the overall stability of the quarry conveying system.

Core Competitive Advantages vs Ordinary Fixed Trough Idlers

Applicable Industrial Scenarios with Detailed Application Explanation

1. Grain & Agriculture Industry

YUFENG Self Aligning Troughing Idler is widely used in large grain storage terminals, rice and corn processing plants, and outdoor grain stockyard conveying systems. For long-distance grain transportation affected by wind interference and uneven material loading, the self-centering structure continuously corrects belt deviation, reducing grain spillage and improving conveying stability.

2. Mining Industry

In open-pit coal mines, chrome ore mines, iron ore projects and aggregate quarries, long-span conveyor systems often face belt wandering caused by uneven loading, terrain changes and heavy material impact. YUFENG self-aligning troughing idlers provide automatic tracking performance to maintain stable belt alignment and reduce edge wear, tearing risks and unexpected downtime.

3. Thermal Power Plants

Thermal power plants require reliable conveyor operation for long-distance coal feeding and limestone desulfurization material transportation. YUFENG self aligning troughing idlers help maintain conveyor belt positioning during continuous operation, improving system reliability and reducing maintenance frequency caused by belt deviation.

4. Building Material Industry

For cement plants, sand and stone aggregate production lines and other heavy material handling applications, uneven material distribution can easily cause conveyor belt offset. YUFENG self-aligning idler systems automatically adjust belt running position, ensuring smoother transportation of abrasive bulk materials.

5. Ports & Bulk Cargo Wharves

Coastal ports and bulk cargo terminals often operate under strong wind conditions and complex loading environments. YUFENG self-aligning troughing idlers are suitable for grain, ore and bulk cargo unloading systems, providing stable belt tracking performance during long-distance conveying operations.

6. Chemical & Salt Production Industry

For chemical plants and coastal salt production environments exposed to acid, alkali and salt fog corrosion, YUFENG provides UHMWPE anti-corrosion self aligning troughing idlers with corrosion-resistant materials and customized structures to ensure long-term stable operation in harsh environments.

Factory Professional Strength & Authorized Global Qualifications

1. Advanced Manufacturing Capability & Production Capacity

YUFENG owns a standardized 21,000 square meter automatic production workshop equipped with more than 55 sets of CNC precision processing equipment. With a monthly production capacity of 85,000 sets of conveyor idlers and over 15 years of manufacturing experience focusing on conveyor rollers and tracking correction components, YUFENG provides reliable self-aligning idler solutions for global industrial customers.

2. International Certifications & Project Qualification Support

All YUFENG Self Aligning Troughing Idler products pass ISO9001 international quality management system certification, MT/T 821 mining safety standard requirements and CE export compliance verification. Complete third-party factory audit reports and tracking performance test reports can be provided to support customer project approval, supplier qualification review and quality evaluation.

3. Strict Quality Control & Performance Verification

YUFENG operates an independent quality inspection laboratory and implements strict quality control throughout the entire manufacturing process. Inspection procedures include raw material mechanical strength inspection, semi-finished pivot swing smoothness testing, finished product continuous deviation correction fatigue testing, sealing dust and water spray aging simulation testing, and final export packaging inspection to ensure stable product performance before shipment.

4. Customized Engineering Support & Global Service

YUFENG supports free CAD engineering drawing supply, 7-day fast sample delivery for small test orders and 16–20 days production cycles for customized self-aligning idler orders. Our technical team provides global remote after-sales guidance and on-site conveyor layout matching services for large overseas conveyor projects.

FAQ

1. Q: Where should the self-aligning troughing idler be installed on conveyor lines?

A: It is recommended to install one set every 15–30 meters on the carrying side of long-distance conveyors, and add extra sets at transfer points, uphill/downhill sections and wind-exposed outdoor segments to enhance correction efficiency. 35° trough angle is the universal standard for most mining and grain transport projects; 20° fits light-load agricultural material conveying, while 45° deep-trough model is for high-capacity bulk transport. We can adjust the bracket swing angle completely according to your conveyor design drawing.

2. Q: Can you supply anti-corrosion self aligning troughing idlers for coastal salt yards and chemical plants?

A: Absolutely. We provide three anti-corrosion matching solutions: UHMWPE non-metal polymer self-aligning idlers, thick rubber-coated anti-rust steel idlers and customized stainless steel pivot shaft idlers, which can adapt to long-term acid, alkali and salt fog corrosive working environments.

3. Q: What are your minimum order quantity and standard delivery time?

A: The sample trial order MOQ is 1 piece; bulk formal order MOQ is 100 sets. Standard stock conventional self-aligning idler specifications can be delivered within 7 working days, while customized non-standard self-aligning troughing idler requires 16–20 days of production period.

4. Q: Do your self-centering trough idlers conform to international industrial design standards?

A: All finished products fully comply with CEMA, ISO, MT/T 821 and DIN global conveyor industrial standards, complete official tracking performance test reports are attached for cross-border export customs clearance.
