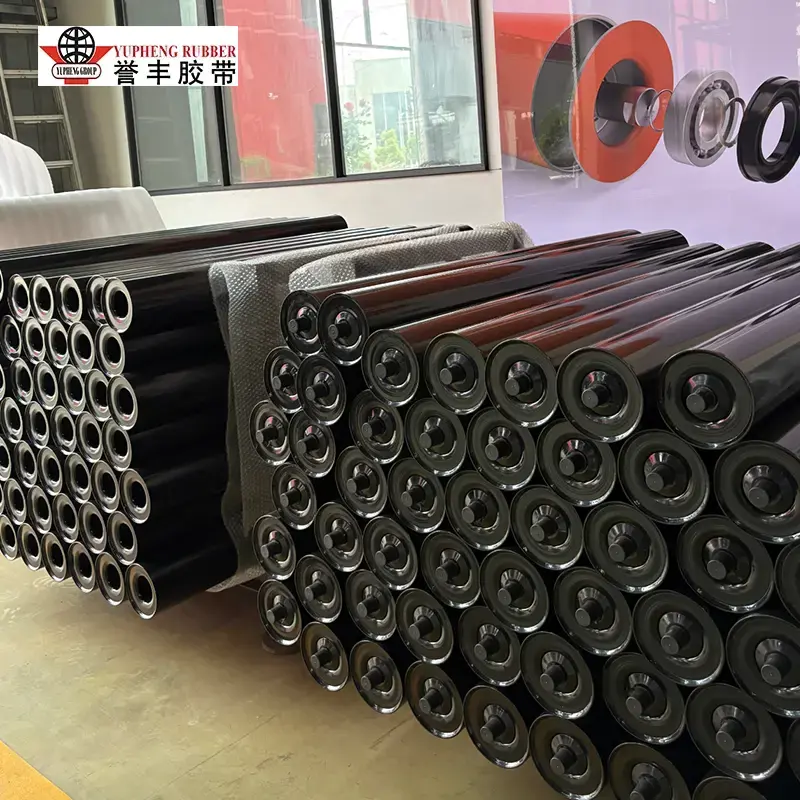

Troughing Idler Roller

With 15 years of conveyor roller manufacturing experience, YUFENG supplies troughing idlers in 89–159 mm diameters for 400–2400 mm belt widths. Each Troughing Idler Roller undergoes rotation, impact, corrosion and sealing tests to ensure reliable performance. The integrated trough design helps reduce material spillage and uneven belt-edge wear, with CAD drawings, sample testing and technical support available.

Product Definition & Complete Manufacturing Process

1. Troughing Idler Structure & Function

A troughing idler assembly consists of three individual rollers mounted on an integrated stamping bracket: one horizontal center roller and two symmetrical inclined side rollers. Together, they form a stable concave carrying trough that supports the conveyor belt and helps keep bulk materials centered during transportation.

YUFENG selects high-quality Q235 seamless thick-wall steel tubes for the roller body, solid carbon steel shafts, reinforced cold-stamped brackets and multi-layer labyrinth double oil seals. Automated CNC cutting, gas-shielded welding and electrostatic high-temperature anti-rust coating are used throughout the manufacturing process to improve dimensional accuracy, structural strength and corrosion resistance.

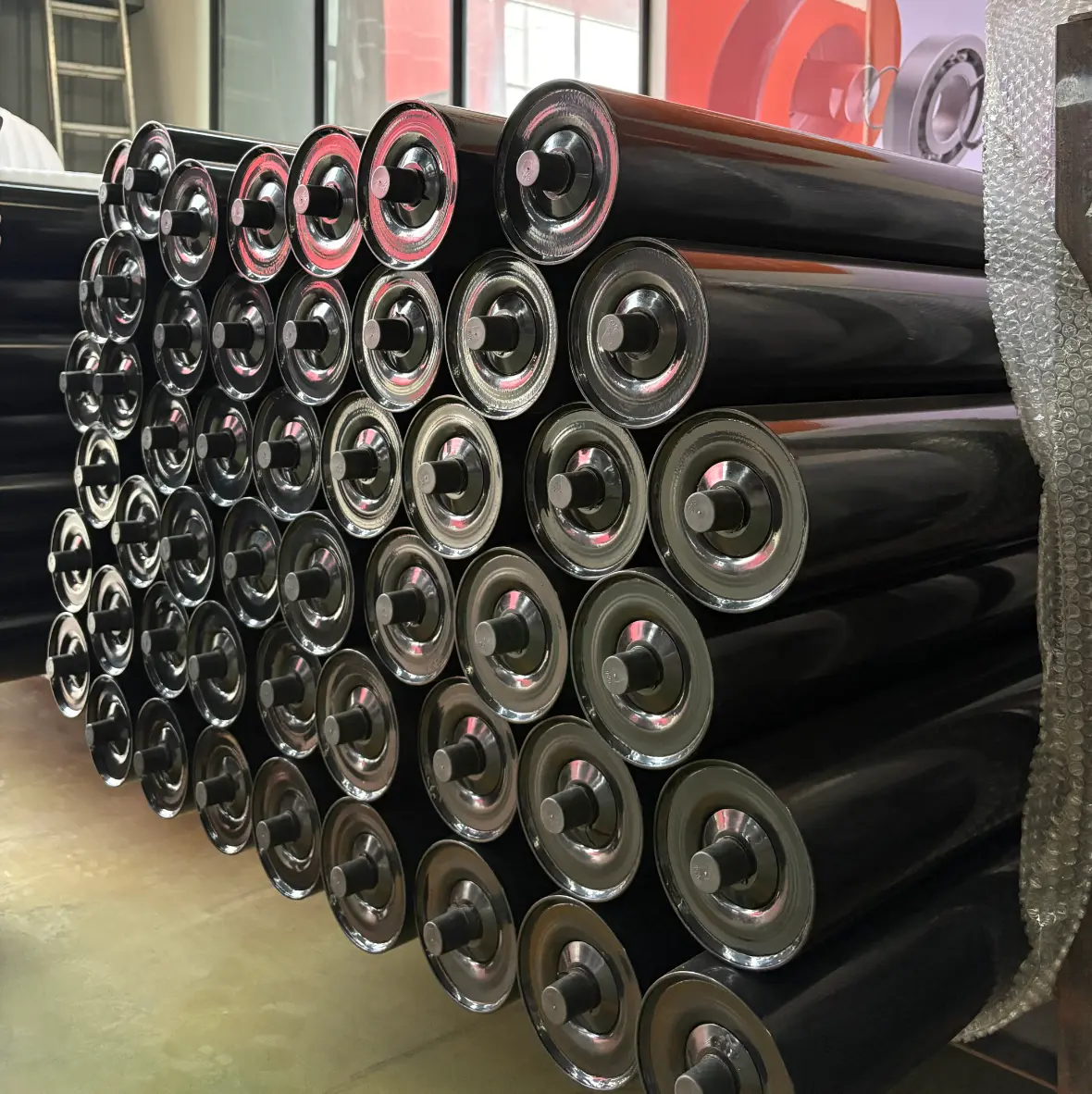

2. Reinforced Roller Construction for Heavy-Duty Conveying

Many low-cost generic idlers use thin-wall tubes around 2.0–2.5 mm thick, which can deform under prolonged heavy loads and contribute to belt misalignment, material spillage and bearing failure. YUFENG uses 3.5 mm thick seamless steel tubes for reinforced roller construction, combined with high-precision 6204, 6205 and 6306 series double-sealed bearings according to the required load.

Radial runout is controlled within 0.5 mm, while static rotation resistance is maintained at approximately 1.5–2.5 N. This precision helps the roller achieve stable rotation, low friction and reduced operating noise in demanding environments with high dust, humidity, mineral slurry or mild acid and alkali exposure.

3. Specialized Materials for Different Working Conditions

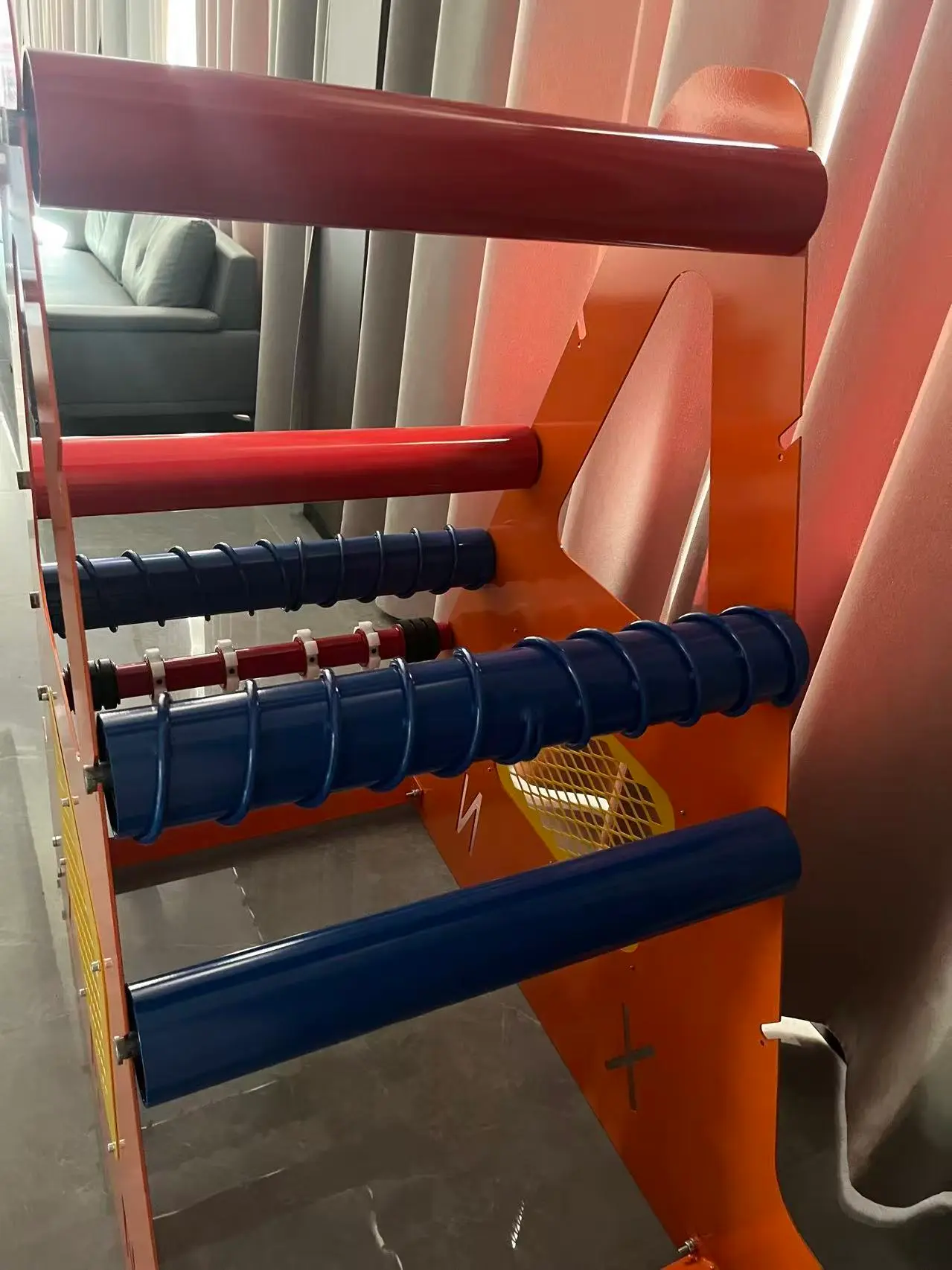

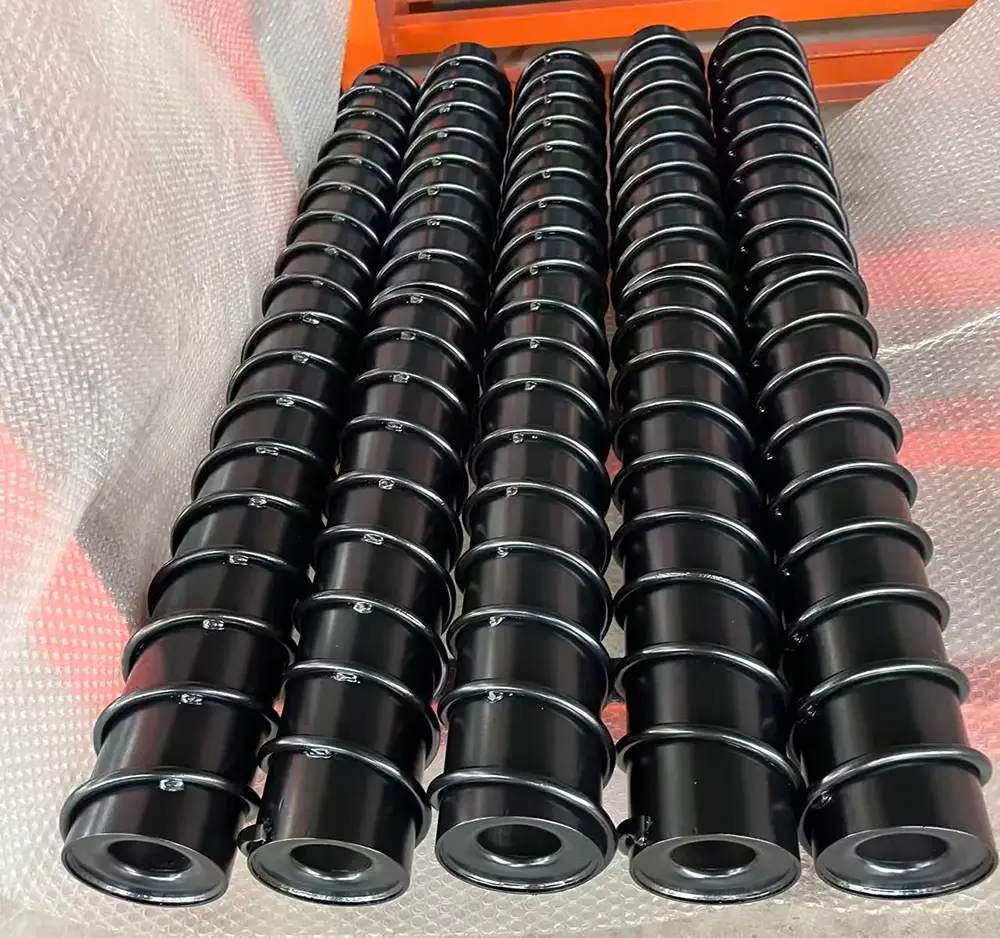

In addition to standard steel troughing idlers, YUFENG maintains dedicated production capabilities for specialized roller configurations. Available options include rubber-lagged wear-resistant rollers, UHMWPE anti-corrosion rollers and stainless-steel shaft configurations.

These options allow customers to select suitable roller materials and structures according to abrasive materials, corrosive environments, moisture exposure and other operating conditions. Before production, incoming raw materials undergo chemical composition and mechanical strength inspection to help ensure consistent material quality from the beginning of the manufacturing process.

Authentic Long-Term Field Test Data

1. Six-Month Underground Coal Mine Field Test

YUFENG arranged a six-month uninterrupted field operation test for its Troughing Idler Roller in an underground coal mine. The test focused on long-term running stability, sealing performance, belt protection and material containment under demanding conveying conditions.

Test Environment: Underground coal mine roadway with dust concentration of ≥1,200 mg/m³, ambient temperature ranging from -10°C to +65°C, and 24-hour continuous conveying operation.

Load Condition: Each roller group supported a maximum load of up to 2,800 kg while conveying raw coal, gangue and mixed bulk materials.

2. Verified Service Life Performance

During the field test, the YUFENG troughing idler accumulated 32,600 stable operating hours. Based on the recorded comparison data, this represents approximately 3–5 times the operating life of ordinary thin-wall idlers used under similar conditions.

3. Sealing & Bearing Protection

After 30 consecutive days of cyclic dust exposure and high-pressure water spraying, the tested rollers showed no bearing jamming and no internal lubricant leakage. The multi-layer labyrinth sealing structure helped protect the bearing assembly from dust and water intrusion.

4. Conveyor Belt Protection

The standard troughing structure provides stable belt support and helps reduce excessive edge friction between the conveyor belt and rollers. During the field test, the optimized roller configuration was associated with an approximately 40% extension in the conveyor belt replacement cycle compared with the previous operating condition.

5. Material Spillage Control

The 35° trough angle helps form a deeper carrying profile and keeps fine bulk materials more effectively within the conveyor belt. Under the same conveying volume, the measured material spillage rate was approximately 0.48%, compared with 3.2% for parallel flat idler configurations.

These field results provide practical reference data for customers evaluating troughing idlers for underground mining, bulk material handling and other continuous heavy-duty conveying applications.

Full Range Product Classification & Standard Technical Parameters

1. Standard 3-Roll Troughing Idler

The Standard 3-Roll Troughing Idler is the universal configuration for mining, cement, grain and other bulk material conveying systems. It consists of one center roller and two inclined side rollers to form a stable carrying trough. Standard trough angles include 20°, 30°, 35° and 45°, allowing the structure to be matched to different material characteristics and conveyor designs.

2. Impact Buffer Troughing Idler

The Impact Buffer Troughing Idler is designed for conveyor loading and feeding points where falling materials generate high instantaneous impact. Its rollers use thick rubber lagging to absorb impact energy and reduce direct shock transferred to the conveyor belt and roller structure. Under suitable operating conditions, the rubber-buffered design can absorb up to 70% of instantaneous impact force from falling bulk materials.

3. Automatic Self-Aligning Troughing Idler

The Automatic Self-Aligning Troughing Idler incorporates a deviation-correction support structure to help guide the conveyor belt back toward its normal running position. It is suitable for conveying systems where belt deviation may cause edge abrasion, belt damage or material spillage, helping improve long-term conveyor stability and reduce manual adjustment requirements.

4. UHMWPE Anti-Corrosion Troughing Idler

The UHMWPE Anti-Corrosion Troughing Idler uses a non-metallic polymer roller body designed for corrosive operating environments. Its corrosion-resistant construction makes it suitable for chemical plants, salt yards, sewage treatment facilities and other applications exposed to acid, alkali, salt mist or moisture. The lightweight roller structure can also help reduce rotational resistance and maintenance requirements.

5. Standard Technical Parameter Range

YUFENG can further customize roller diameter, tube thickness, shaft size, bearing configuration, sealing structure, trough angle and bracket dimensions according to belt width, conveying capacity, material characteristics and actual working conditions.

Real Global Customer Project Cases

YUFENG conveyor rollers have been exported to more than 32 countries and regions, supporting large-scale mining, port, cement and bulk material conveying projects. Our rollers are selected according to actual working conditions such as load, belt width, conveying environment, corrosion exposure and material characteristics.

1. Mongolia Open-Pit Coal Mining Project

Project Scale: 12 km cross-mountain coal conveyor system with a 1200 mm wide heavy-duty belt and a designed conveying capacity of 2,000 tons per hour.

Customer Challenge: The previously used low-cost imported idlers experienced failures within approximately 6,000 operating hours. Frequent shutdowns resulted in production losses and increased spare-parts costs.

YUFENG Solution: We supplied customized 35° reinforced sealing rollers featuring a thickened tube wall and enhanced labyrinth sealing structure. The design was optimized for heavy loads, outdoor operation and high-dust mining conditions.

Verified Result: After 18 months of continuous outdoor operation, the rollers required no replacement and recorded no reported failures. Monthly maintenance labor costs were reduced by approximately 65%.

Customer Feedback: “The idlers maintain stable running status under heavy dust open-air mining conditions, with much more competitive overall cost performance than European imported brands.”

2. Southeast Asia Coastal Ore Unloading Terminal

Working Conditions: The conveyor system operates outdoors throughout the year, with continuous ship unloading and stockyard transfer under severe coastal salt-fog exposure.

YUFENG Solution: We supplied UHMWPE anti-corrosion troughing idler rollers with stainless steel internal shafts and corrosion-resistant components. The roller structure was selected to reduce corrosion-related bearing problems and extend service reliability in marine environments.

Verified Result: After two years of continuous operation, the customer reported no visible shaft rusting or bearing blockage, supporting stable operation in the high-salt, high-humidity environment.

3. Domestic 5,000 Tons/Day Cement Clinker Production Line

Working Conditions: The cement production line handles high-temperature kiln ash and highly abrasive aggregate raw materials, creating significant impact and wear loads on the conveyor system.

YUFENG Solution: We supplied rubber-lagged impact troughing idlers designed to absorb impact at loading areas while reducing direct contact between sharp materials and the conveyor belt.

Verified Result: The optimized impact roller configuration reduced belt surface damage and helped extend the service cycle of the complete conveying system under high-abrasion cement production conditions.

YUFENG can provide available project photos, technical specifications and application references for customer evaluation. For large overseas conveying projects, our engineering team can also recommend suitable roller structures according to belt width, loading capacity, conveying angle and operating environment.

Core Competitive Advantages vs Ordinary Market Idlers

Applicable Industrial Scenarios

1. Mining Industry

YUFENG conveyor idlers are suitable for open-pit coal mines and underground mining operations involving iron ore, gold ore, bauxite and other bulk raw materials. They are designed to support long-distance conveying systems and demanding working conditions where stable rotation, load-bearing capacity and reliable sealing are essential.

2. Thermal Power Generation Plants

For thermal power plants, YUFENG conveyor idlers can be used in coal feeding systems, limestone conveying for flue gas desulfurization and boiler ash or slag transportation. The suitable roller structure helps maintain stable belt support during continuous material handling and heavy-duty operation.

3. Building Materials Industry

YUFENG rollers are applicable to large cement plants, sand and stone quarries and gravel processing lines. Their robust construction is suitable for conveying abrasive bulk materials such as aggregates, crushed stone and cement raw materials, helping maintain reliable conveyor operation.

4. Ports & Bulk Cargo Terminals

At ports and bulk cargo terminals, YUFENG conveyor idlers can be installed on conveying systems used for coal, iron ore, grain and chemical bulk materials. They support ship loading and unloading equipment, stockyard conveyors and other continuous material handling systems.

5. Chemical & Salt Production

For chemical and salt production environments exposed to acid, alkali or salt mist, YUFENG can provide anti-corrosion UHMWPE trough idlers. Their corrosion-resistant construction helps reduce roller deterioration and supports stable operation in chemically demanding production areas.

6. Grain Processing Industry

Smooth, low-wear and food-grade roller options are available for wheat, corn, rice and other agricultural bulk material conveying systems. These rollers are suitable for grain storage, processing and transportation applications where clean operation and reliable material handling are important.

Factory Professional Strength & Qualifications

1. Standardized Manufacturing Capability

YUFENG operates a standardized 20,000 m² automatic production workshop equipped with more than 50 sets of CNC precision processing equipment. With a monthly production capacity of up to 80,000 sets of conveyor idlers and 15 years of focused manufacturing experience, we provide stable production capacity for both standard and customized roller requirements.

2. Quality Management & Certifications

YUFENG maintains a complete quality management system covering raw material inspection, production process control and finished-product testing. Our roller products are manufactured under ISO 9001 quality management requirements, with applicable MT/T 821 and CE compliance support for relevant markets. Third-party factory audit reports and product performance test reports can be provided when required.

3. Five-Stage Quality Control

Our QC process covers five key stages: raw material incoming inspection, semi-finished welding strength testing, finished roller rotation resistance testing, sealing and aging simulation testing, and final packaging inspection before shipment. This process helps ensure consistent roller performance, reliable sealing and stable operation in demanding conveyor systems.

4. Engineering Support & Fast Delivery

YUFENG supports free CAD engineering drawings, 7-day sample delivery for small trial orders and a typical 15–20 day production cycle for customized bulk orders. For overseas industrial projects, we also provide remote technical guidance and on-site matching support for large-scale conveyor systems.

FAQ

1. Q: Which trough angle of troughing idler roller should I choose for my conveyor system?

A: 35° is the most universal standard angle suitable for most mining and cement industrial projects. 20° light-angle type fits light-load grain and agricultural material transportation, while 45° deep-trough model is designed for high-capacity bulk conveying to minimize material overflow. We can adjust the bracket inclination angle completely according to your conveyor design drawing.

2. Q: Can you supply anti-corrosion trough idlers for salt yards and chemical production plants?

A: Absolutely. We provide three anti-corrosion solutions: UHMWPE non-metal polymer idlers, rubber-coated wear-resistant anti-rust steel idlers and customized stainless steel internal shaft idlers, which can adapt to long-term acid, alkali and salt fog corrosive working environments.

3. Q: What are your minimum order quantity and standard delivery time?

A: The sample trial order MOQ is 1 piece; bulk formal order MOQ is 100 sets. Standard stock conventional specifications can be delivered within 7 working days, while customized non-standard troughing idler roller requires 15–20 days of production period.

4. Q: Do your trough idlers conform to international industrial design standards?

A: All finished products fully comply with CEMA, ISO, MT/T 821 and DIN global industrial standards, complete official test reports are attached for cross-border export customs clearance.
